Check Valve: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

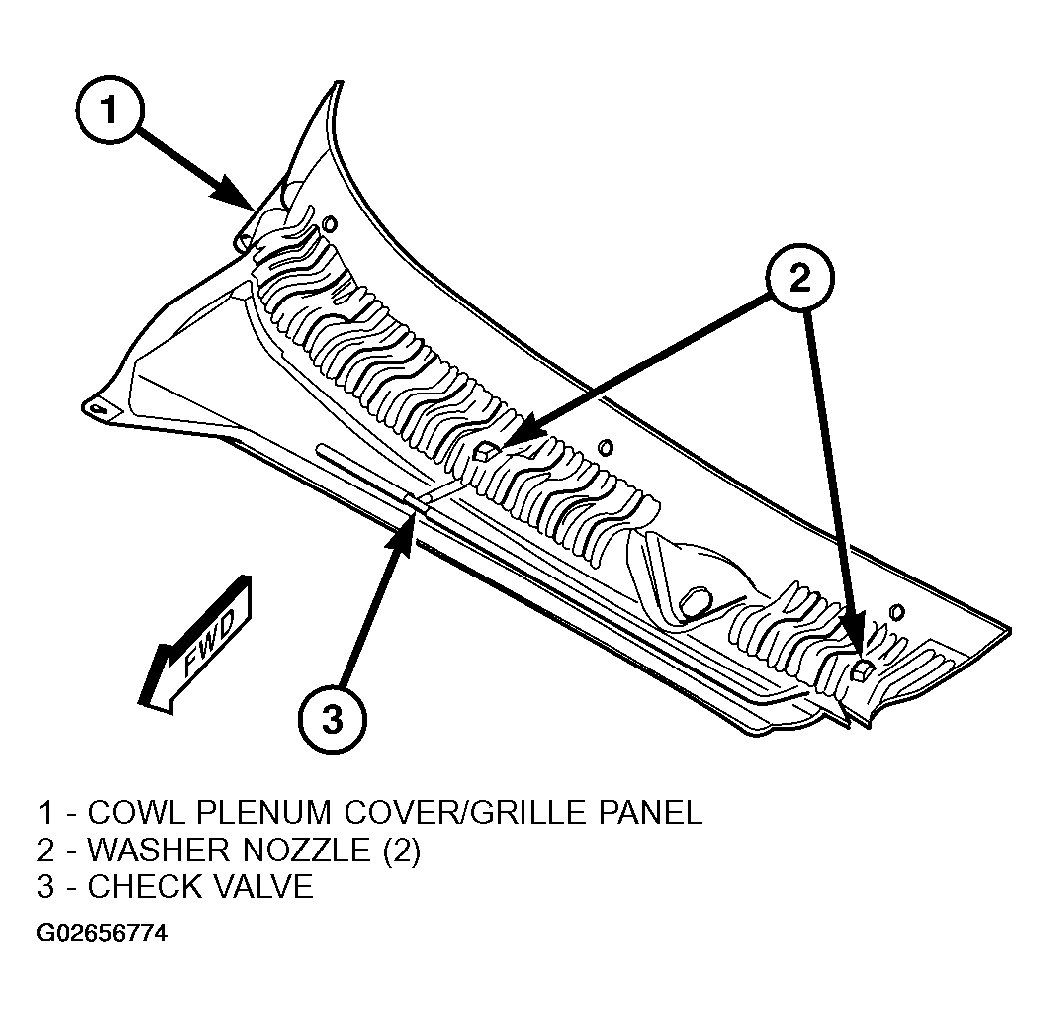

  1. Position the Wye fitting/check valve unit to the underside of the cowl plenum cover/grille panel (Figure ).
  2. From the underside of the cowl plenum cover/grille panel, reconnect the three washer hoses to the barbed nipples of the Wye fitting/check valve unit.
  3. Reinstall the washer hoses for the washer nozzles into their locating clips on the underside of the cowl plenum cover/grille panel.
  4. Reinstall the cowl plenum cover/grille panel onto the top of the cowl plenum panel. (Refer to COWL GRILLE ).
  5. Reinstall the wiper arms onto the wiper pivots. (Refer to WIPER ARM  ).
