Section 49 (Speed Control): Servo: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable at battery.
Disconnect vacuum hose (line) at servo (Fig 1 ).

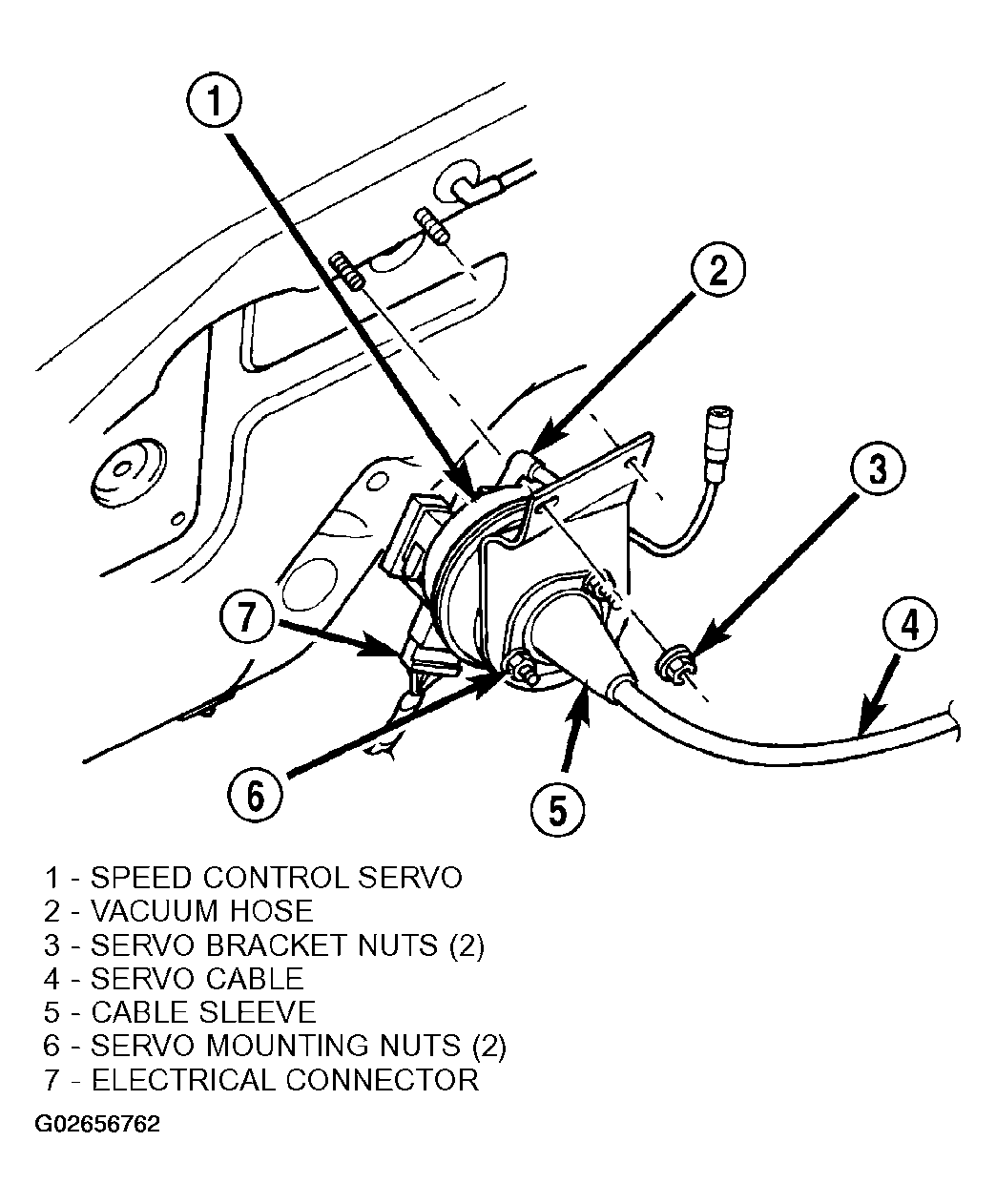

Fig 1: Locating Speed Control Servo
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect electrical connector at servo.
Disconnect servo cable at throttle body. Refer to CABLE .
Remove 2 mounting nuts holding servo cable sleeve to bracket (Fig 1 ) or (Fig 2 ).

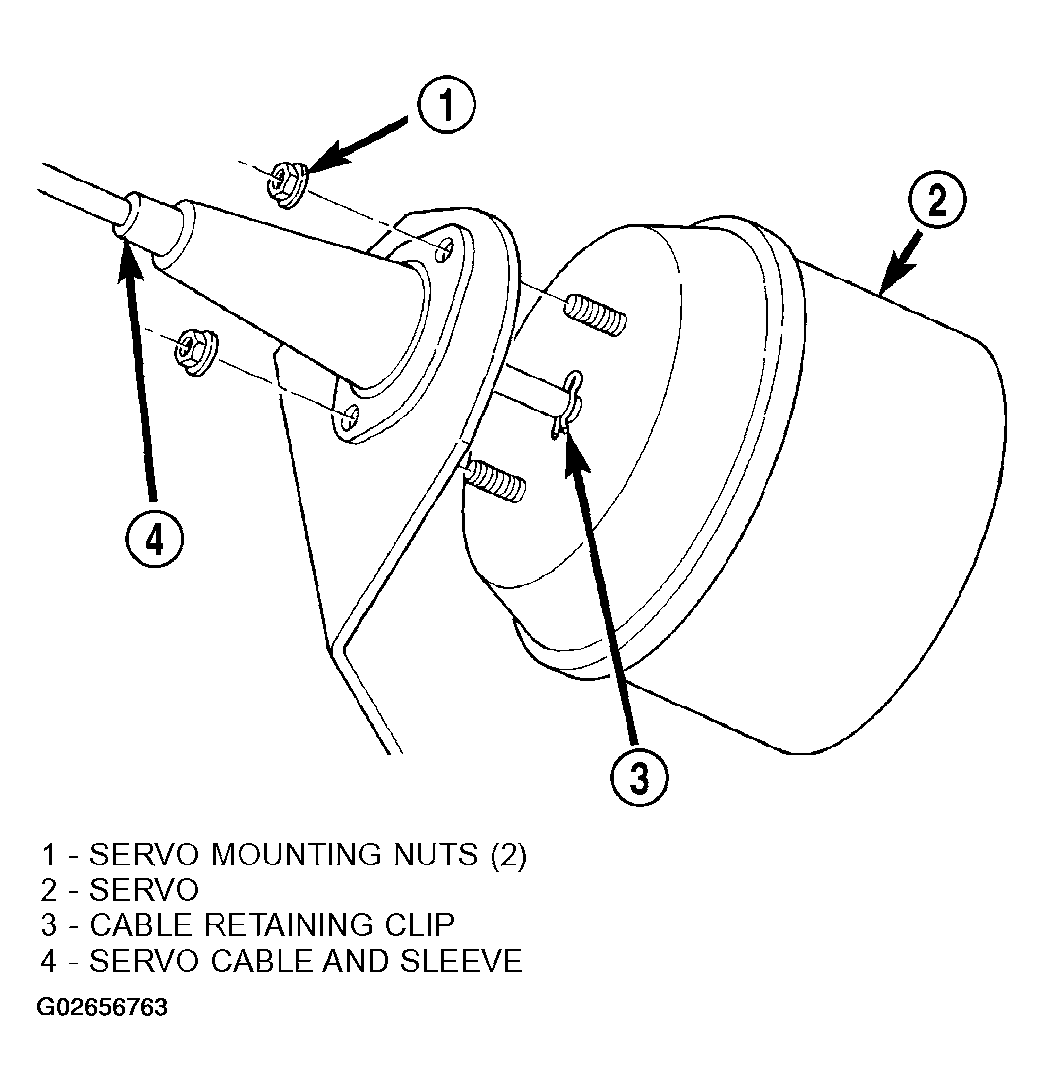

Fig 2: Removing/Installing Servo Cable Clip
Courtesy of DAIMLERCHRYSLER CORP.
Pull speed control cable sleeve and servo away from servo mounting bracket to expose cable retaining clip (Fig 2 ) and remove clip. Note: The servo mounting bracket displayed in (Fig 2 ) is a typical bracket and may/may not be applicable to this model vehicle.
Remove servo from mounting bracket. While removing, note orientation of servo to bracket.
