Removal- Except 4.7L

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable at battery.
  2. Using finger pressure only, remove speed control cable connector at throttle body bellcrank by pushing connector off the bellcrank pin (Fig 1 ). DO NOT try to pull connector off perpendicular to the bellcrank pin. Connector will be broken.

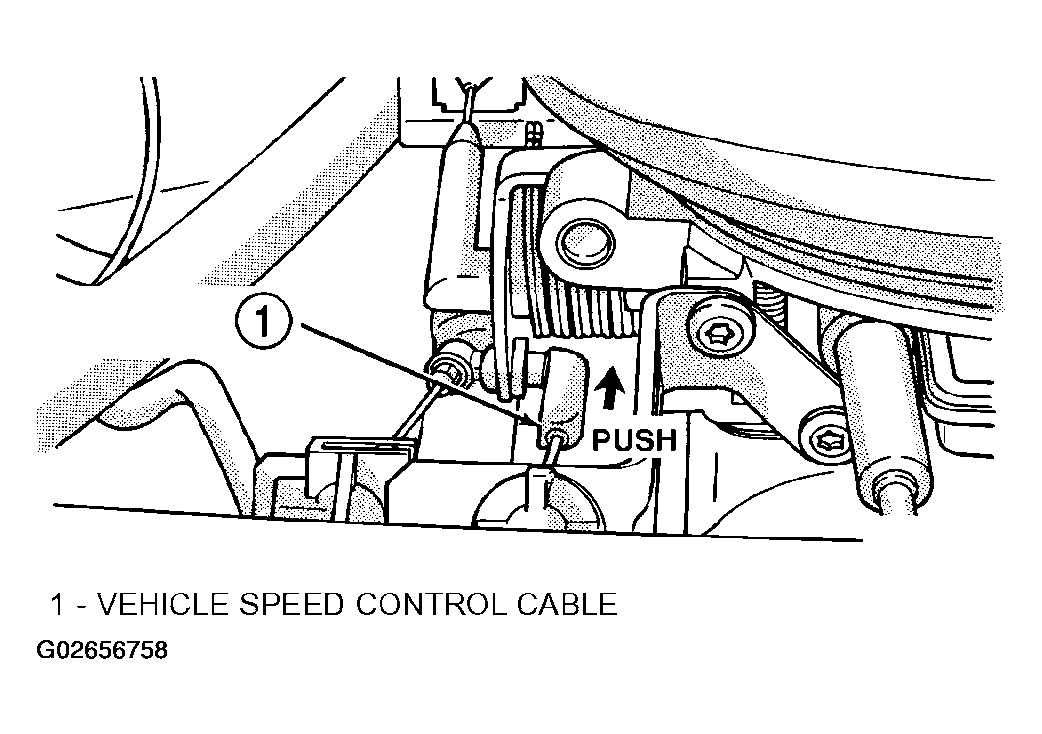

    Fig 1: Removing Vehicle Speed Control Cable From Throttle Body (3.9L/5.2L/5.9L Engines)
    G02656758Courtesy of DAIMLERCHRYSLER CORP.
  3. Squeeze 2 tabs on sides of speed control cable at throttle body mounting bracket (locking plate) and push out of bracket.
  4. Remove servo cable from servo. Refer to SERVO  .
