Door Cylinder Lock Switch: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

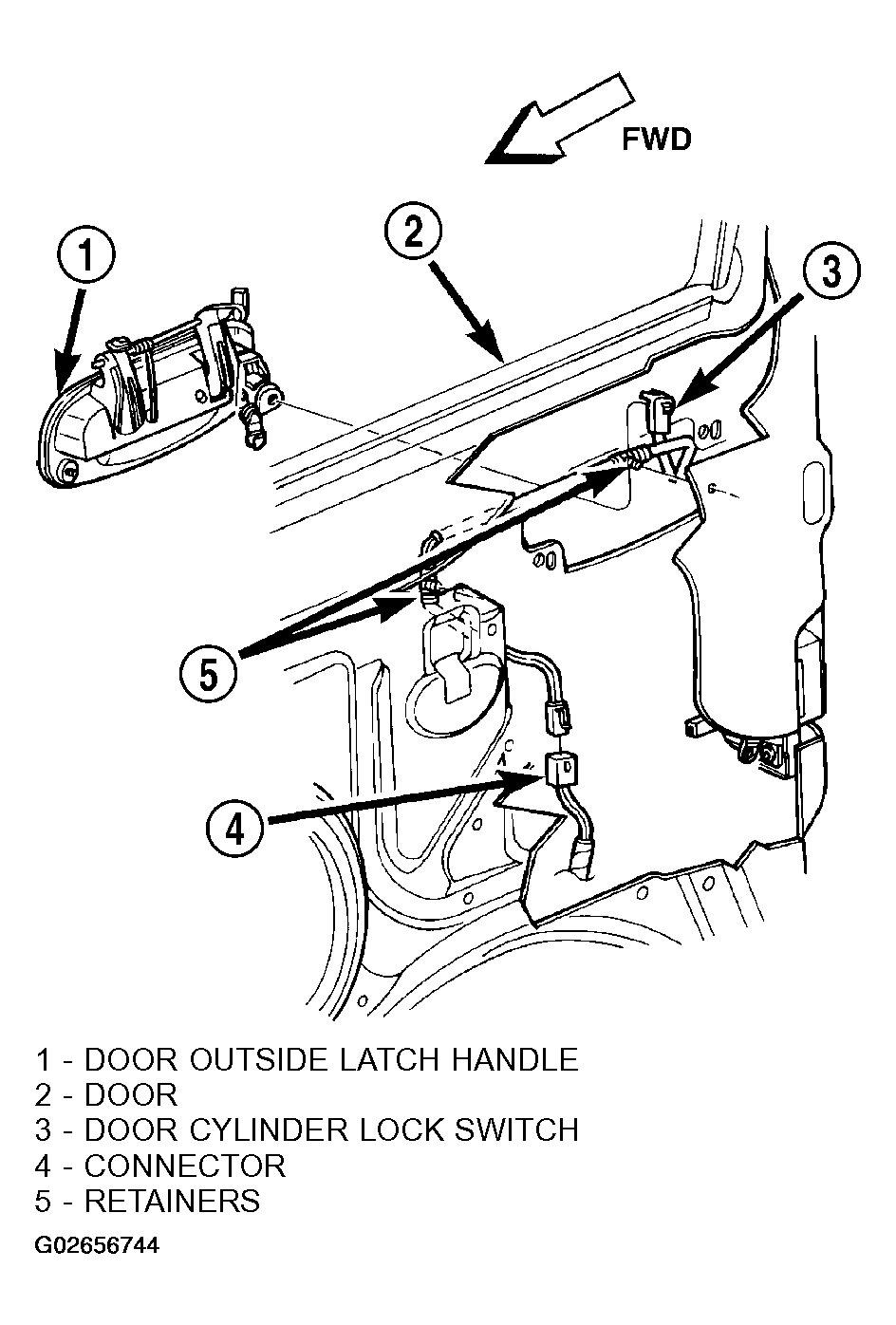

  1. Position the door cylinder lock switch into the door (Figure ).
  2. Engage the retainers that secure the door cylinder lock switch pigtail wire harness to the inner door panel.
  3. Reconnect the door cylinder lock switch pigtail wire connector to the door wire harness connector.
  4. Reinstall the door cylinder lock switch onto the back of the lock cylinder.
  5. Reinstall the door outside latch handle mounting hardware and linkage on the inside of the door. (Refer to EXTERIOR HANDLE ).
  6. Reconnect the battery negative cable.
