Removal-Overhead Console Bracket

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the overhead console from the overhead console bracket. Refer to REMOVAL-OVERHEAD CONSOLE  .
  3. Remove the headliner from the roof panel. Refer to HEADLINER .
  4. Remove the two screws that secure the front of the overhead console bracket to the roof front header (Fig 1 ).

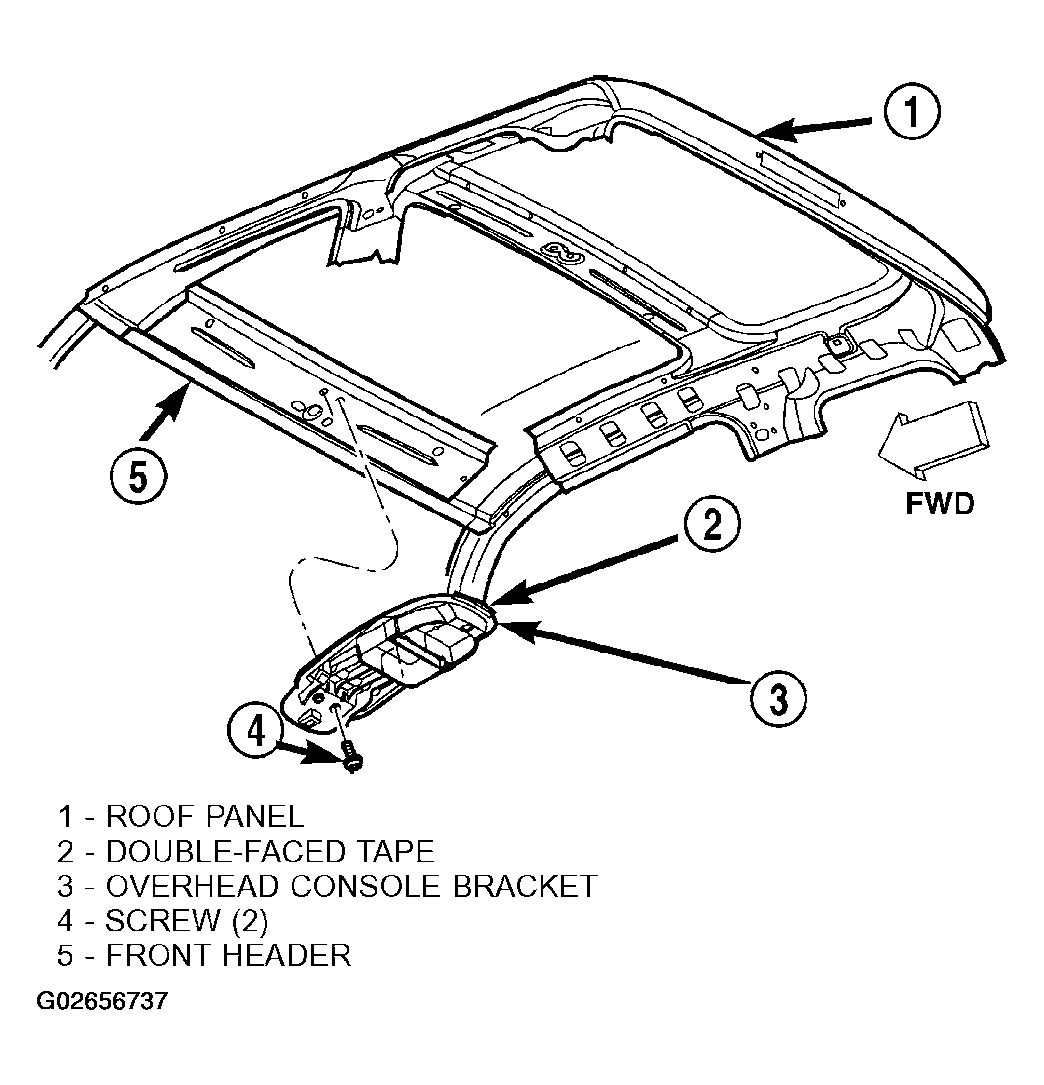

    Fig 1: Overhead Console Bracket Remove/Install
    G02656737Courtesy of DAIMLERCHRYSLER CORP.
  5. Using a sharp utility knife, cut through the double-faced tape that secures the rear flange of the overhead console bracket to the roof panel.
  6. Remove the overhead console bracket from the roof panel.
