Dome Lamp: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Using a small flat blade, pry the left side (driver's side) of the dome lamp lens downward from dome lamp.
  3. Allow the lens to hang down (Fig 1 ), this will disengage the right side of the lamp (passenger's side) from the headliner.

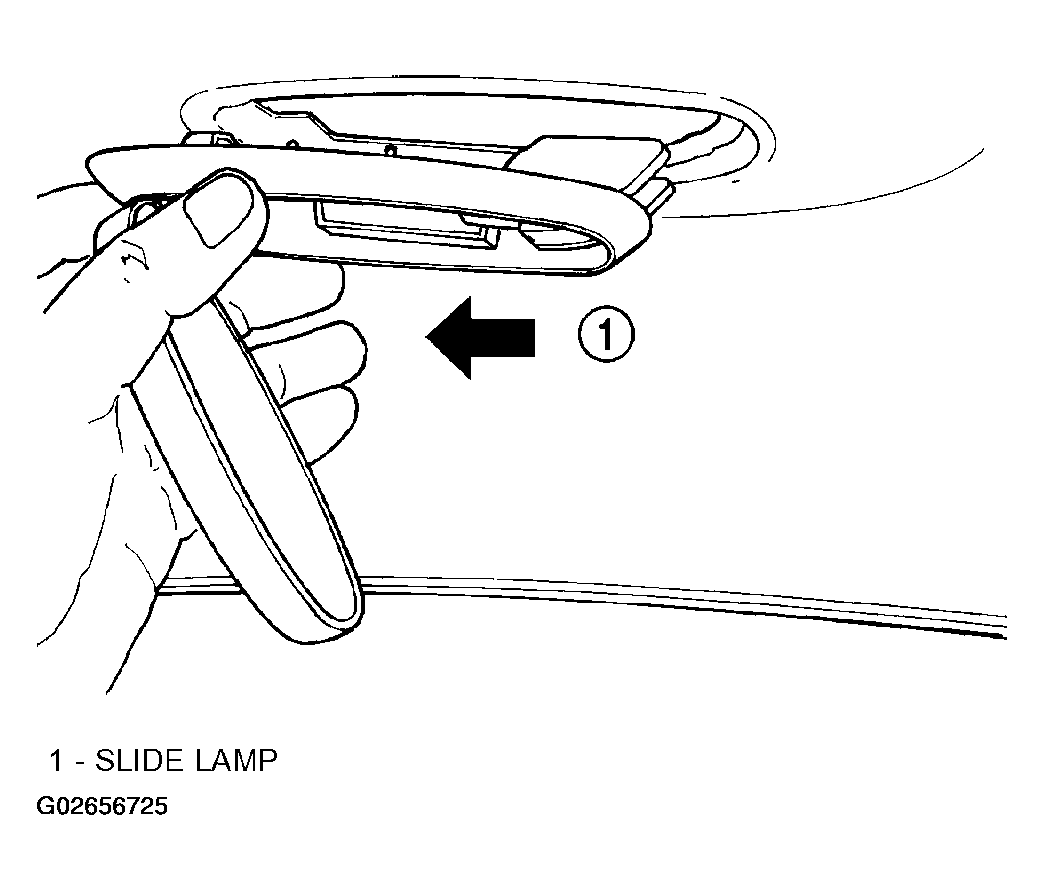

    Fig 1: Disengaging Right Side Of Lamp
    G02656725Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull the right side of the lamp down and slide the lamp to the right (Fig 2 ).

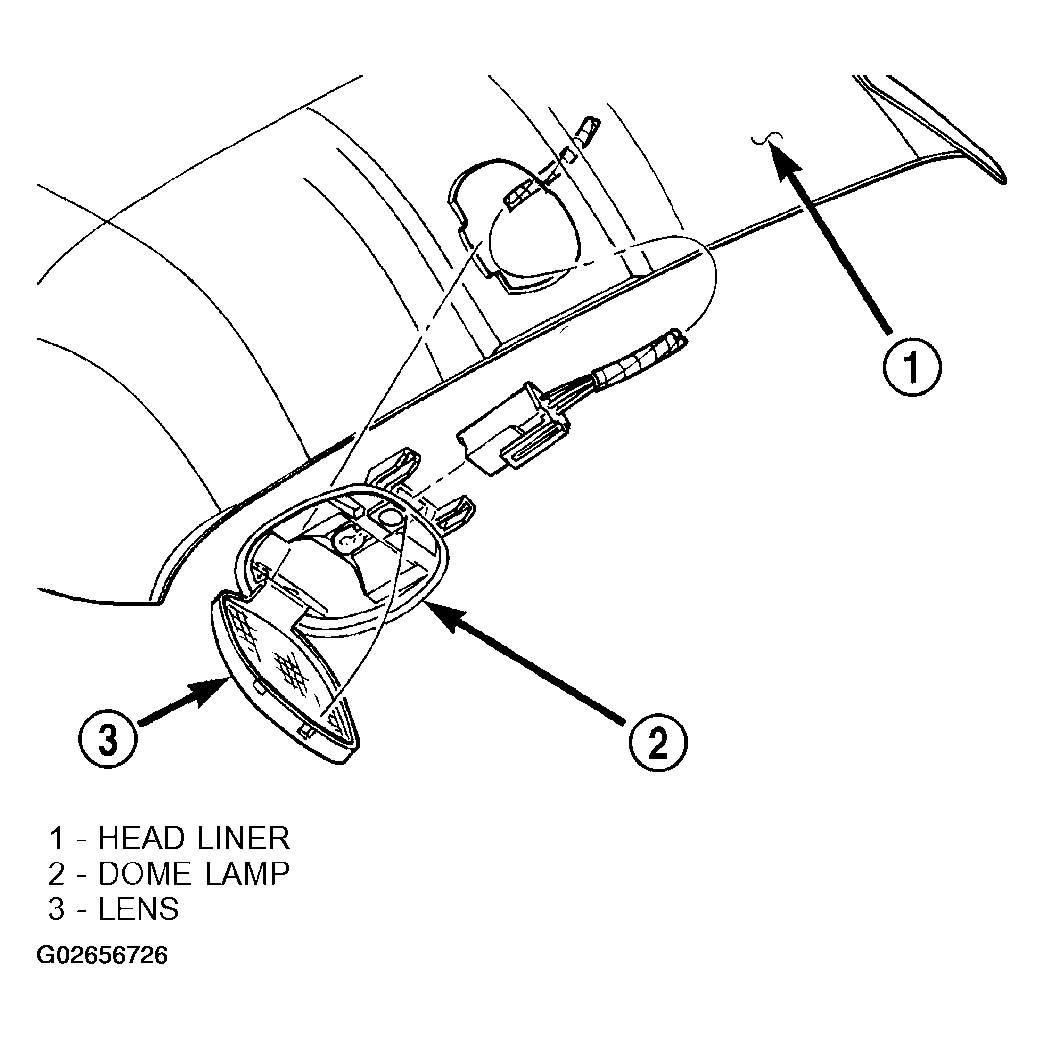

    Fig 2: Removing Dome Lamp Lens
    G02656726Courtesy of DAIMLERCHRYSLER CORP.
  5. Separate the lamp from the headliner.
  6. Disengage dome lamp wire connector from body wire harness.
  7. Separate dome lamp from vehicle.
