WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

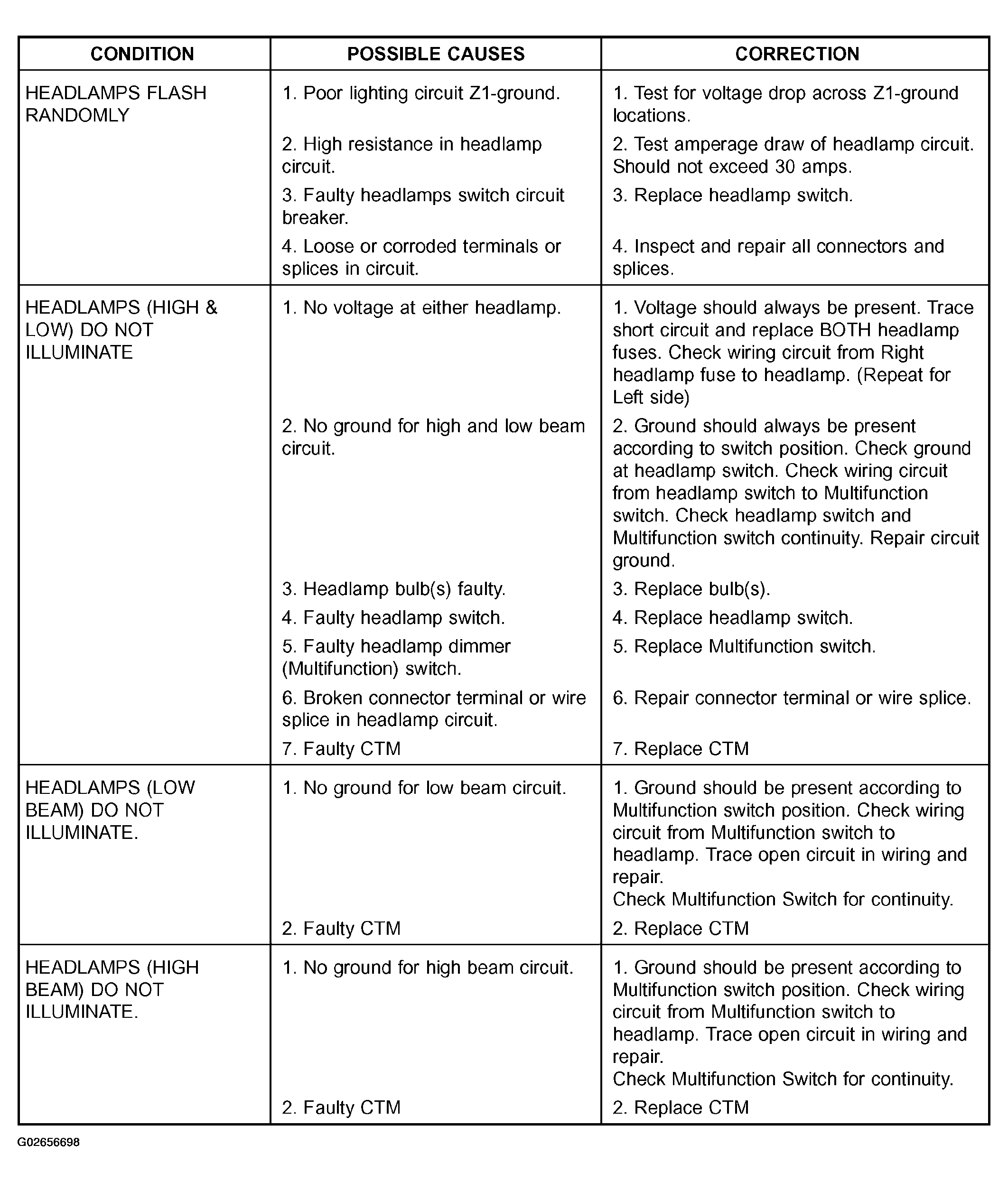

Fig 1: Exterior Lamps Diagnosis - Headlamps (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

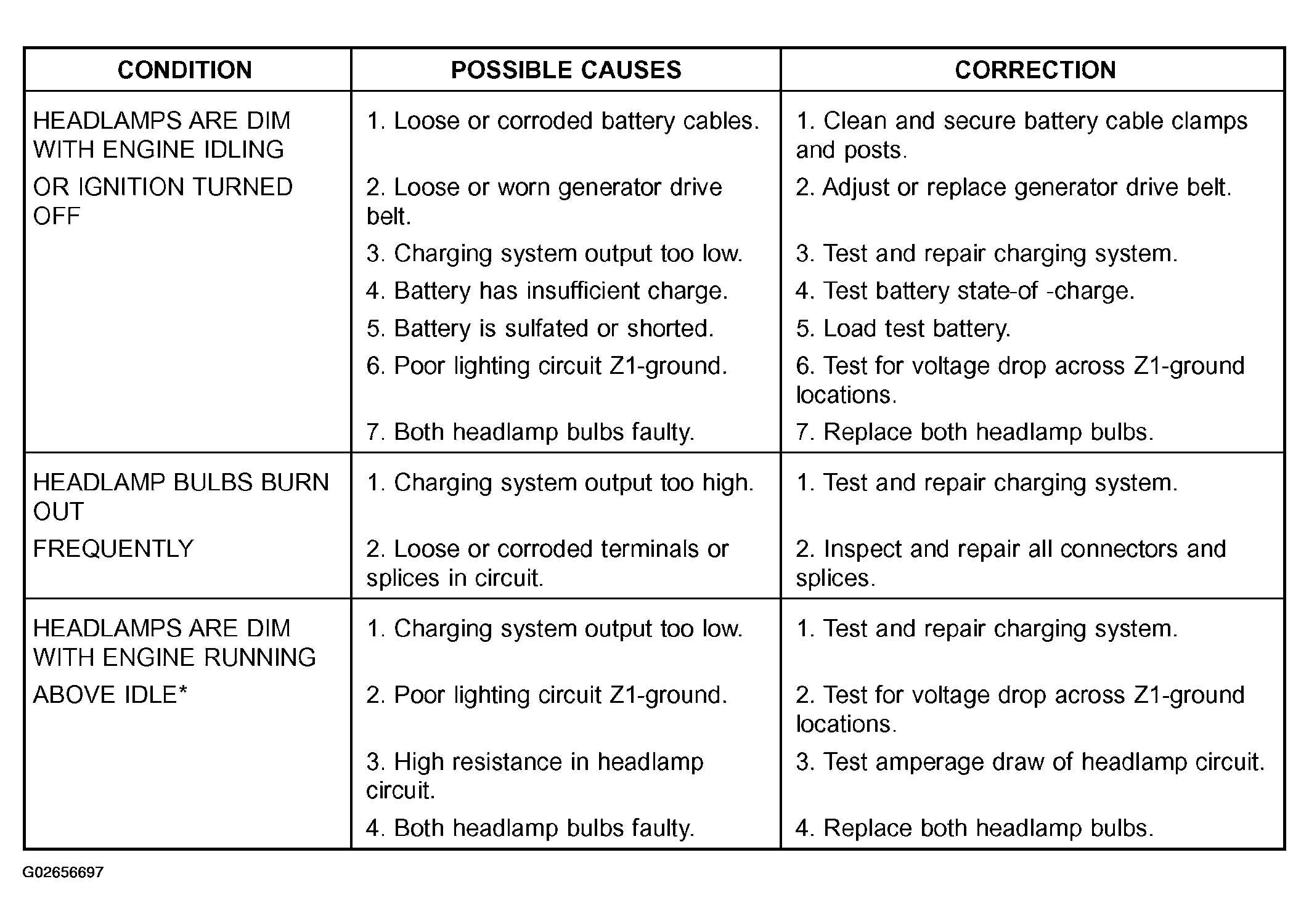

Fig 2: Exterior Lamps Diagnosis - Headlamps (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

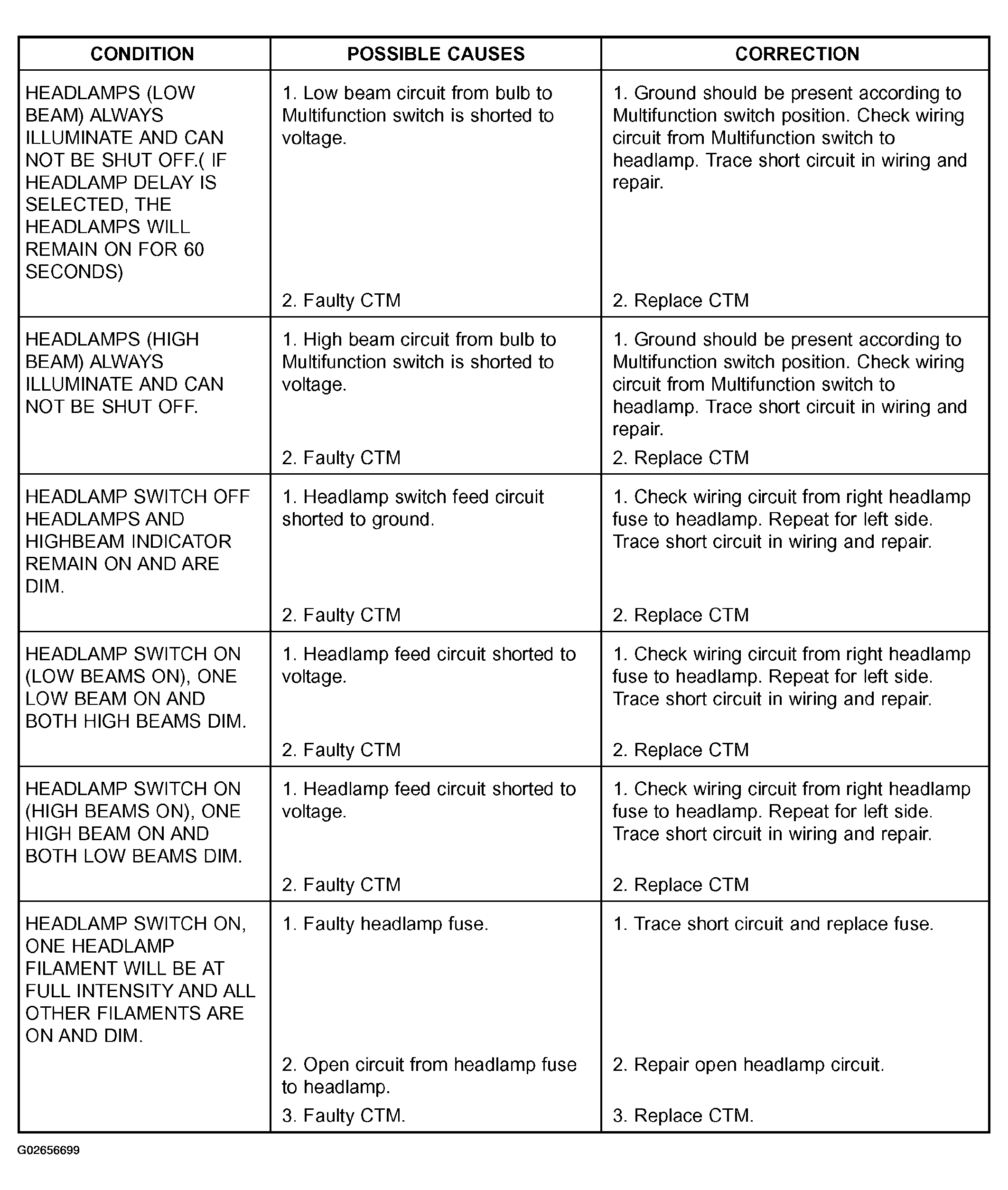

Fig 3: Exterior Lamps Diagnosis - Headlamps (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORP.

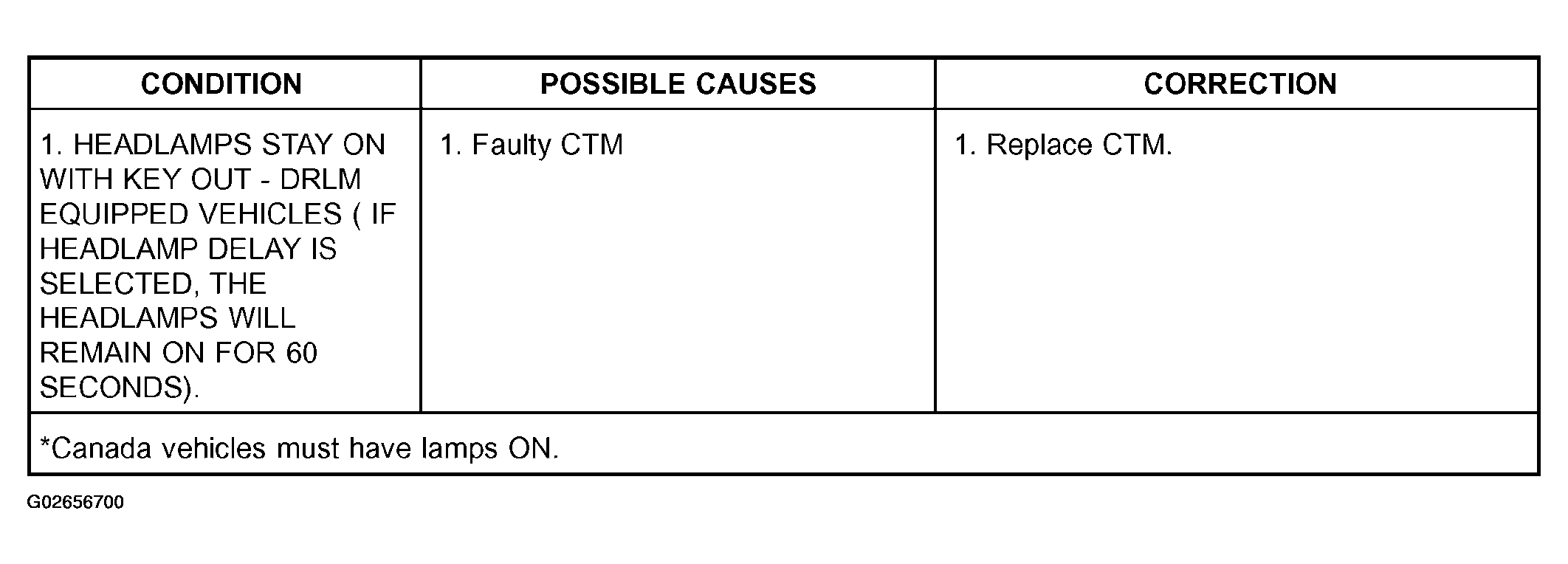

Fig 4: Exterior Lamps Diagnosis - Headlamps (4 Of 4)
