Instrument Cluster: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, DRIVER AIRBAG, PASSENGER AIRBAG, SEAT BELT TENSIONER, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the cluster bezel from the instrument panel. (Refer to CLUSTER BEZEL ).
  3. Remove the four screws that secure the instrument cluster to the instrument panel structural support (Fig 1 ).

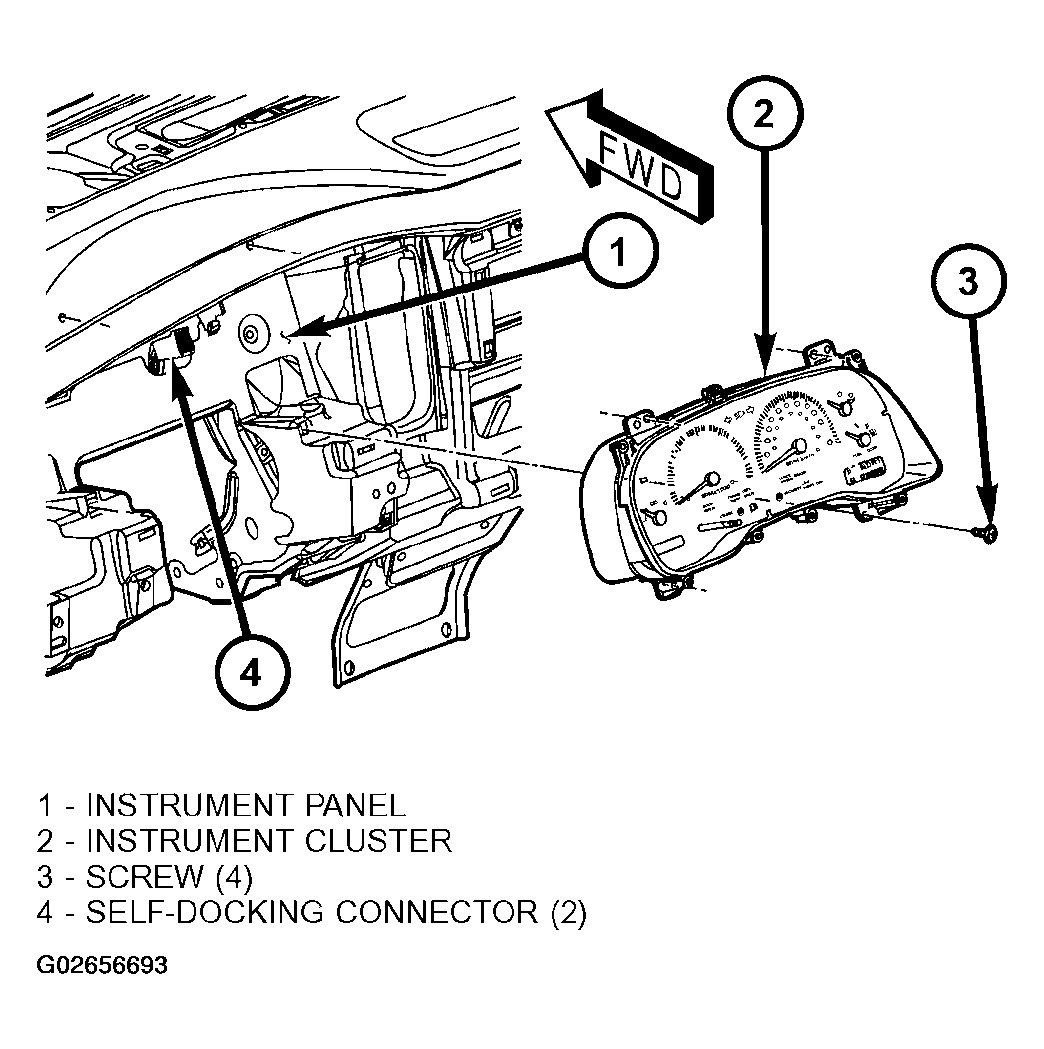

    Fig 1: Removing And Installing Instrument Cluster
    G02656693Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull the instrument cluster rearward far enough to disengage the two self-docking instrument panel wire harness connectors for the cluster from the cluster connector receptacles on the back of the cluster housing.
  5. Roll the bottom of the instrument cluster upward and rearward to remove it from the instrument panel.
