Cluster Lens And Hood

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not touch the face of the gauge overlay or the back of the cluster lens with your finger. It will leave a permanent finger print.

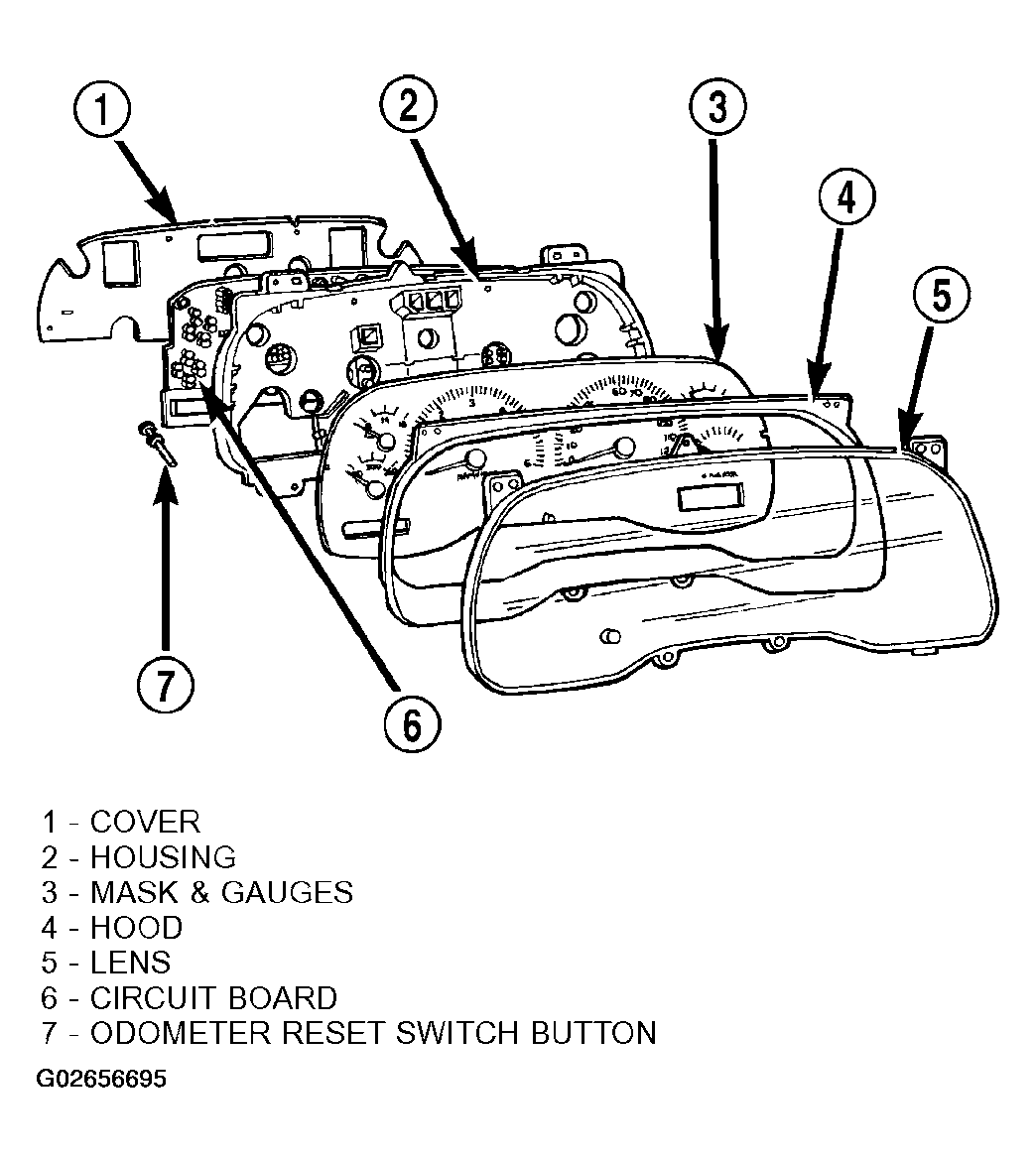

  1. Align the cluster lens and hood unit with the cluster housing. Be certain that the odometer/trip odometer switch button is installed through the clearance hole in the lens (Figure ).
  2. Install and tighten the seven screws around the outer perimeter of the cluster that secure the lens and hood unit to the cluster housing. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Reinstall the instrument cluster onto the instrument panel. (Refer to INSTALLATION  ).
  4. Reconnect the battery negative cable.
