Battery Tray: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery from the battery tray (Refer to BATTERY  ).
  2. Remove the Power Distribution Center (PDC) from the stanchions on the rear of the battery tray (Refer to POWER DISTRIBUTION CENTER ).
  3. Remove the two screws that secure the inboard side of the battery tray to the battery tray support (Fig 1 ).

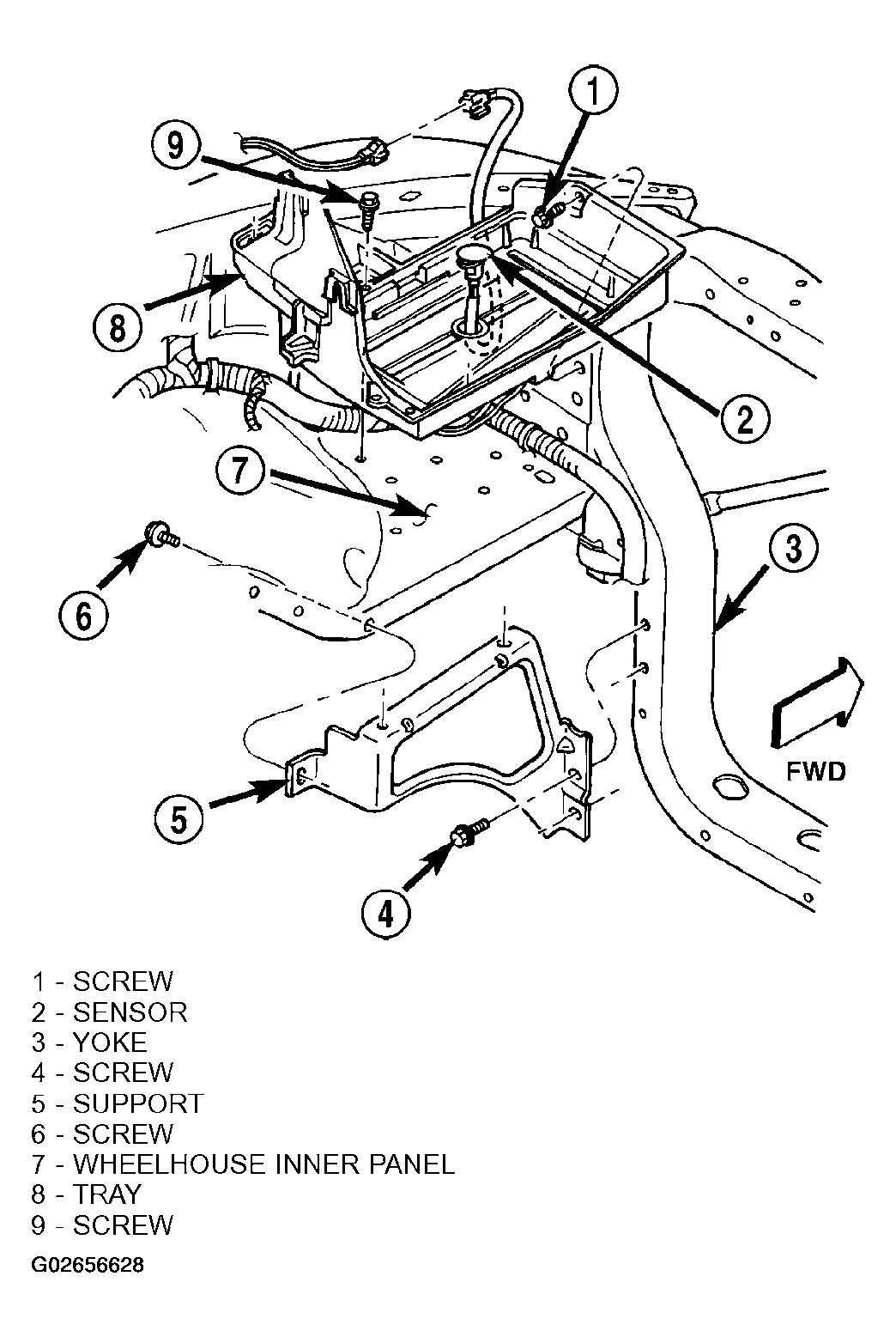

    Fig 1: Removing/Installing Battery Tray
    G02656628Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the two screws that secure the outboard side of the battery tray to the front extension of the left front wheelhouse inner panel.
  5. Remove the one screw that secures the front of the battery tray to the front closure panel on the left side of the radiator yoke.
  6. Remove the battery temperature sensor from the battery tray.
  7. Remove the battery tray from the battery tray support and the front extension of the left front wheelhouse inner panel.
  8. Remove the one screw that secures the rear of the battery tray support to the front extension of the left front wheelhouse inner panel.
  9. Remove the two screws that secure the front of the battery tray support to the left side of the radiator yoke.
  10. Remove the battery tray support from the left front wheelhouse inner panel and the left side of the radiator yoke.
