Rear Door Speaker

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the rear door. (Refer to TRIM PANEL ).
  3. Remove the screws that secure the speaker to the rear door (Fig 1 ).

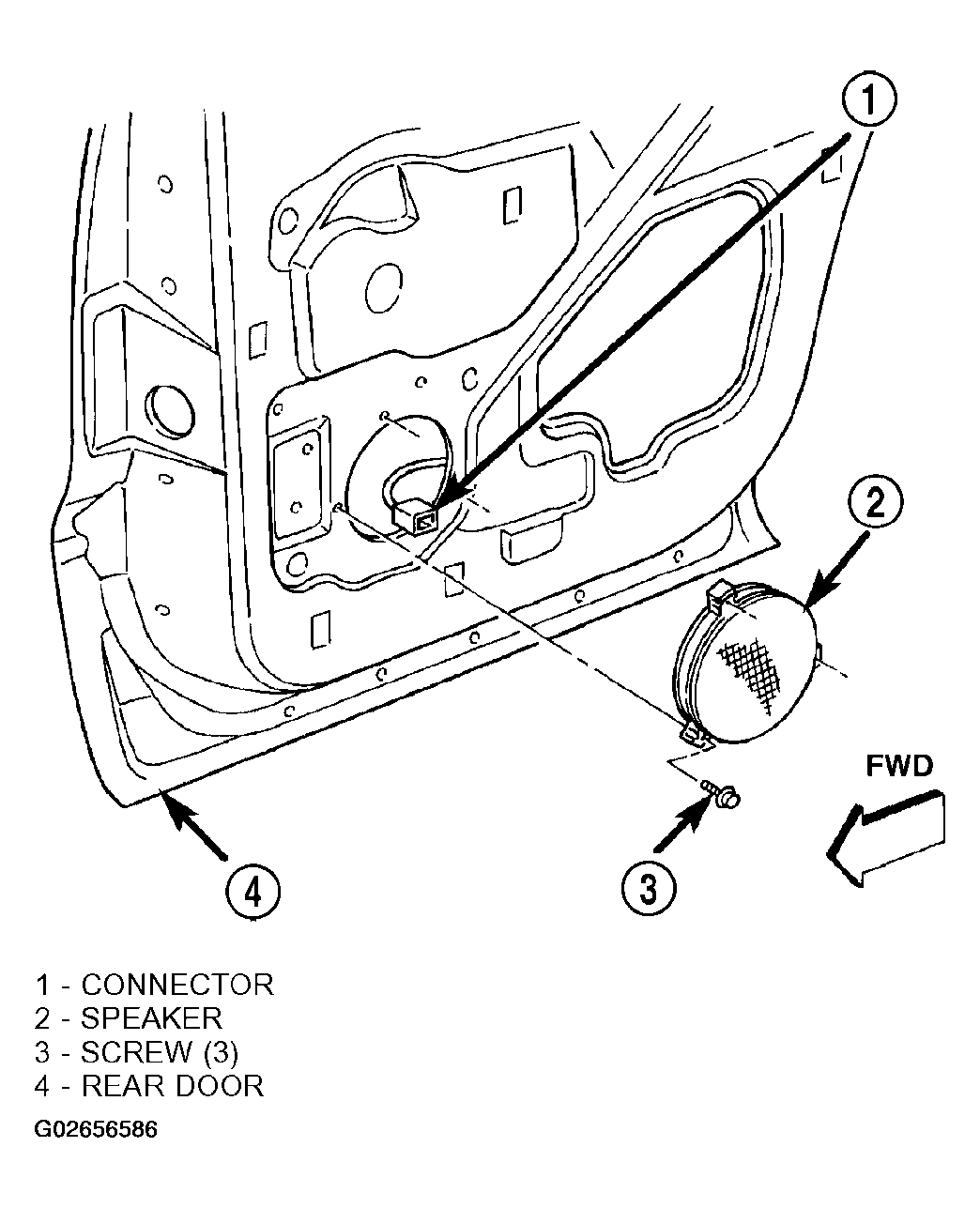

    Fig 1: Removing Screws That Secure Speaker To Rear Door
    G02656586Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull the speaker away from the mounting hole in the rear door far enough to access the wire harness connector.
  5. Disconnect the rear door wire harness connector from the speaker.
  6. Remove the speaker from the rear door.
