Rear Cab Side Speaker-Regular Cab

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the B-pillar. (Refer to B-PILLAR TRIM ).
  3. Pull the B-pillar trim away from the cab side panel far enough to access the speaker wire harness connector (Fig 1 ).

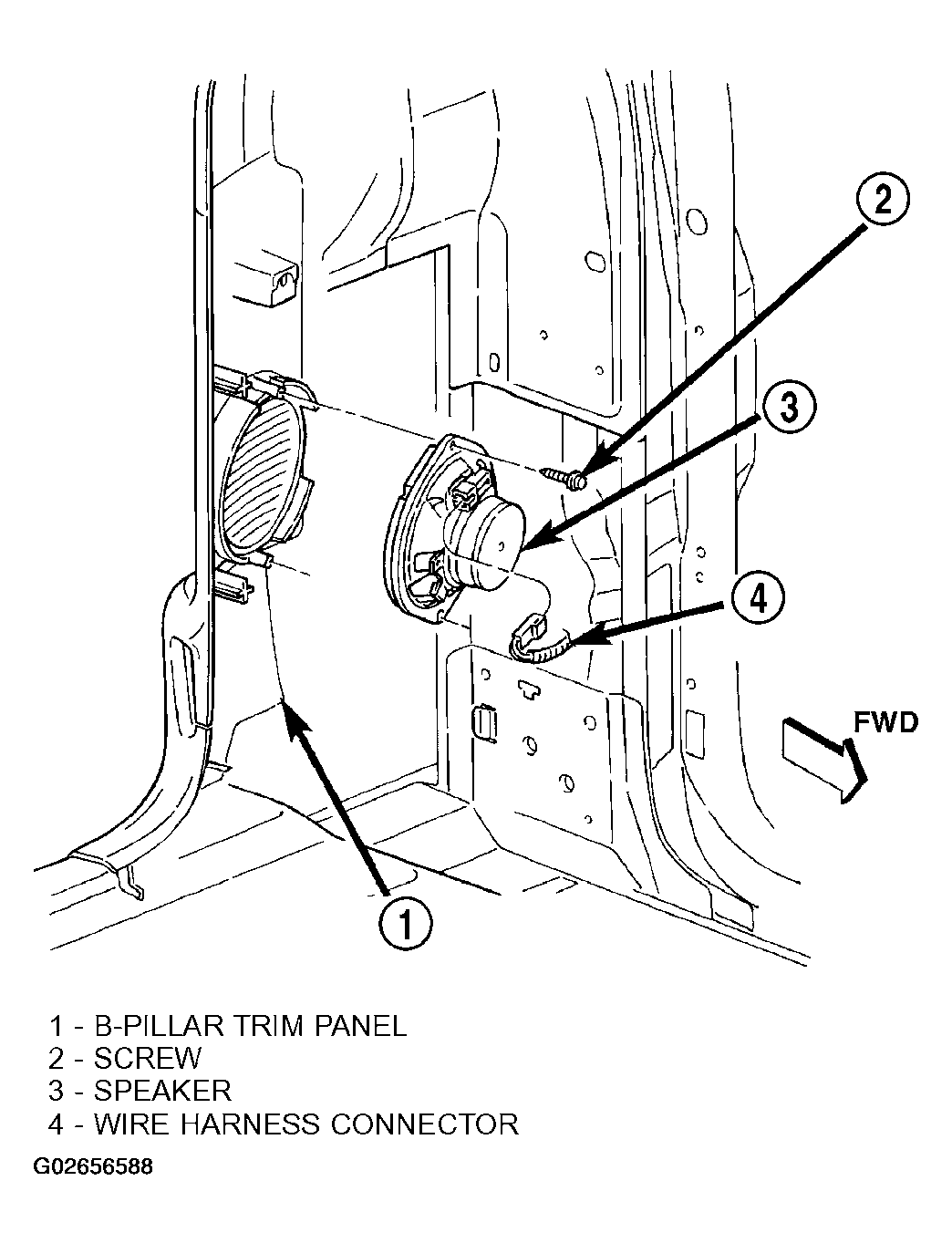

    Fig 1: Rear Cab Side Panel Speaker - Club Cab
    G02656588Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the body wire harness connector from the speaker connector receptacle.
  5. Remove the two screws that secure the speaker to the back of the B-pillar trim.
  6. Remove the speaker from the back of the B-pillar trim.
