Front Door Lower Speaker

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the front door. (Refer to TRIM PANEL ).
  3. Remove the screws that secure the speaker to the front door (Fig 1 ).

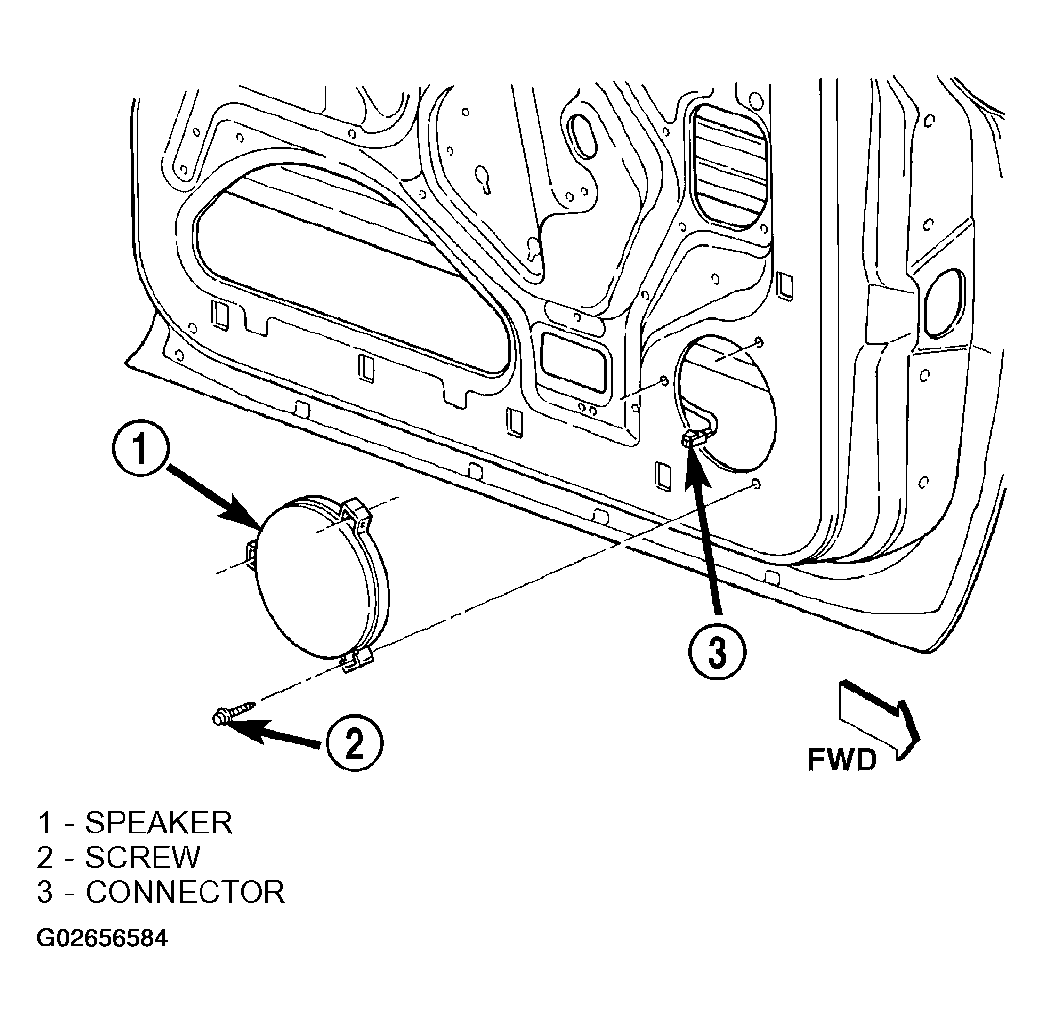

    Fig 1: Removing Screws That Secure Speaker To Front Door
    G02656584Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull the speaker away from the mounting hole in the front door inner panel far enough to access the wire harness connector.
  5. Disconnect the front door wire harness connector from the speaker.
  6. Remove the speaker from the front door inner panel.
