Remote Switches: Description

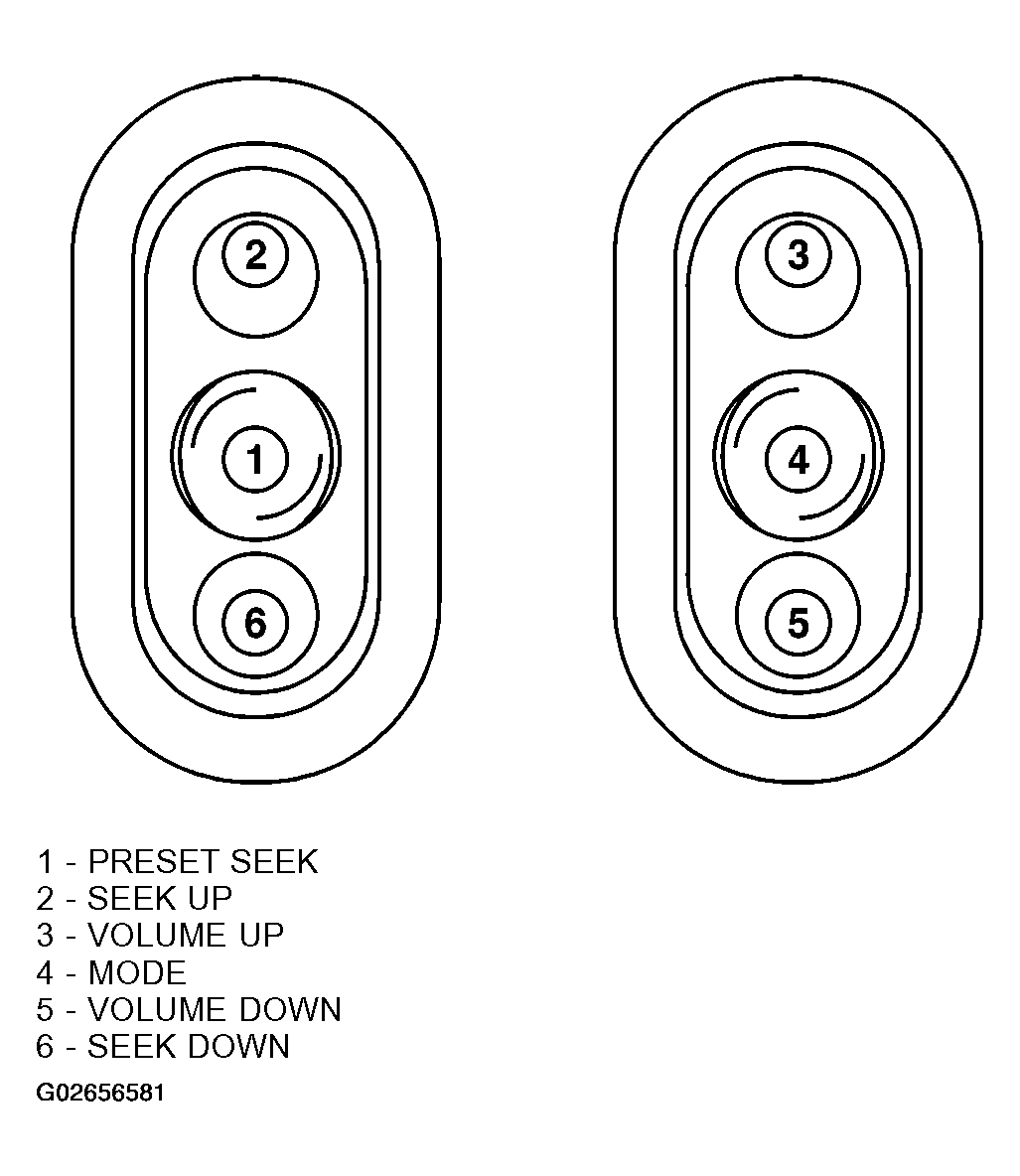

Two rocker-type switches (Fig 1 ) are mounted in the sides of the rear (instrument panel side) steering wheel trim cover. The switch on the left spoke is the seek switch and has seek up, seek down, and preset station advance functions. The switch on the right spoke is the volume control switch and has volume up, and volume down functions. The switch on the right spoke also includes a "mode" control that allows the driver to sequentially select AM radio, FM radio, cassette player or CD player. The two switches are retained in mounting holes located on each side of the rear steering wheel trim cover by four latches that are integral to the switches.
The remote radio switches share a common steering wheel wire harness with the vehicle speed control switches. The steering wheel wire harness is connected to the instrument panel wire harness through the clockspring. (Refer to AIR BAG RESTRAINT SYSTEMS (2003) or AIR BAG RESTRAINT SYSTEMS (2004) ) for more information on this component.
