Engine To Plenum-5.9L Engine

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove nut and washer from plenum (Figure ).
  3. Remove the attaching bolt(s) from the cylinder head(s) (Fig 1 ).

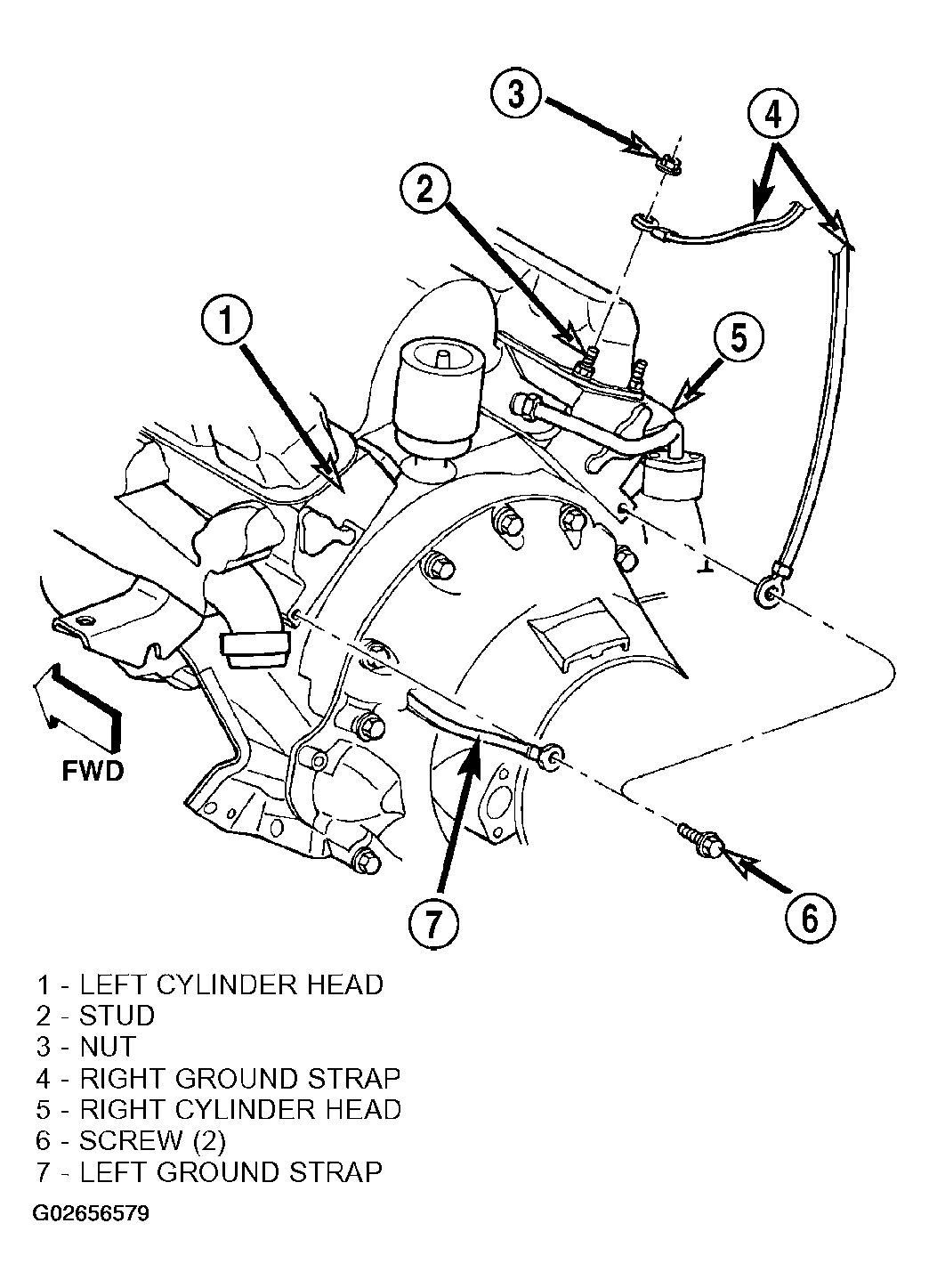

    Fig 1: Engine Ground Strap
    G02656579Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the nut and washer that secures the right engine-to-body ground strap eyelet terminal to the inboard rear valve cover stud of the right cylinder head.
