Engine To Plenum-4.7L Engine

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove nut and washer from plenum (Figure ).
Remove the attaching bolt(s) from the cylinder head(s) (Figure ).
Remove the nut and washer that secures the right engine-to-body ground strap eyelet terminal and the wire harness grounds to the weld stud on the right front fender wheelhouse inner panel (Fig 1 ).

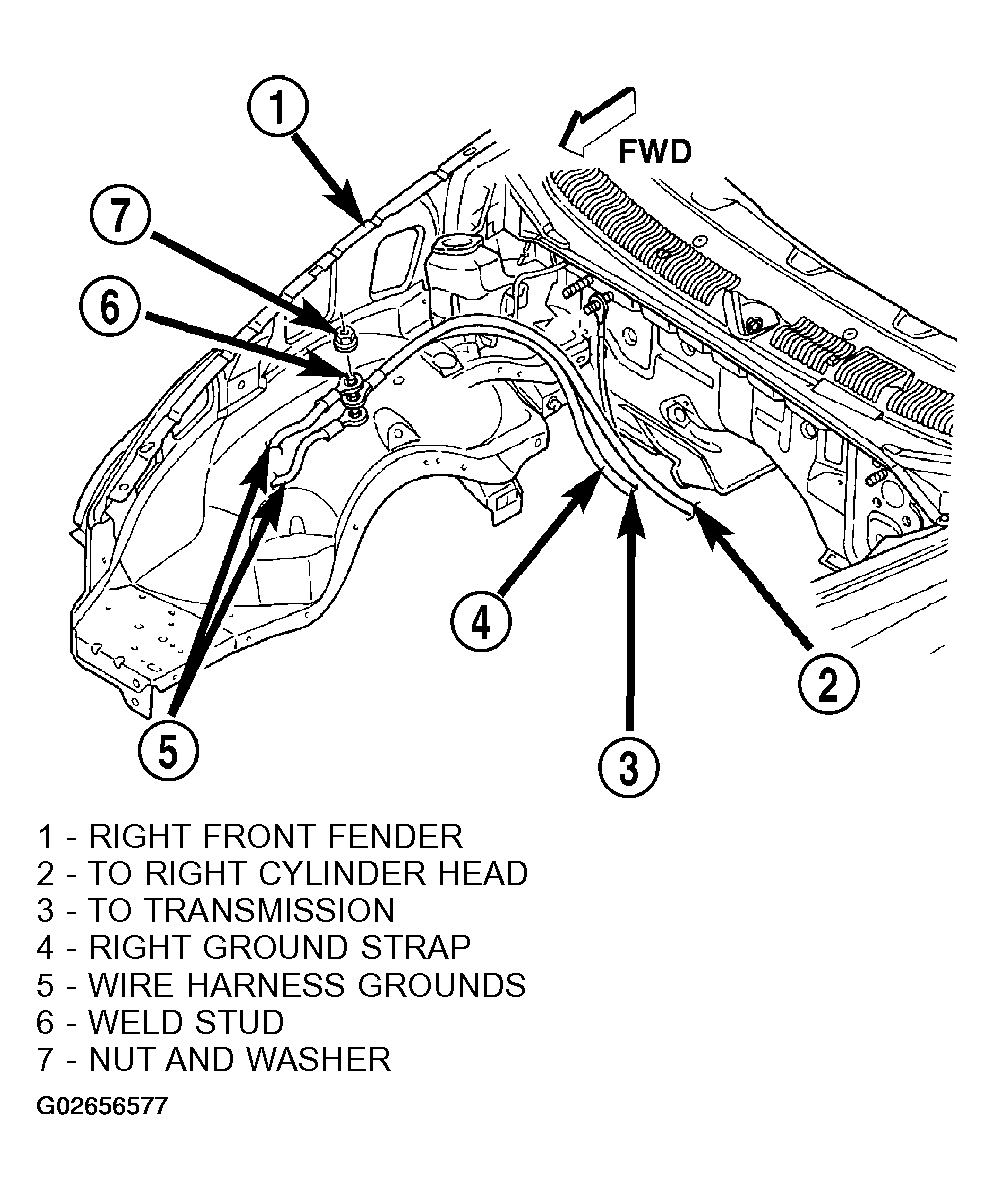

Fig 1: Engine-To-Body Ground Strap
Courtesy of DAIMLERCHRYSLER CORP.
Remove the screw and washer that secures the right engine-to-body ground strap eyelet terminal to the transmission at the right rear corner of the engine block (Fig 2 ).

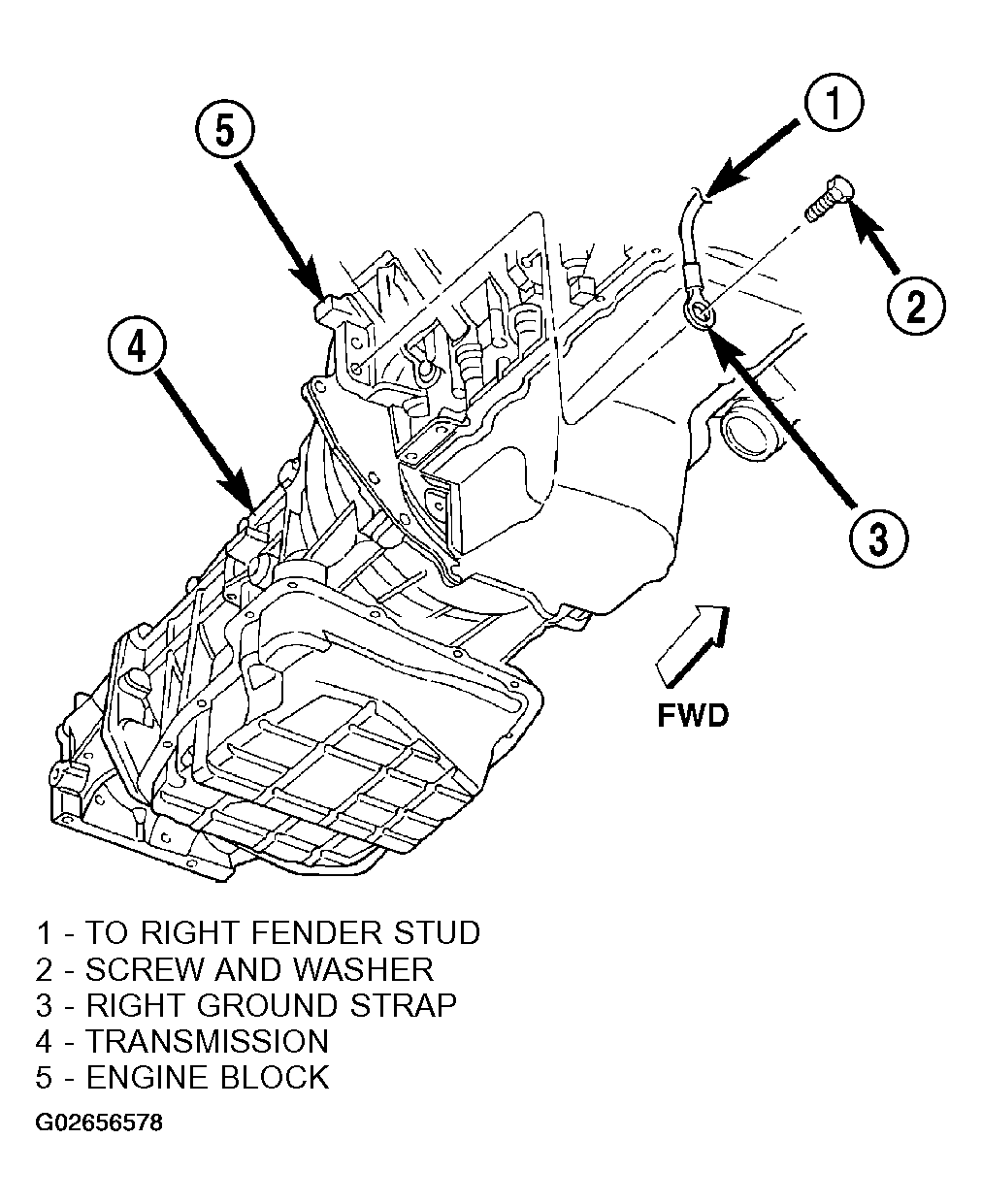

Fig 2: Engine-To-Body Ground Strap
Courtesy of DAIMLERCHRYSLER CORP.
Remove the ground strap(s) from the engine compartment.
