Without Air Conditioning

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

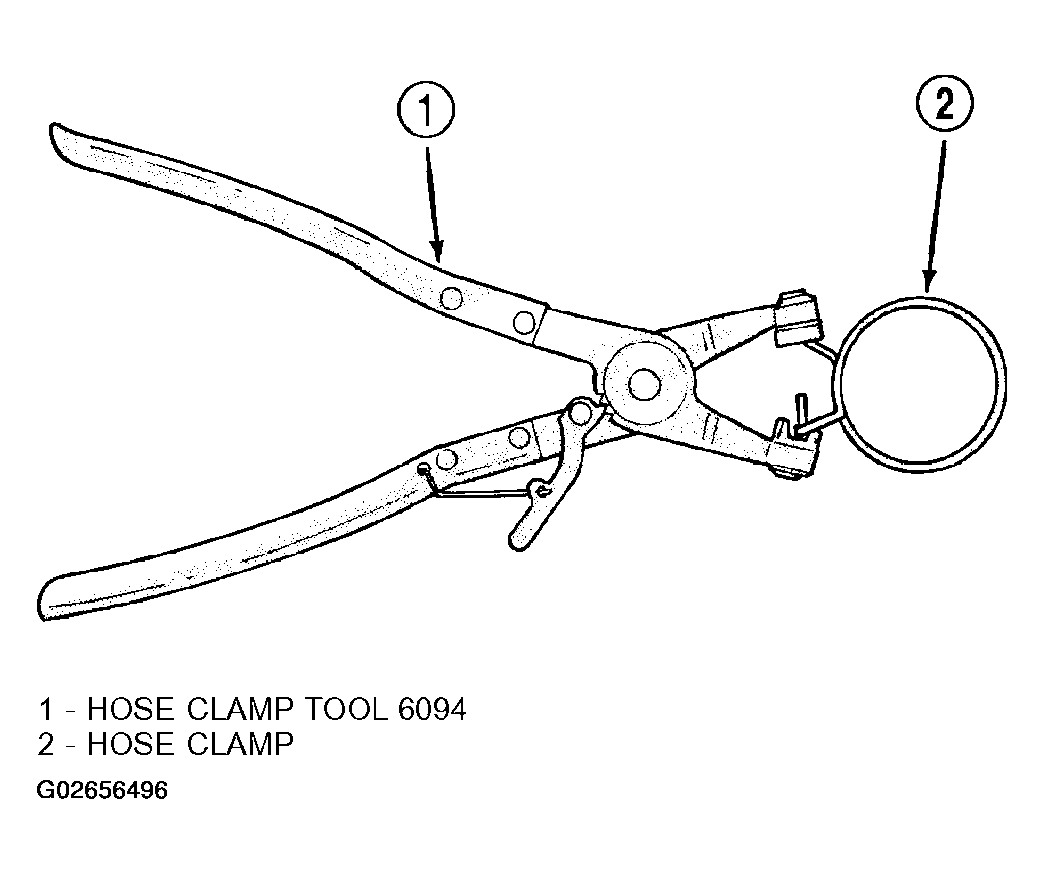

  1. Position bypass hose clamps (Figure) to center of hose.
  2. Install bypass hose to engine.
  3. Secure both hose clamps (Figure).
  4. Fill cooling system (Refer to STANDARD PROCEDURE ).
  5. Start and warm the engine. Check for leaks.
