Radiator Fan-Electric: Description
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

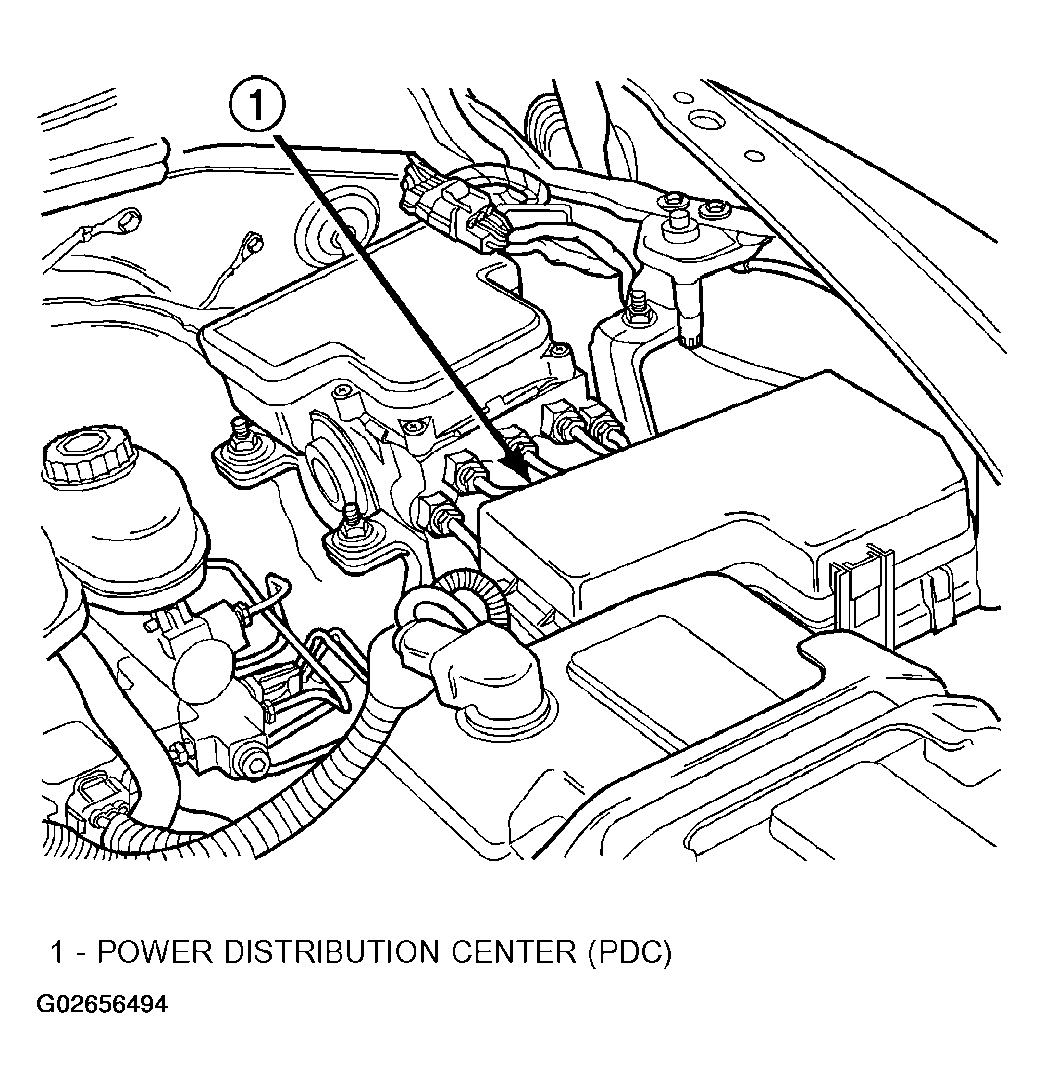

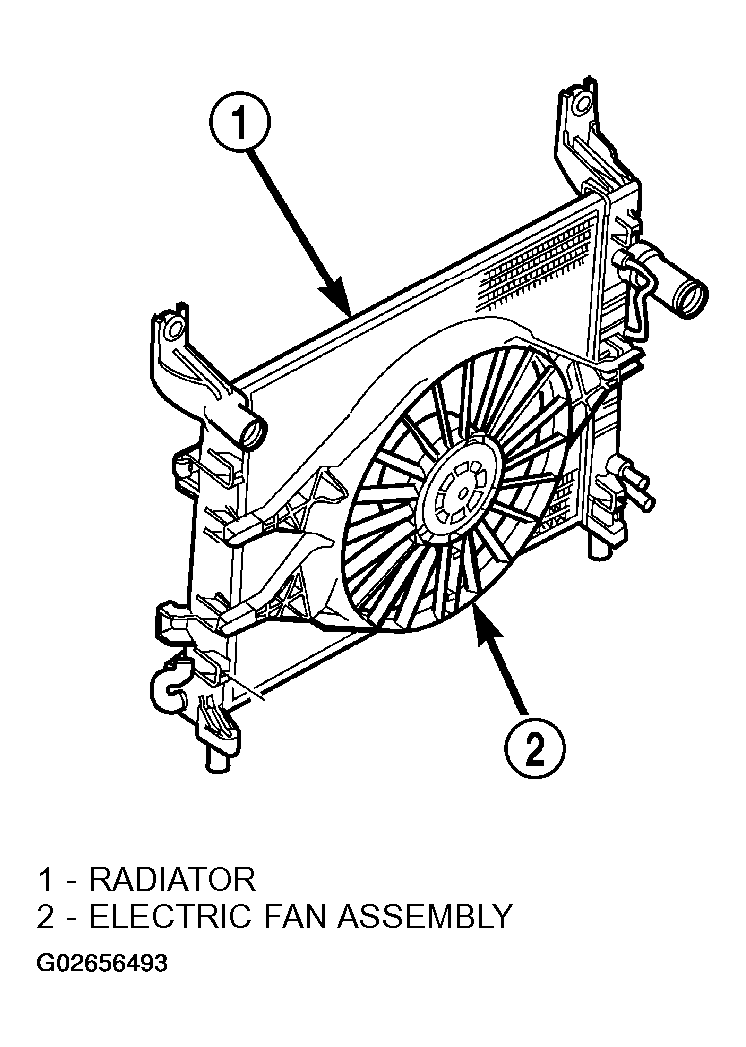

The fan (Fig 1) is electrically controlled by the powertrain control module (PCM) through the fan control relay. This relay is located in the power distribution center (PDC) (Fig 2). For the location of the relay within the PDC, refer to label on PDC cover.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
