Fan Drive Viscous Clutch-5.9L: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

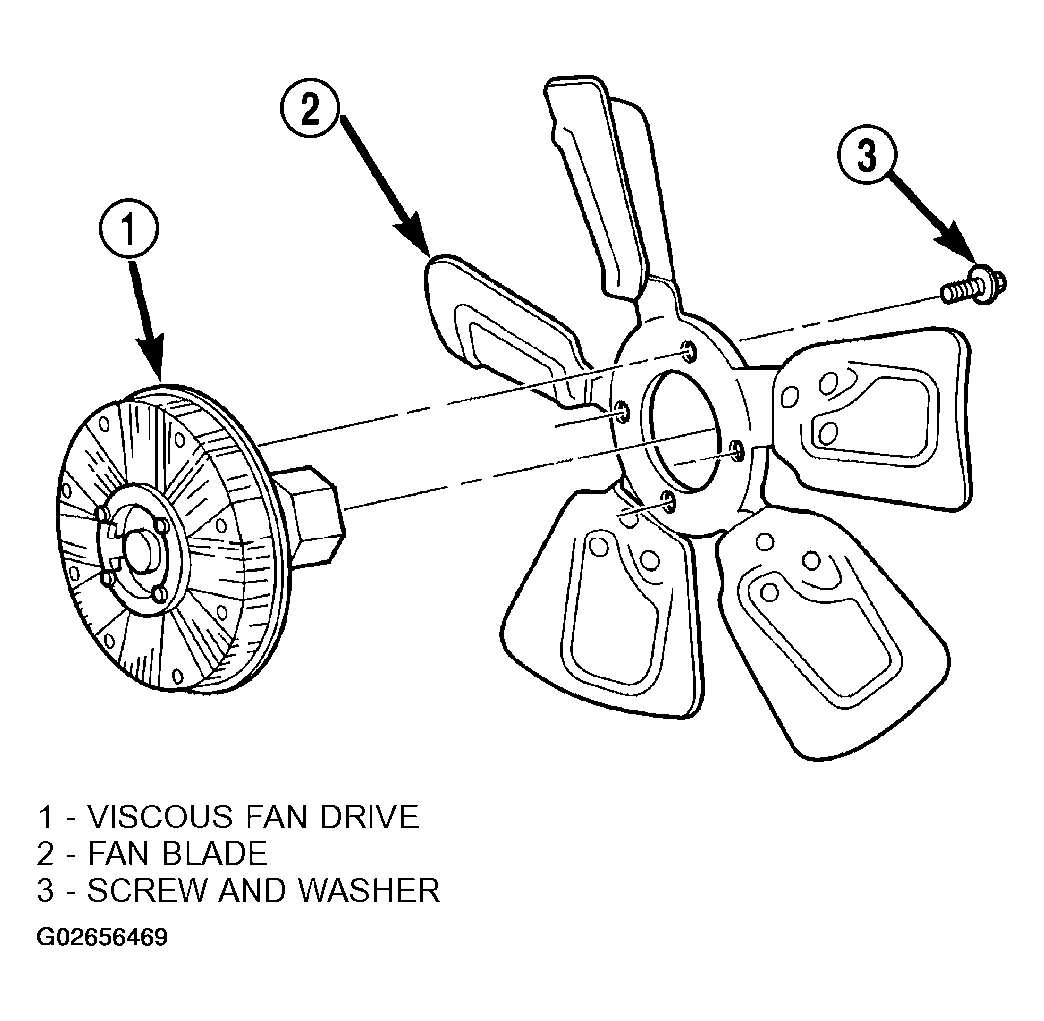

  1. Install fan blade assembly to viscous fan drive. Tighten bolts (Figure) to 23 N.m (17 ft. lbs.) torque.
  2. Position fan blade/viscous fan drive assembly and upper shroud into vehicle.
  3. Install fan shroud retaining screws (Figure).

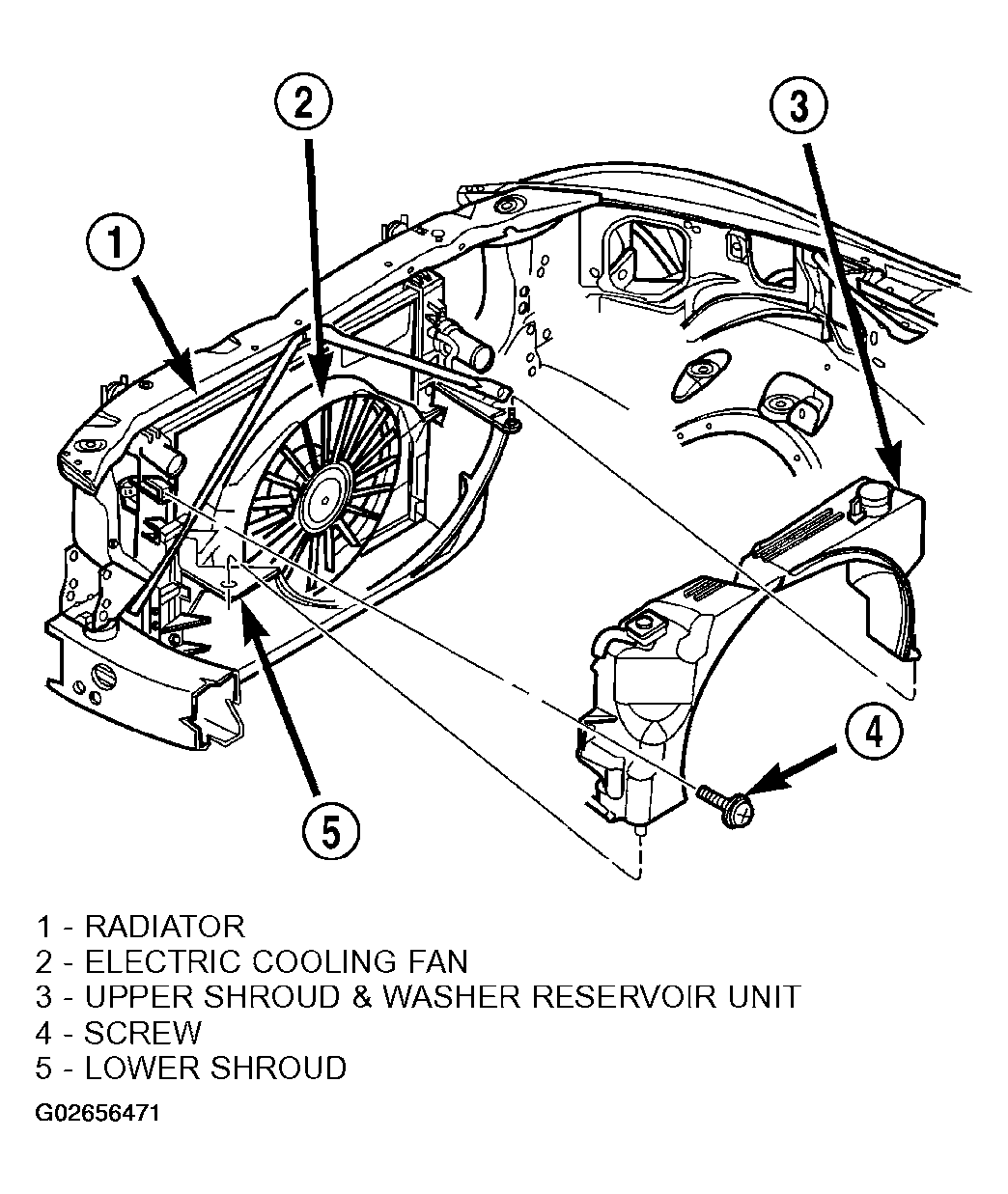

    Fig 1: Installing Upper Fan Shroud
    G02656471Courtesy of DAIMLERCHRYSLER CORP.

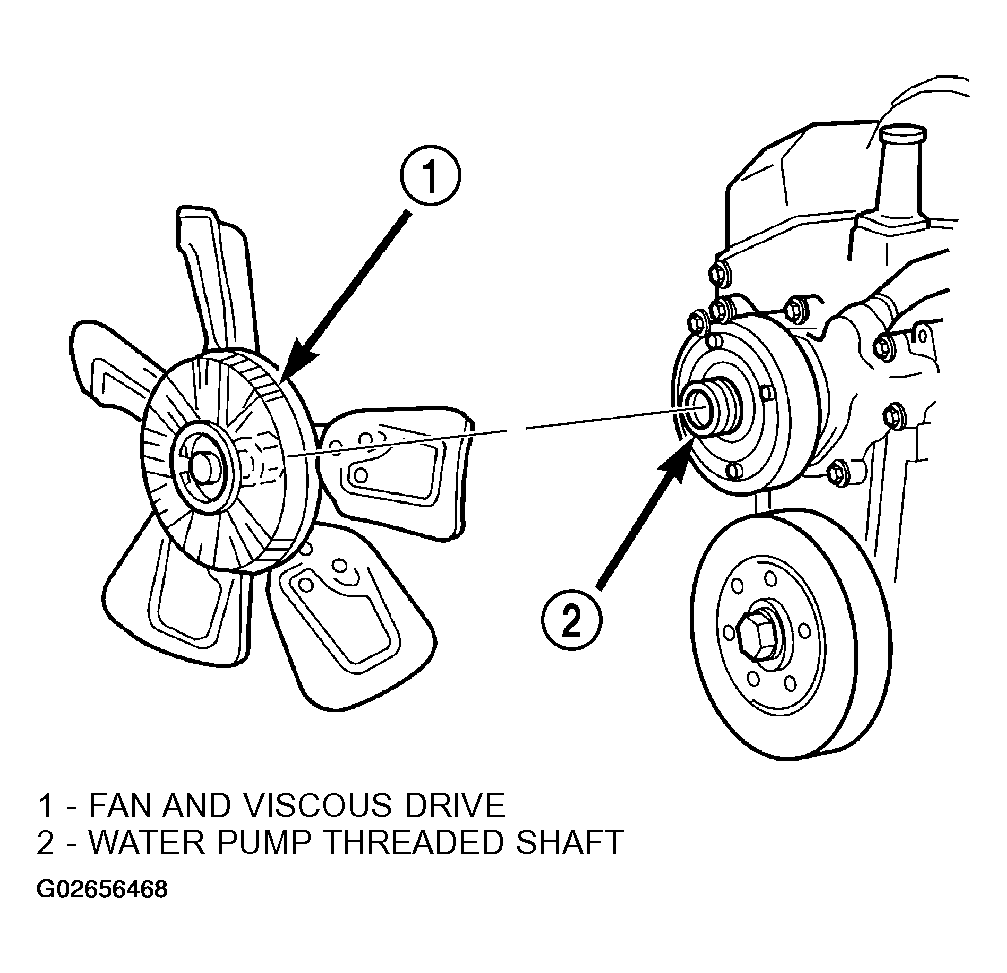

  4. Install fan blade/viscous fan drive assembly to water pump shaft (Figure).
  5. Connect battery negative cable.
