Engine Coolant Temperature Sensor: Installation: Installation-3.9L/5.2L/5.9L

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

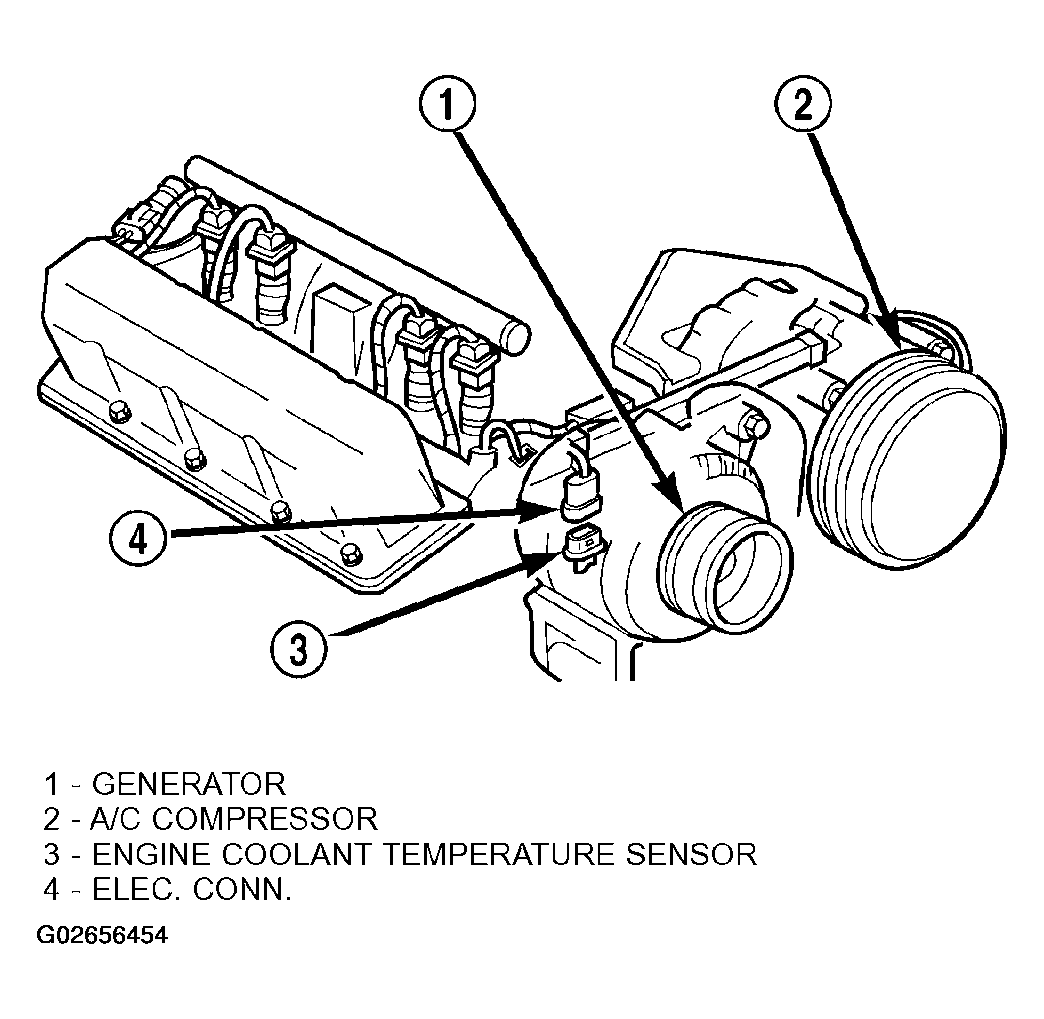

The engine coolant temperature sensor is installed into a water jacket at front of intake manifold near rear of generator (Figure).

Install sensor.
Tighten to 11 N.m (8 ft. lbs.) torque.
Use long needlenose pliers to connect electrical connector to sensor. The sensor connector is symmetrical (not indexed). It can be installed to the sensor in either direction.
Replace any lost engine coolant (Refer to STANDARD PROCEDURE ).
