Engine Block Heater-3.9L/5.9L: Removal
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery negative cable.
- Drain coolant (Refer to STANDARD PROCEDURE ).

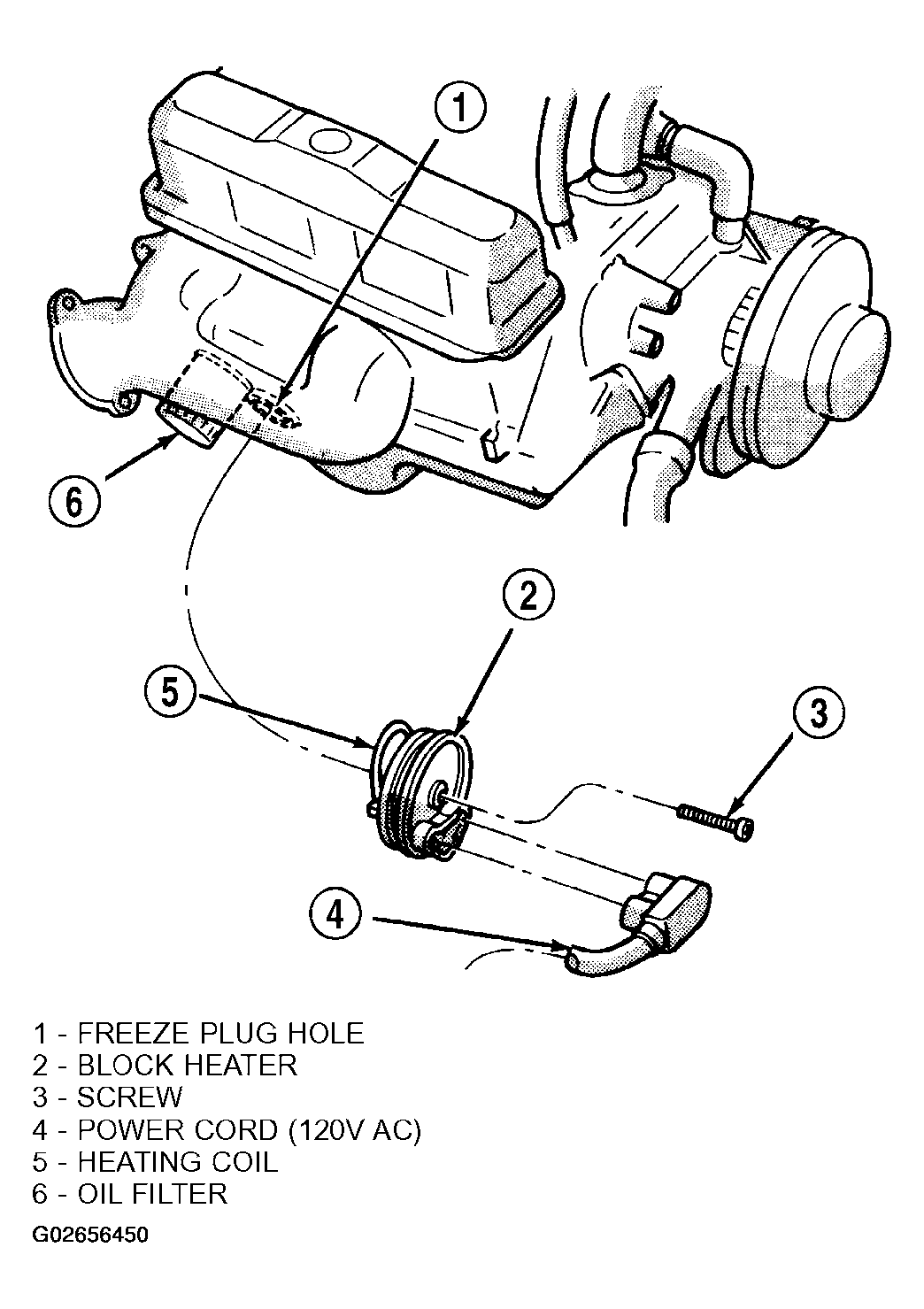

- Remove power cord from heater by unplugging (Fig 1).
- Loosen (but do not completely remove) the screw at center of block heater (Fig 1).
- Remove block heater by carefully prying from side-to-side. Note direction of heating element coil (up or down). Element coil must be installed correctly to prevent damage.
