Drive Belts Routing: Removal: Removal-3.9L/5.9L
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The belt routing schematics are published from the latest information available at the time of publication. If anything differs between these schematics and the Belt Routing Label, use the schematics on Belt Routing Label. This label is located in the engine compartment.
CAUTION:
Do not attempt to check belt tension with a belt tension gauge on vehicles equipped with an automatic belt tensioner. Refer to Automatic Belt Tensioner in this group.
Drive belts on these engines are equipped with a spring loaded automatic belt tensioner (Fig 1). This belt tensioner will be used on all belt configurations, such as with or without power steering or air conditioning. For more information, (Refer to COOLING/ACCESSORY DRIVE/BELT TENSIONERS-DESCRIPTION ).

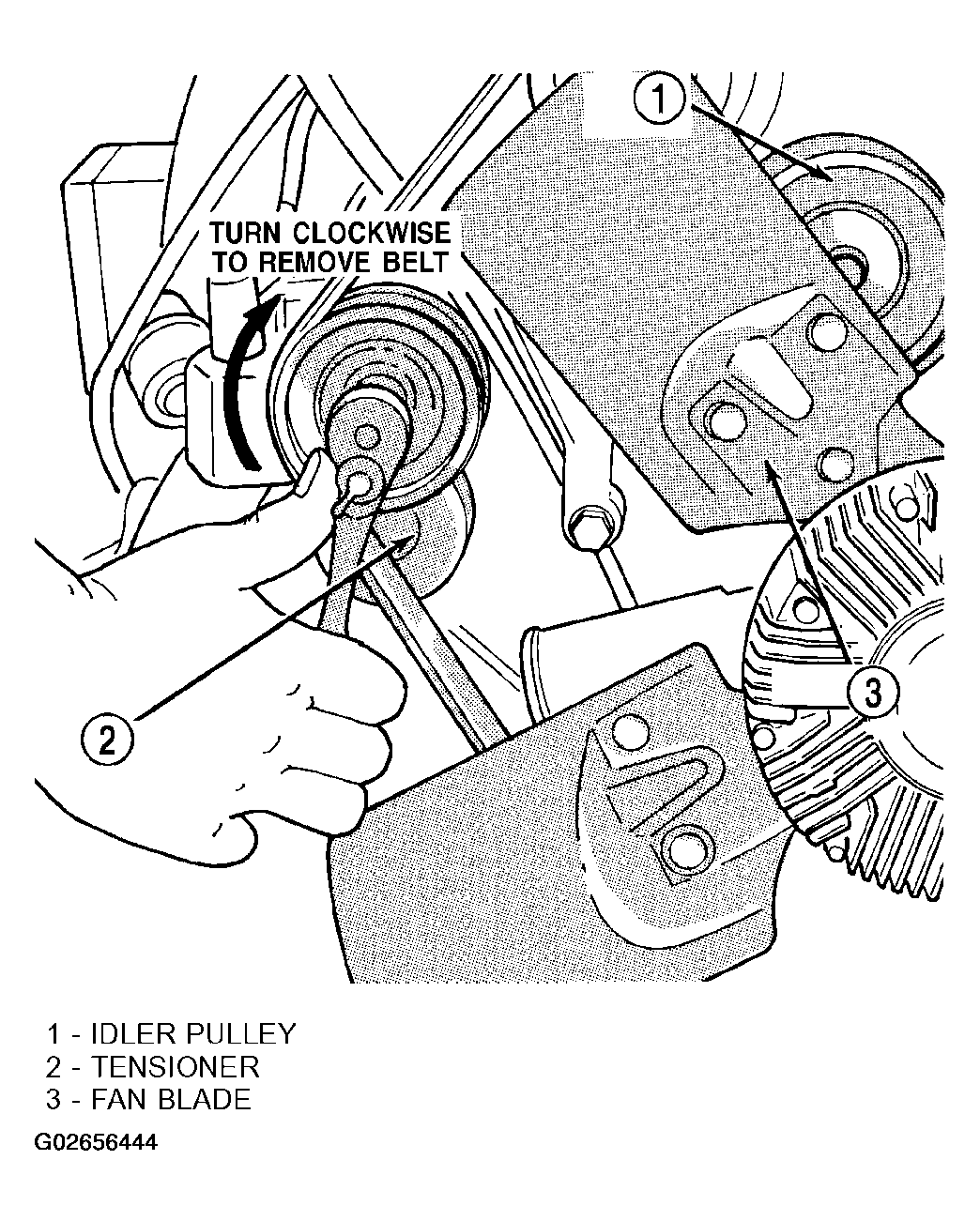

- Attach a socket/wrench to pulley mounting bolt of automatic tensioner (Fig 1).
- Rotate tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.
- Remove belt from idler pulley first.
- Remove belt from vehicle.
