Noise Diagnosis

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Noises generated by the accessory drive belt are most noticeable at idle. Before replacing a belt to resolve a noise condition, inspect all of the accessory drive pulleys for alignment, glazing, or excessive end play.

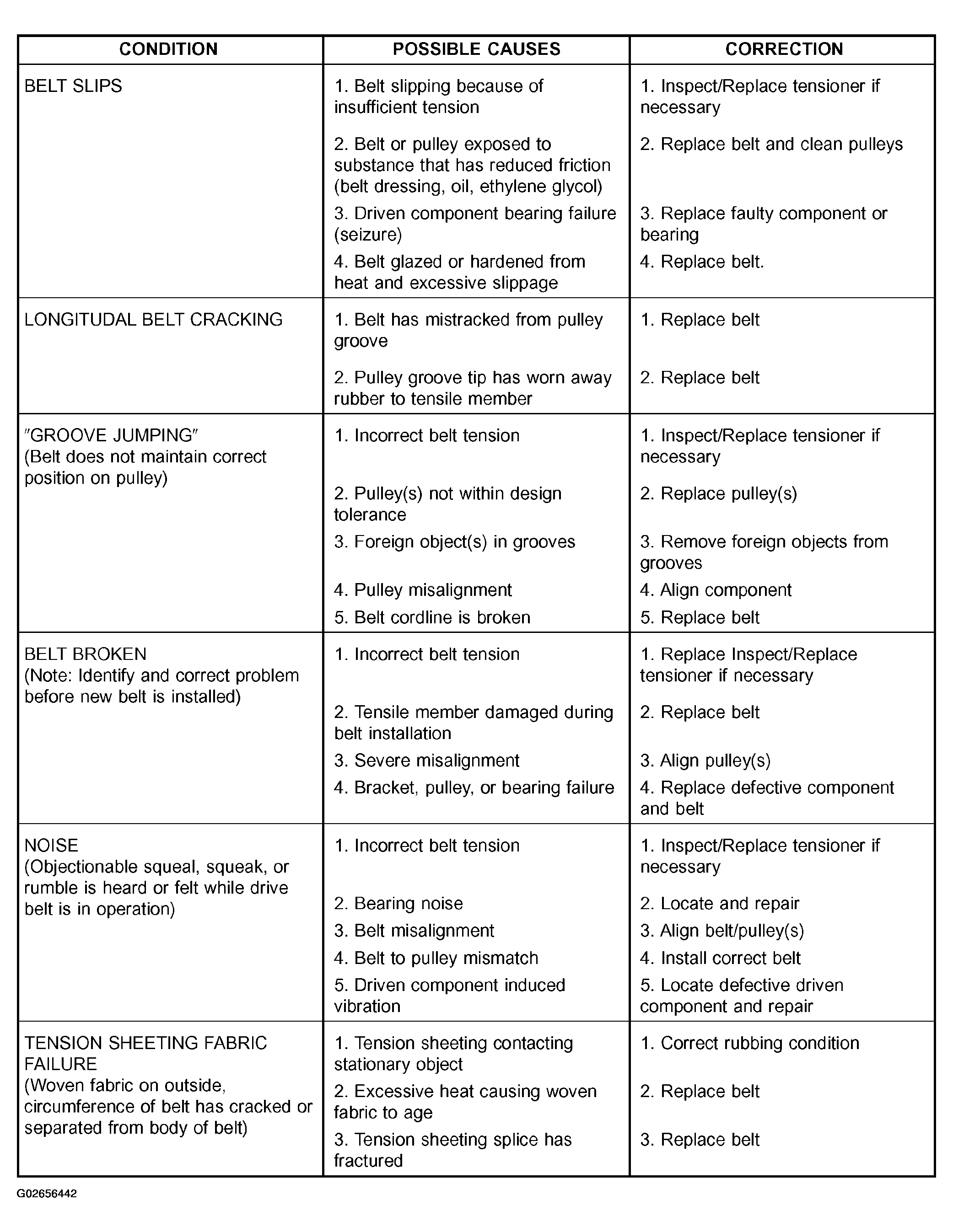

Fig 1: Accessory Drive Belt Diagnosis Chart (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Accessory Drive Belt Diagnosis Chart (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Accessory Drive Belt Diagnosis Chart (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
