Removal-Tone Wheel
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

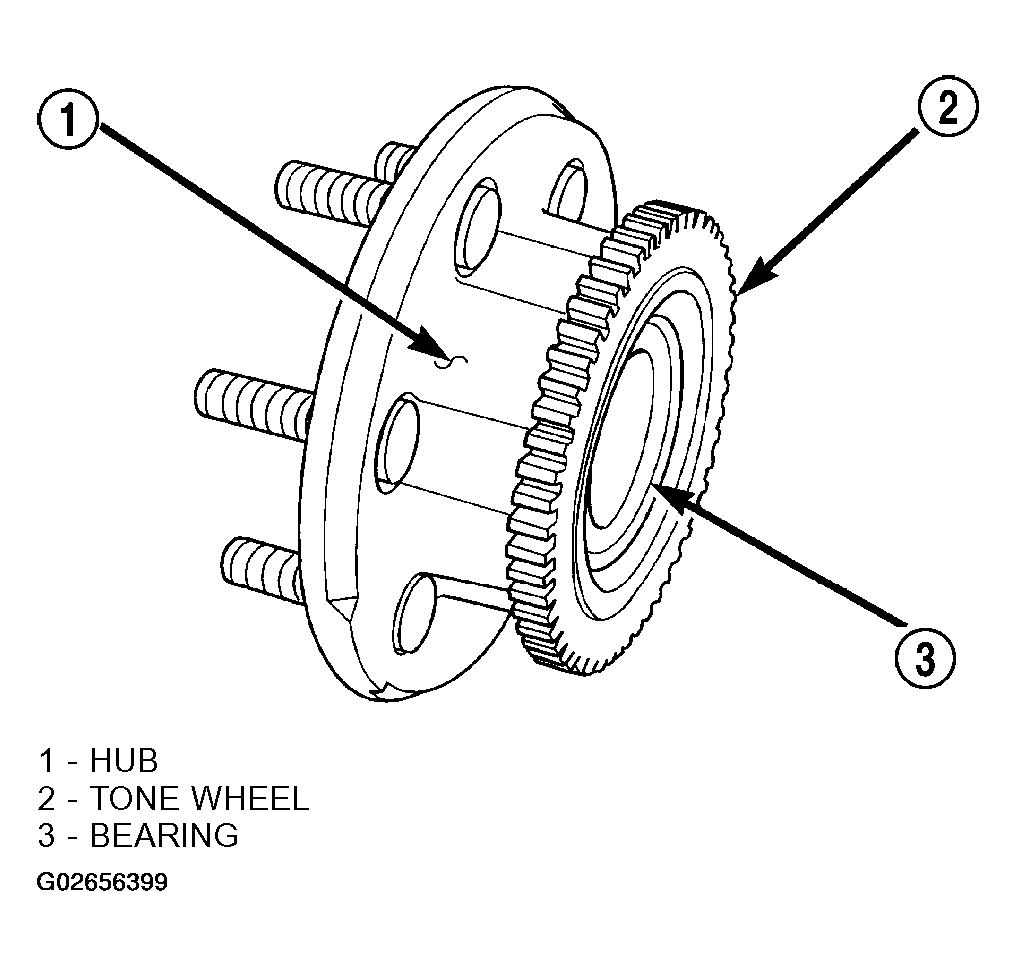

The tone wheel for the front speed sensor is located on the hub/bearing on 2-wheel drive models (Fig 1 ). On 4-wheel drive models, the tone wheel is located in the hub/bearing housing.
The tone wheel is not a serviceable component. To replace the tone wheel the hub/bearing must be replaced. (Refer to HUB & BEARING ASSEMBLY ).
