Tone Wheel: Description

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The rear Wheel Speed Sensor (WSS) is mounted in the rear differential housing (Fig 1 ).

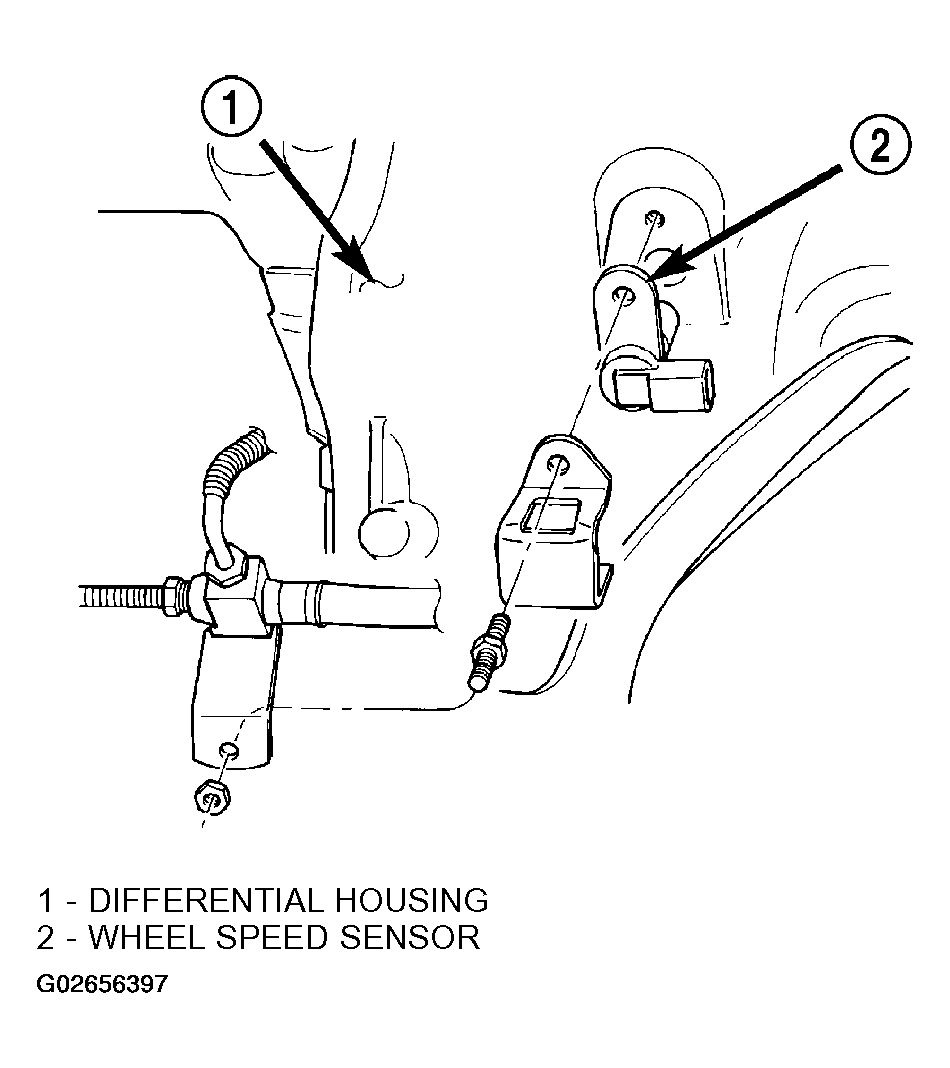

Fig 1: Rear Wheel Speed Sensor Location Description

Courtesy of DAIMLERCHRYSLER CORP.

The exciter ring is press fitted onto the differential carrier next to the final drive ring gear (Fig 2 ).

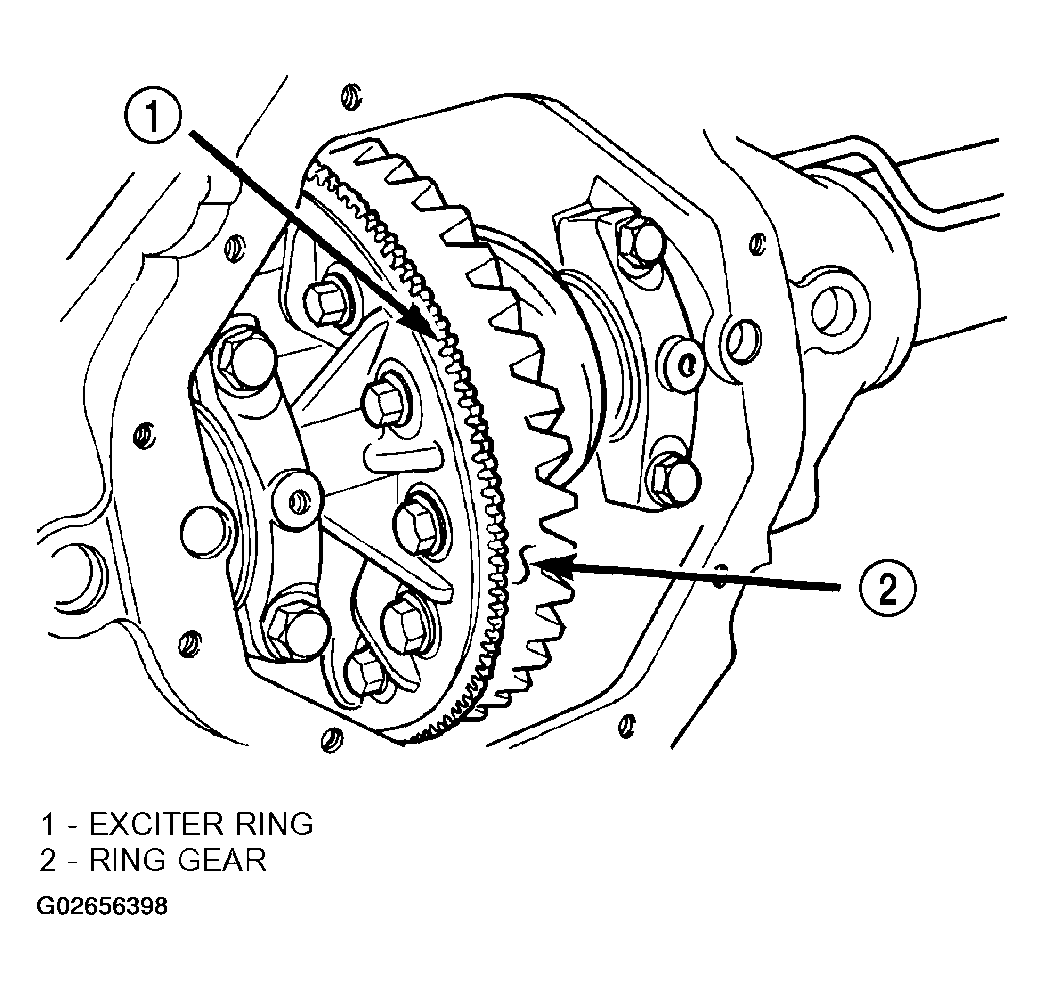

Fig 2: Identifying Exciter Ring And Ring Gear

Courtesy of DAIMLERCHRYSLER CORP.
