Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise vehicle on hoist.
  2. Remove brake line mounting nut and remove the brake line from the sensor stud.
  3. Remove mounting stud from the sensor and shield (Fig 1 ).

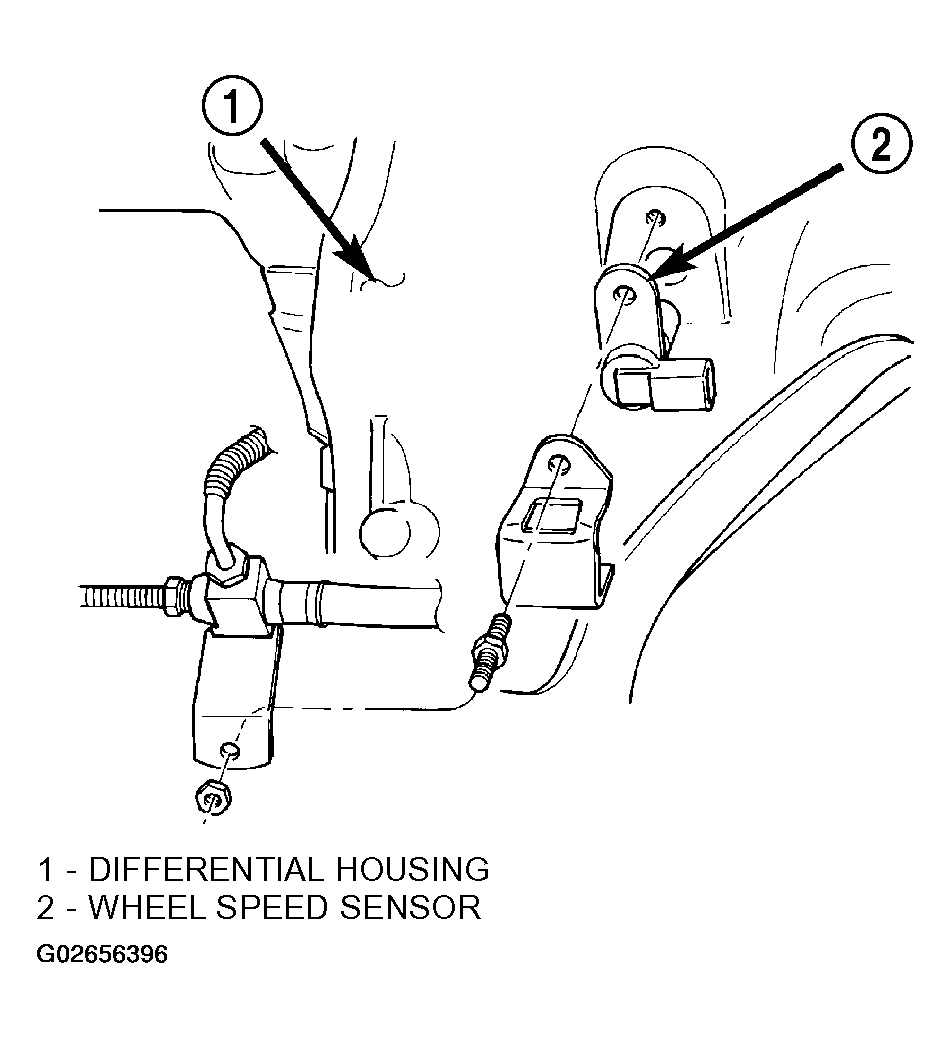

    Fig 1: Rear Wheel Speed Sensor Mounting
    G02656396Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove sensor and shield from differential housing.
  5. Disconnect sensor wire harness and remove sensor.
