RWAL Valve: Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

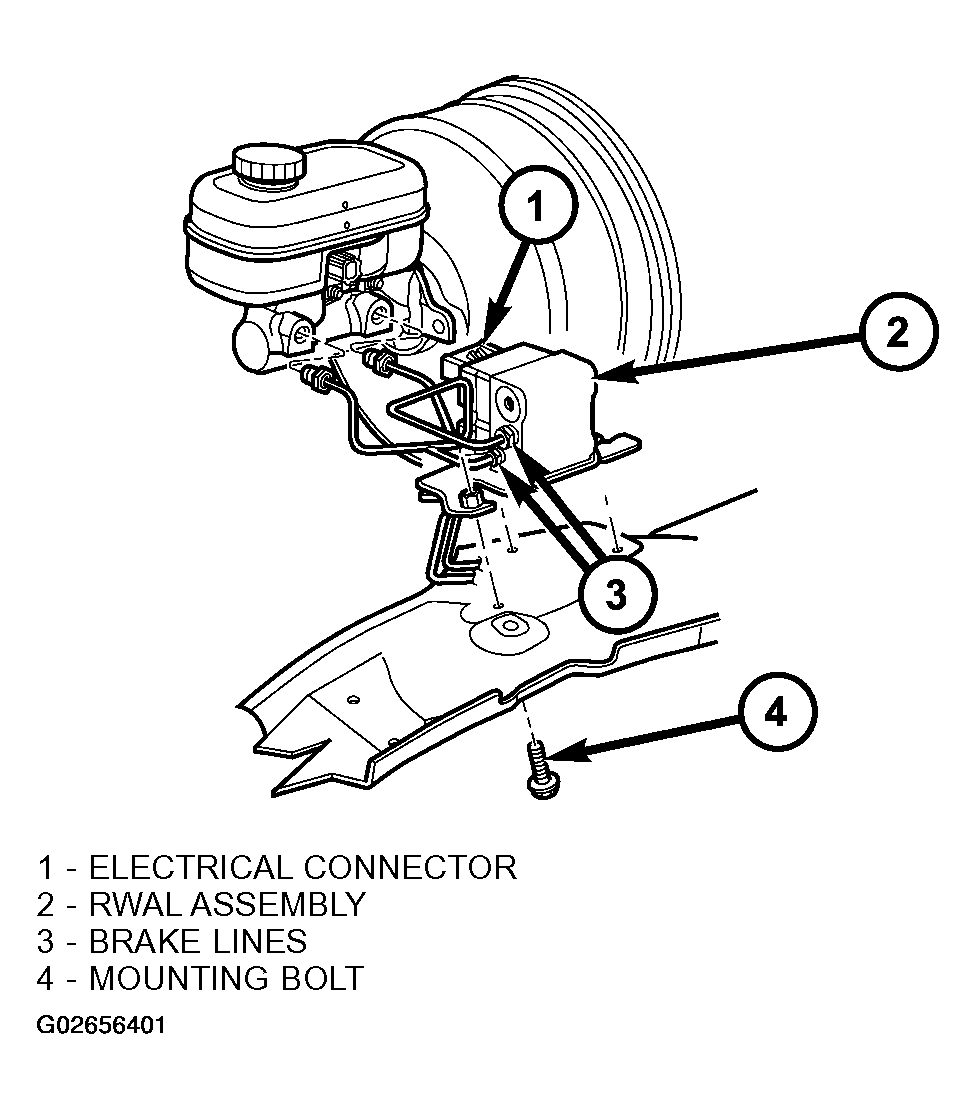

- Disconnect the RWAL assembly harness connector (Fig 1
) from the RWAL assembly.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the brake lines from the assembly (Fig 1
).
- Remove the assembly mounting bolt (Fig 1
) and remove the assembly from the vehicle.
