HCU (Hydraulic Control Unit): Removal
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect battery negative cable.

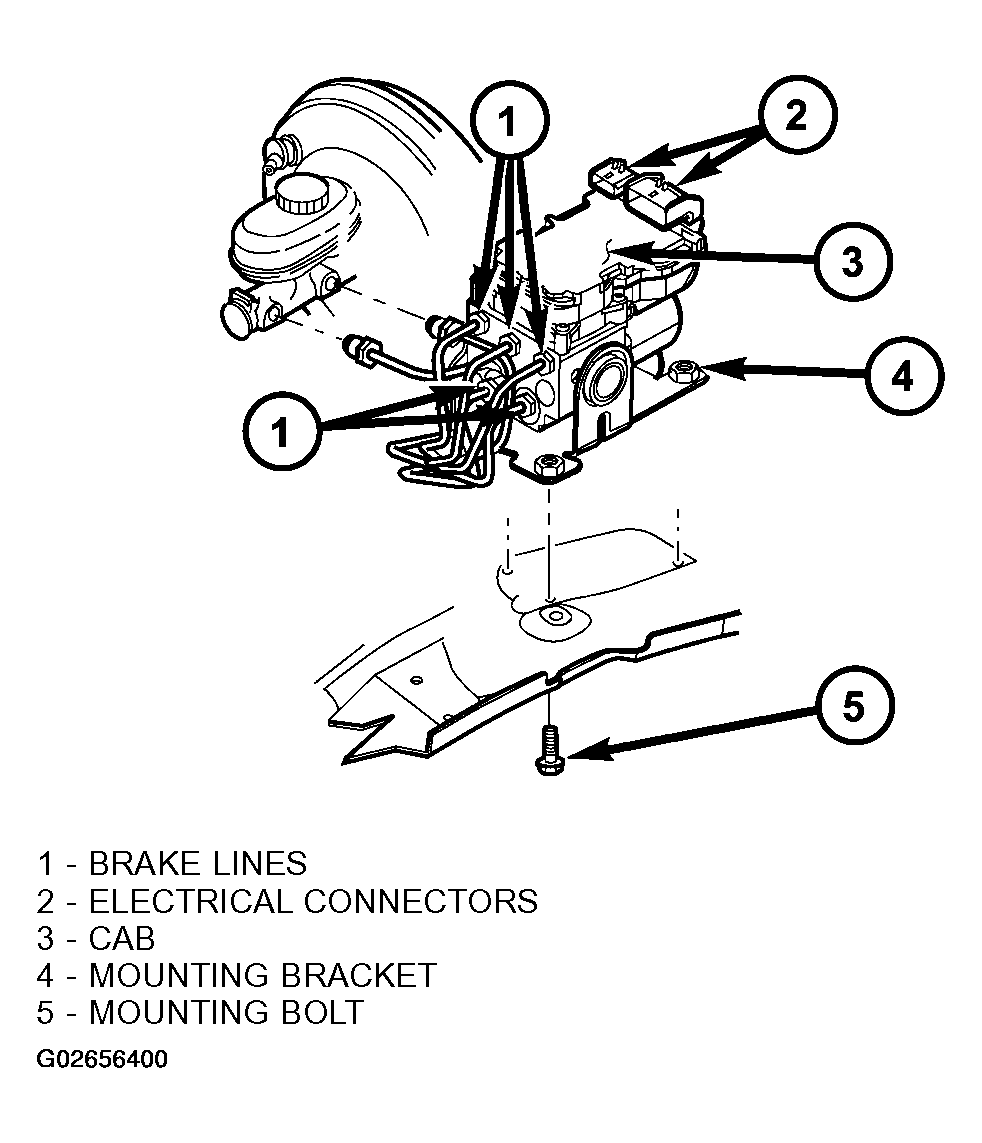

- Remove the brake lines from HCU (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Push the harness connector locks to release the locks, (Fig 1
) then remove the connectors from the CAB.
- Remove the nuts which attaches the assembly to the mounting bracket (Fig 1
).
- Remove the assembly from the vehicle.
