Front Wheel Speed Sensor: Removal: Removal-2WD

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle.
  2. Remove bolt attaching sensor to the steering knuckle (Fig 1 ).

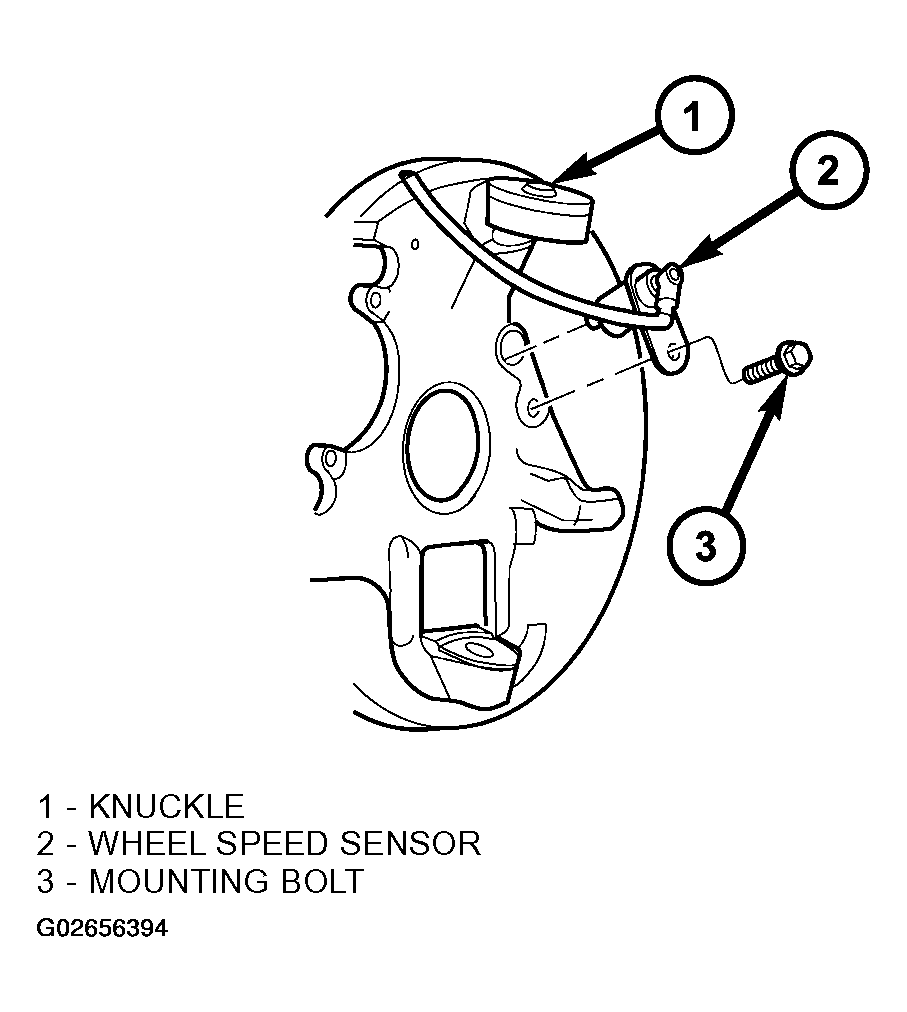

    Fig 1: Front Wheel Speed Sensor
    G02656394Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove clamps securing sensor wire to control arm and inner fender panel.
  4. In engine compartment, disconnect sensor wire from harness and remove sensor.
