Rear Axle-8 1/4: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Position a suitable lifting device under the axle.
  3. Secure axle to device.
  4. Remove the wheels and tires.
  5. Secure brake drums to the axle shaft.
  6. Remove the RWAL sensor (Fig 1 ) from the differential housing.

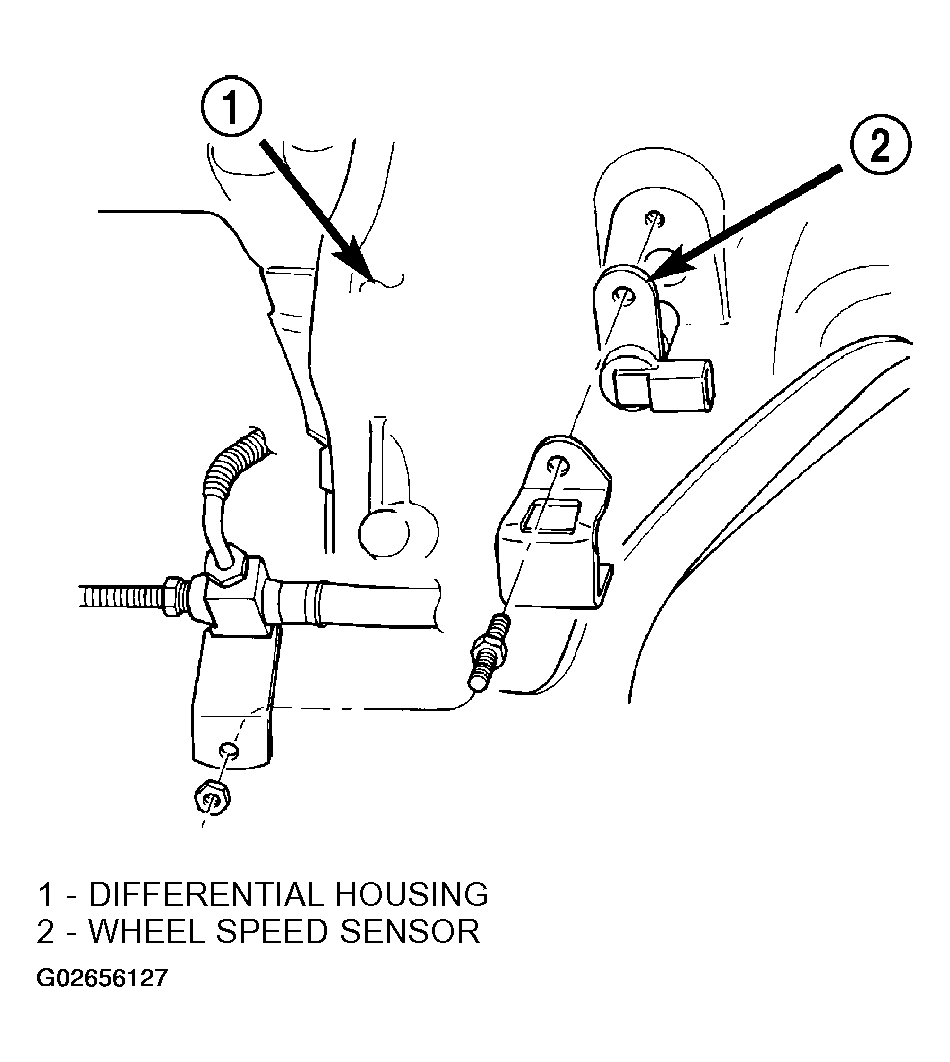

    Fig 1: Rear Speed Sensor Mounting
    G02656127Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect the brake hose at the axle junction block. Do not disconnect the brake hydraulic lines at the wheel cylinders. Refer to Brakes for procedures.
  8. Disconnect the parking brake cables and cable brackets.
  9. Disconnect the vent hose from the axle shaft tube.
  10. Mark the propeller shaft and companion flange for installation alignment reference.
  11. Remove propeller shaft.
  12. Remove shock absorbers (Fig 2 ) from axle.
    Fig 2: Shock Absorber
    G02656128Courtesy of DAIMLERCHRYSLER CORP.
  13. Remove stabilizer bar (Fig 3 ) from the axle.
    Fig 3: Stabilizer Bar Mounting
    G02656129Courtesy of DAIMLERCHRYSLER CORP.
  14. Remove the spring clamps and spring plates (Fig 4 ) and (Fig 5 ).
    Fig 4: Leaf Spring - 4X2
    G02656130Courtesy of DAIMLERCHRYSLER CORP.
    Fig 5: Leaf Spring - 4X4
    G02656131Courtesy of DAIMLERCHRYSLER CORP.
  15. Remove the axle from the vehicle.
