Differential Case Bearings: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove differential case from axle.
  2. Remove differential bearings from the case with Puller C-293-PA and Adapters C-293-48 and Plug SP-3289 (Fig 1 ).

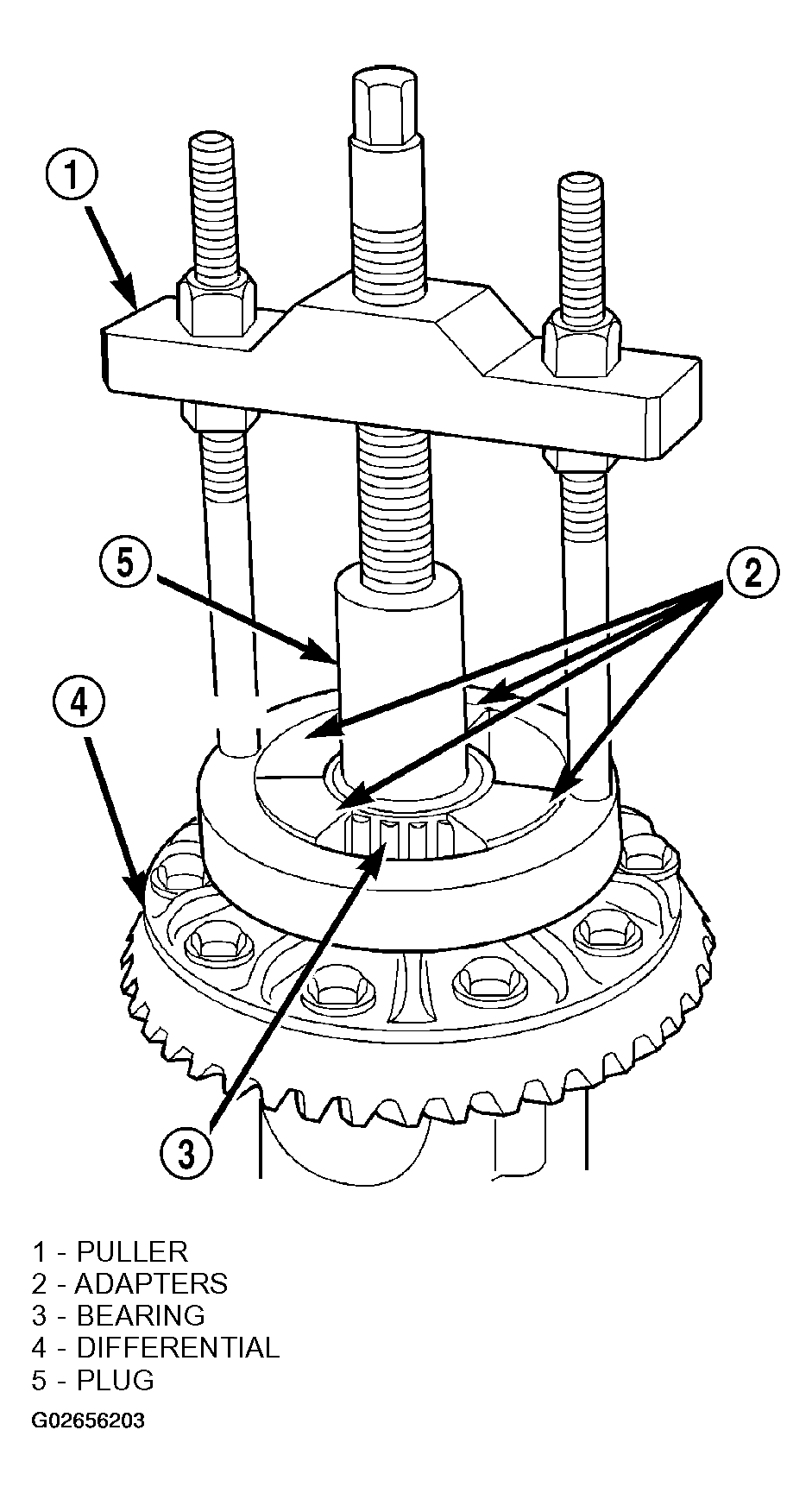

    Fig 1: Differential Bearing Puller
    G02656203Courtesy of DAIMLERCHRYSLER CORP.
