Axle Shafts: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Place transmission in neutral and raise and support vehicle.
Remove brake drum/caliper and rotor.
Remove differential cover and drain lubricant.
Rotate differential case to access the pinion shaft lock screw. Remove lock screw and pinion shaft from differential case (Fig 1 ).

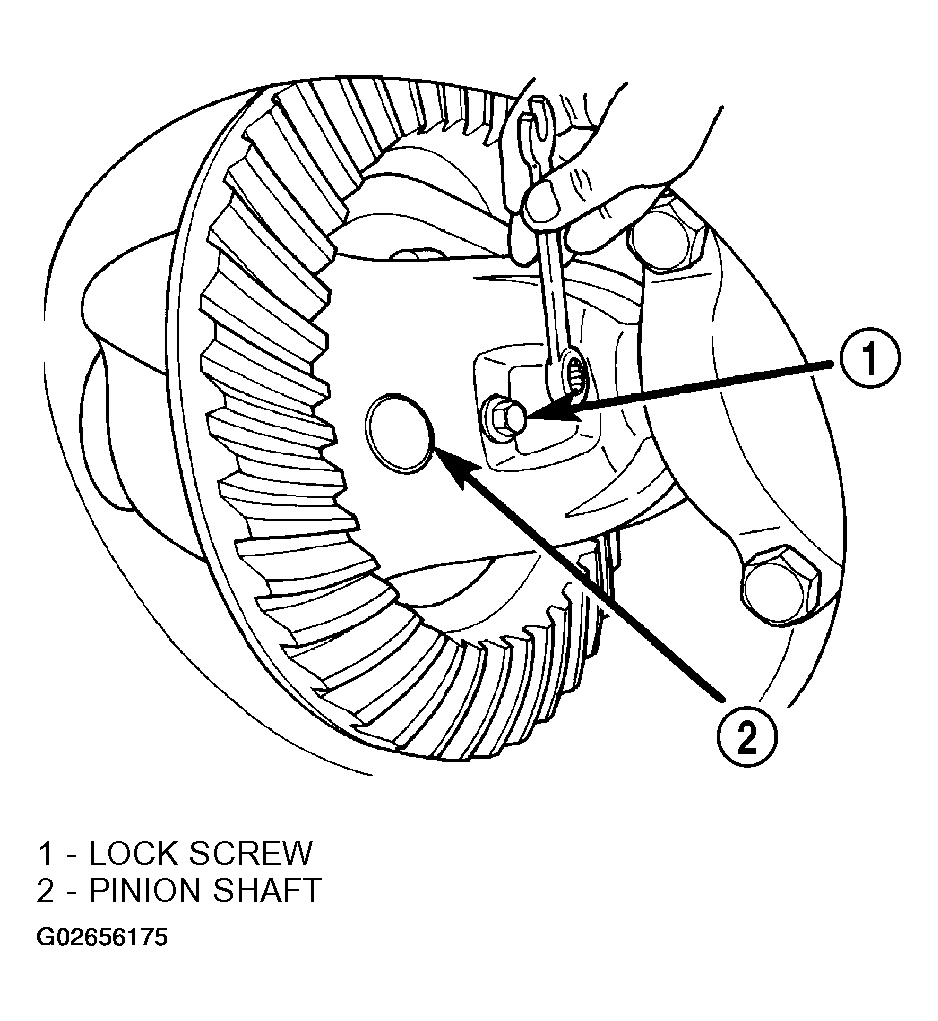

Fig 1: Pinion Shaft Lock Screw
Courtesy of DAIMLERCHRYSLER CORP.
Push axle shaft inward then remove axle shaft C-lock (Fig 2 ).

Fig 2: Axle Shaft C-Lock
Courtesy of DAIMLERCHRYSLER CORP.
Remove axle shaft being careful not to damage shaft bearing and seal.
Inspect axle shaft seal for leakage or damage.
Inspect axle shaft bearing contact surface for signs of brinelling, galling and pitting.
