Front Axle-C205F: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the skid plate, if equipped.
  3. Remove skid plate support crossmember, if necessary.
  4. Remove both half shafts.
  5. Mark the propeller shaft, transfer case, and pinion companion flange for installation reference.
  6. Remove the front propeller shaft.
  7. Remove the axle vent tube.
  8. Use an adjustable and movable jack to support the differential housing.
  9. Remove bolts holding the axle to the engine mounts (Fig 1 ).

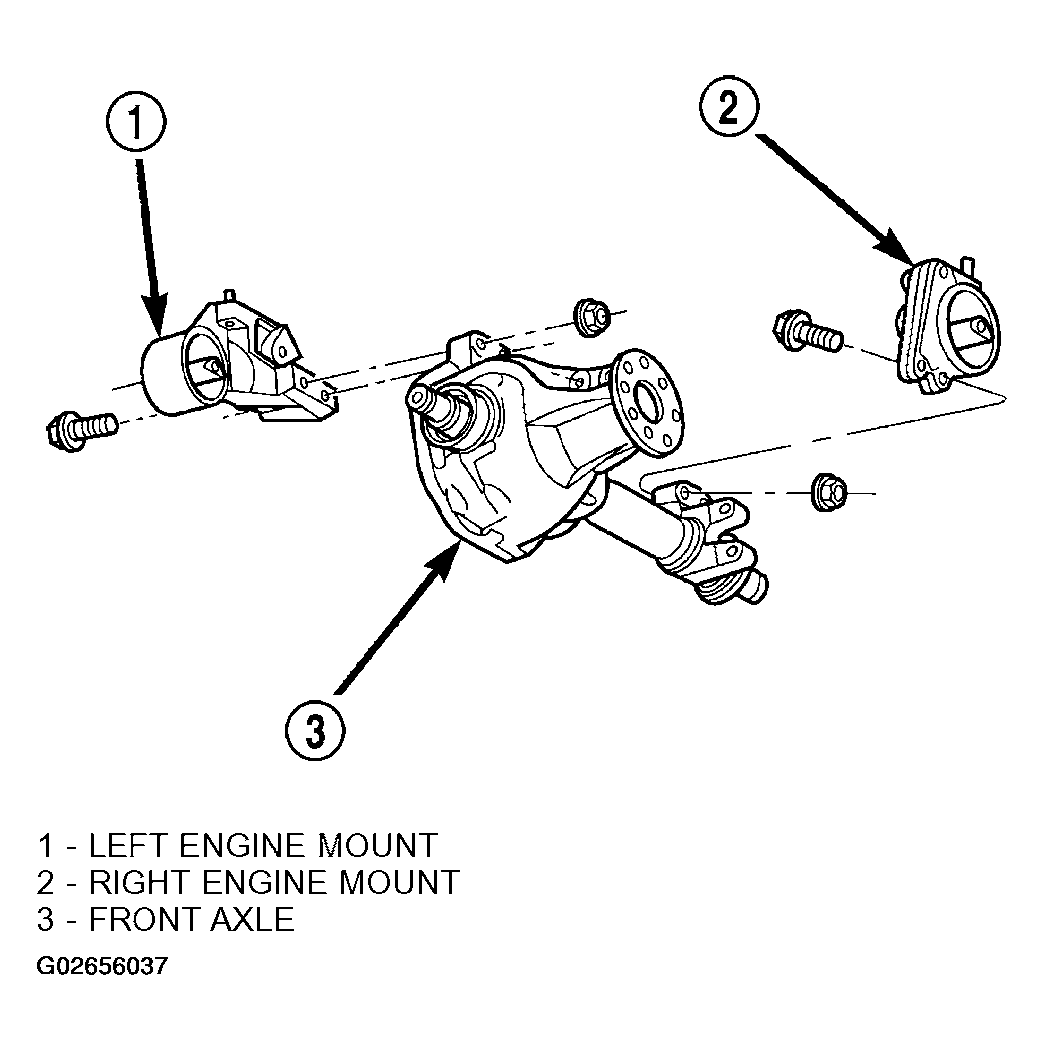

    Fig 1: Axle Mounting
    G02656037Courtesy of DAIMLERCHRYSLER CORP.
  10. Remove bolts holding the axle to the pinion nose bracket (Fig 2 ).

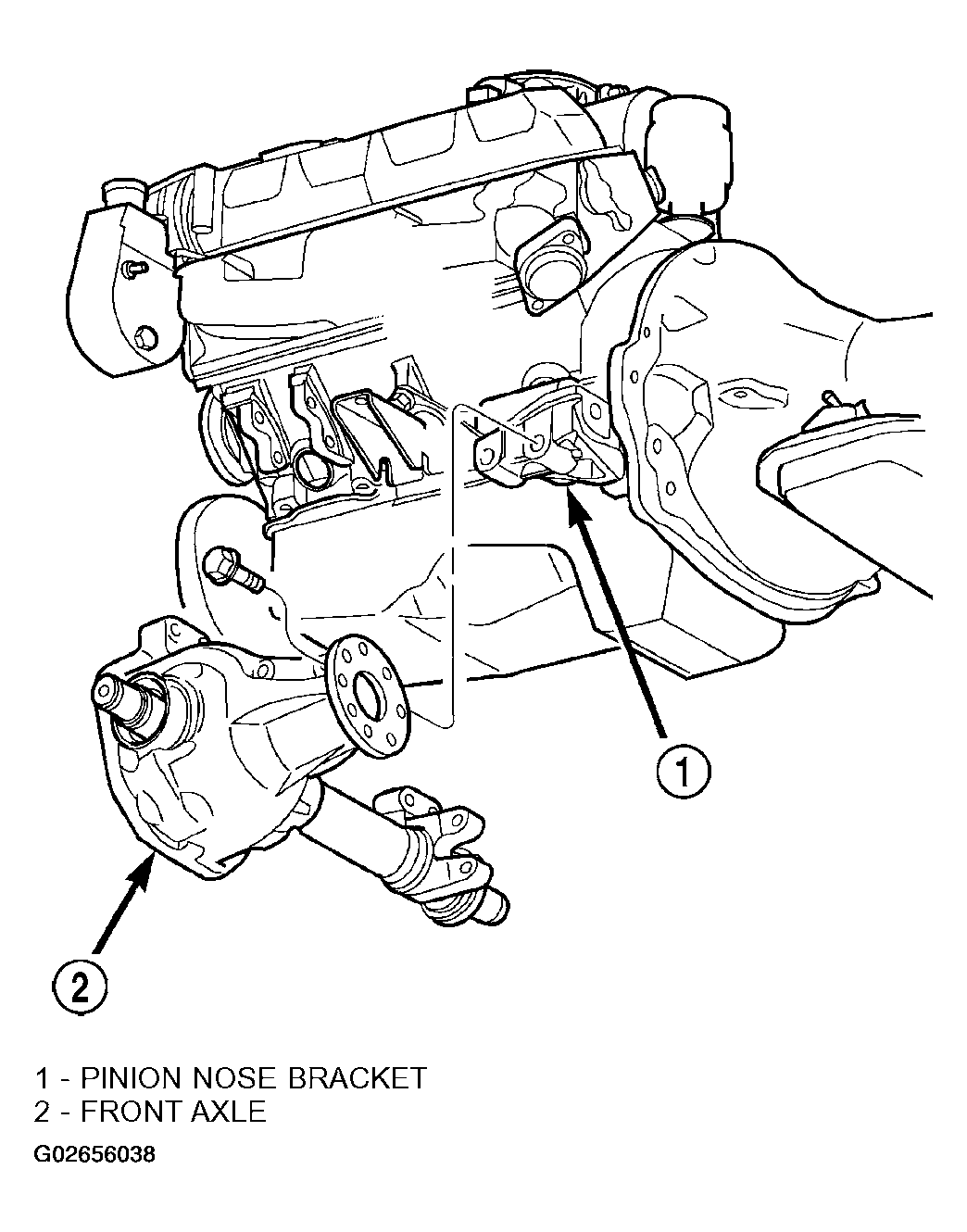

    Fig 2: Pinion Nose Mounting
    G02656038Courtesy of DAIMLERCHRYSLER CORP.
  11. Lower the jack and housing.
  12. Remove the axle from vehicle.
