Section 33 (Front Axle - C205F): Differential: Disassembly

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ring gear.
  2. Remove roll-pin holding mate shaft in housing.
  3. Remove pinion gear mate shaft.
  4. Rotate differential side gears and remove the pinion mate gears and thrust washers (Fig 1 ).

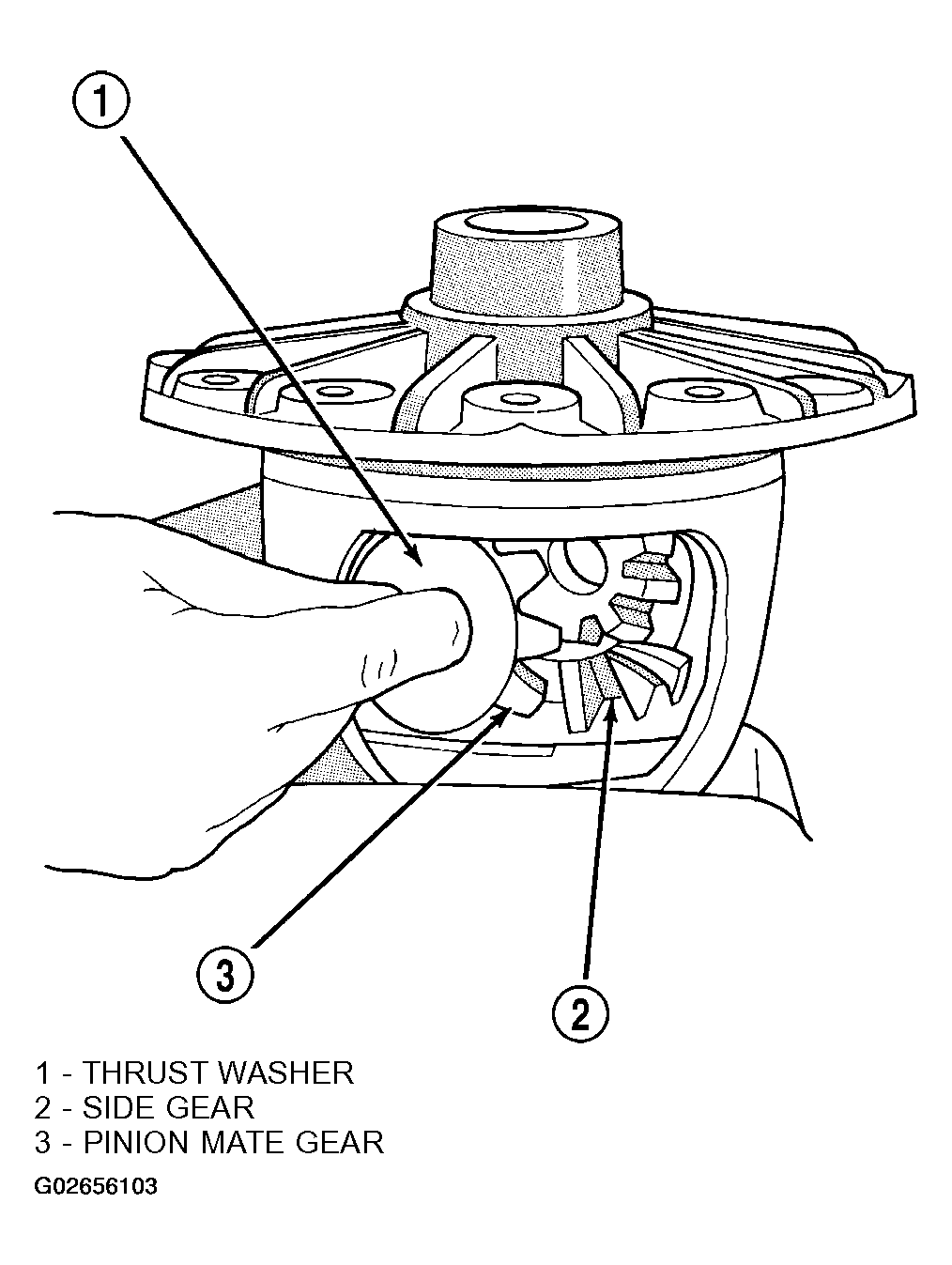

    Fig 1: Removing Pinion Mate Gears And Thrust Washers
    G02656103Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the differential side gears and thrust washers.
