Section 33 (Front Axle - C205F): Differential: Assembly

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install differential side gears and thrust washers.
  2. Install pinion mate gears and thrust washers.
  3. Install pinion gear mate shaft.
  4. Align the hole in the pinion gear mate shaft with the hole in the differential case.
  5. Install the roll-pin in the differential case a punch and hammer (Fig 1 ). Peen the edge of the roll-pin hole in the differential case in two places 180° apart.

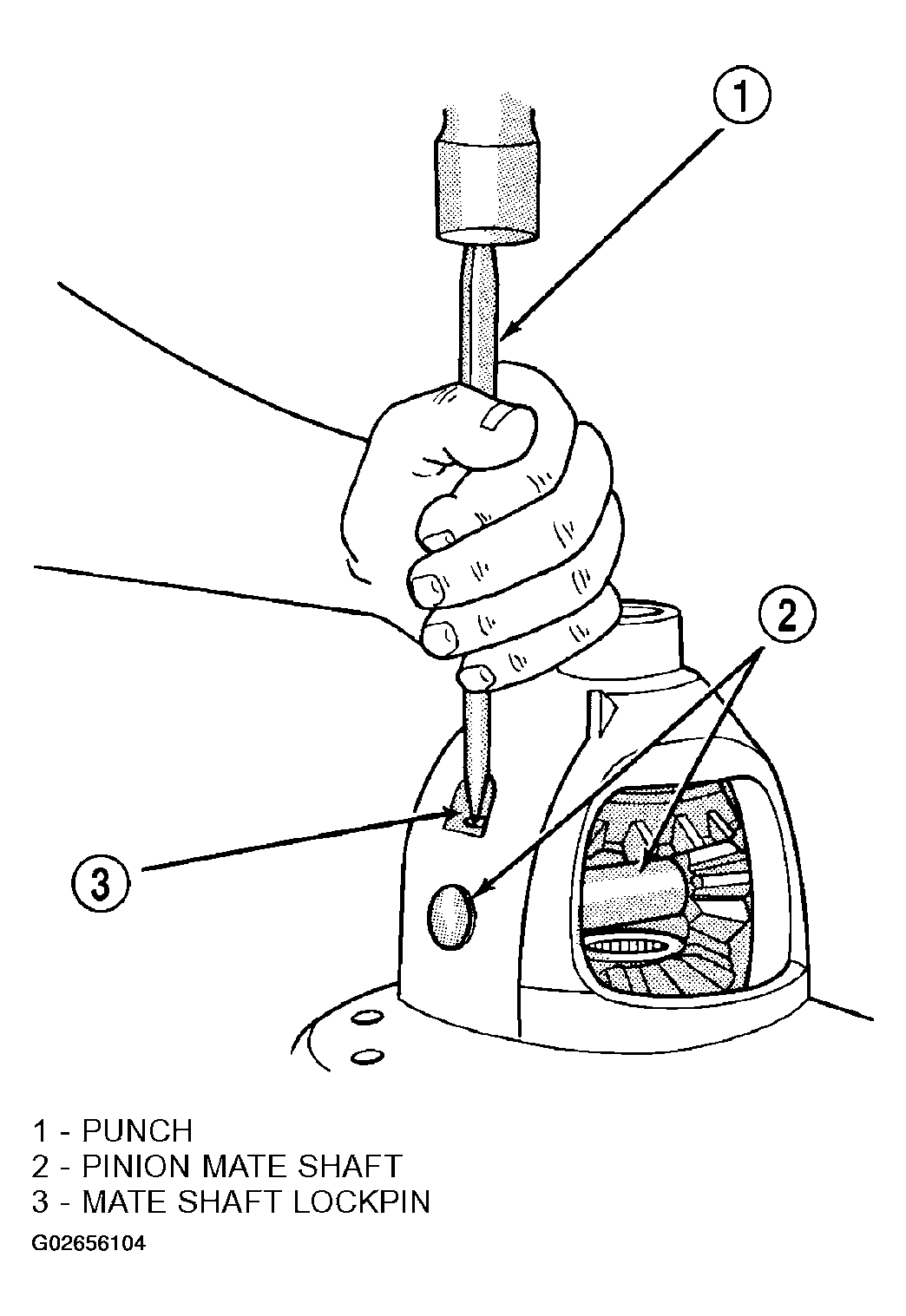

    Fig 1: Installing Roll-Pin In Differential Case
    G02656104Courtesy of DAIMLERCHRYSLER CORP.
  6. Lubricate all differential components with hypoid gear lubricant.
  7. Install ring gear.
