Differential Case Bearings: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove differential from housing.
  2. Remove bearings from the differential case with Puller/Press C-293-PA, Adapters C-293-48 and Plug C-293-3 (Fig 1 ).

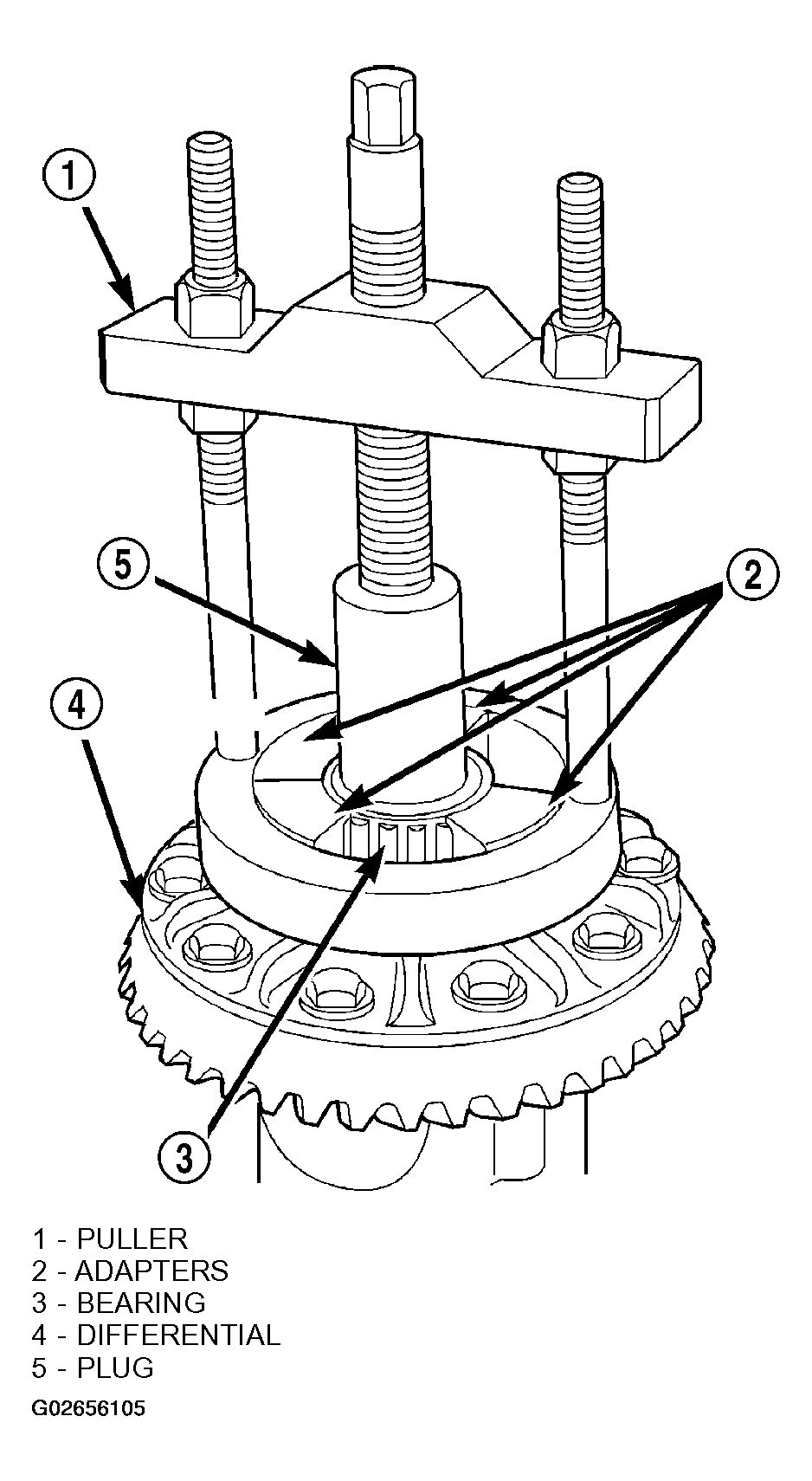

    Fig 1: Identifying Differential Case Bearing Puller
    G02656105Courtesy of DAIMLERCHRYSLER CORP.
