Differential Case Bearings: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install differential case bearings with Installer C-3716-A and Handle C-4171 (Fig 1 ).

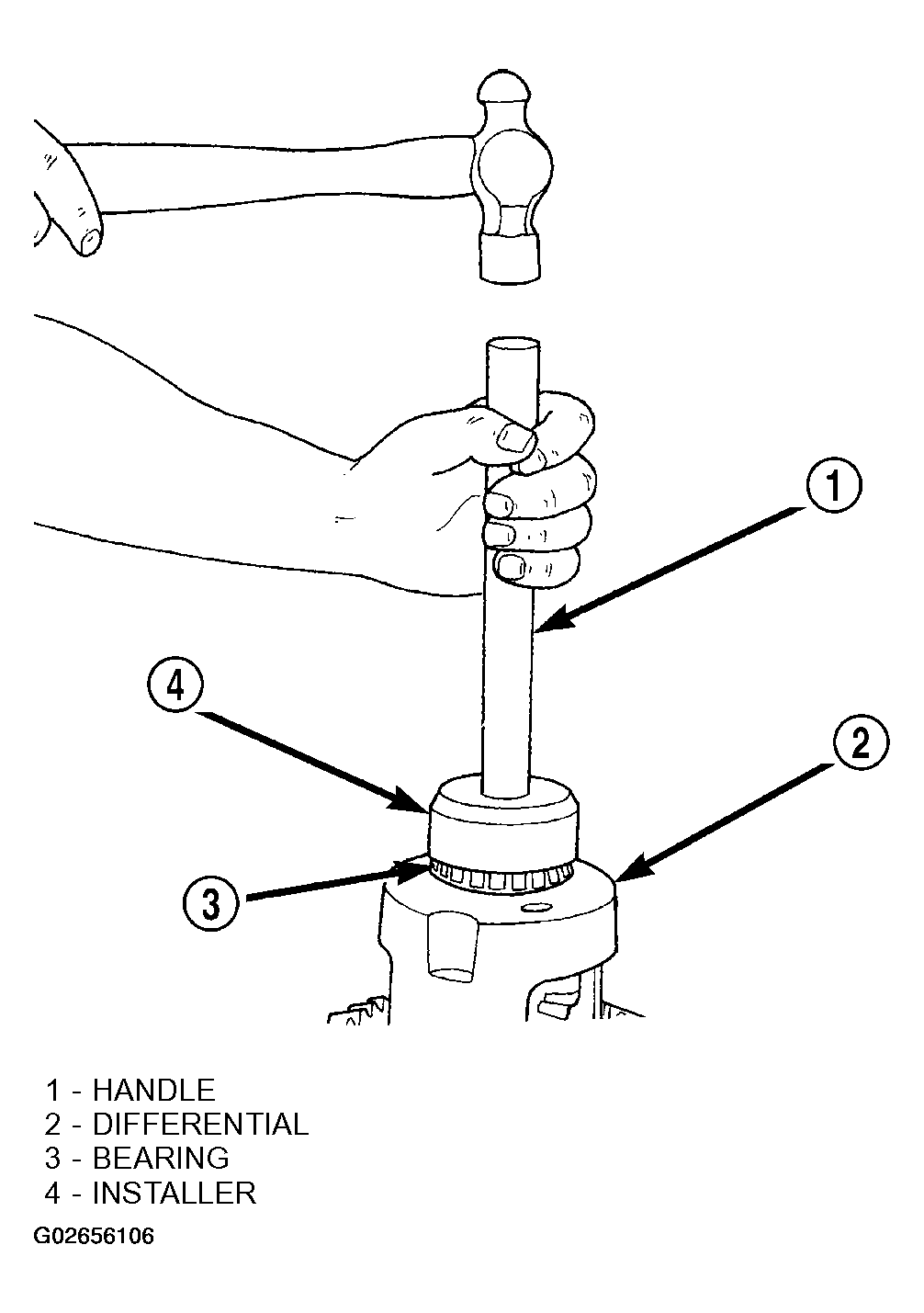

    Fig 1: Differential Case Bearings
    G02656106Courtesy of DAIMLERCHRYSLER CORP.
  2. Install differential in axle housing.
