Axle Shafts: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place transmission in neutral.
  2. Raise and support vehicle.
  3. Remove half shaft from vehicle.
  4. Remove skid plate, if equipped.
  5. Clean axle seal area.
  6. Remove snap ring from the axle shaft.
  7. Remove axle with Remove 8420A and Slide Hammer C-3752 (Fig 1 ).

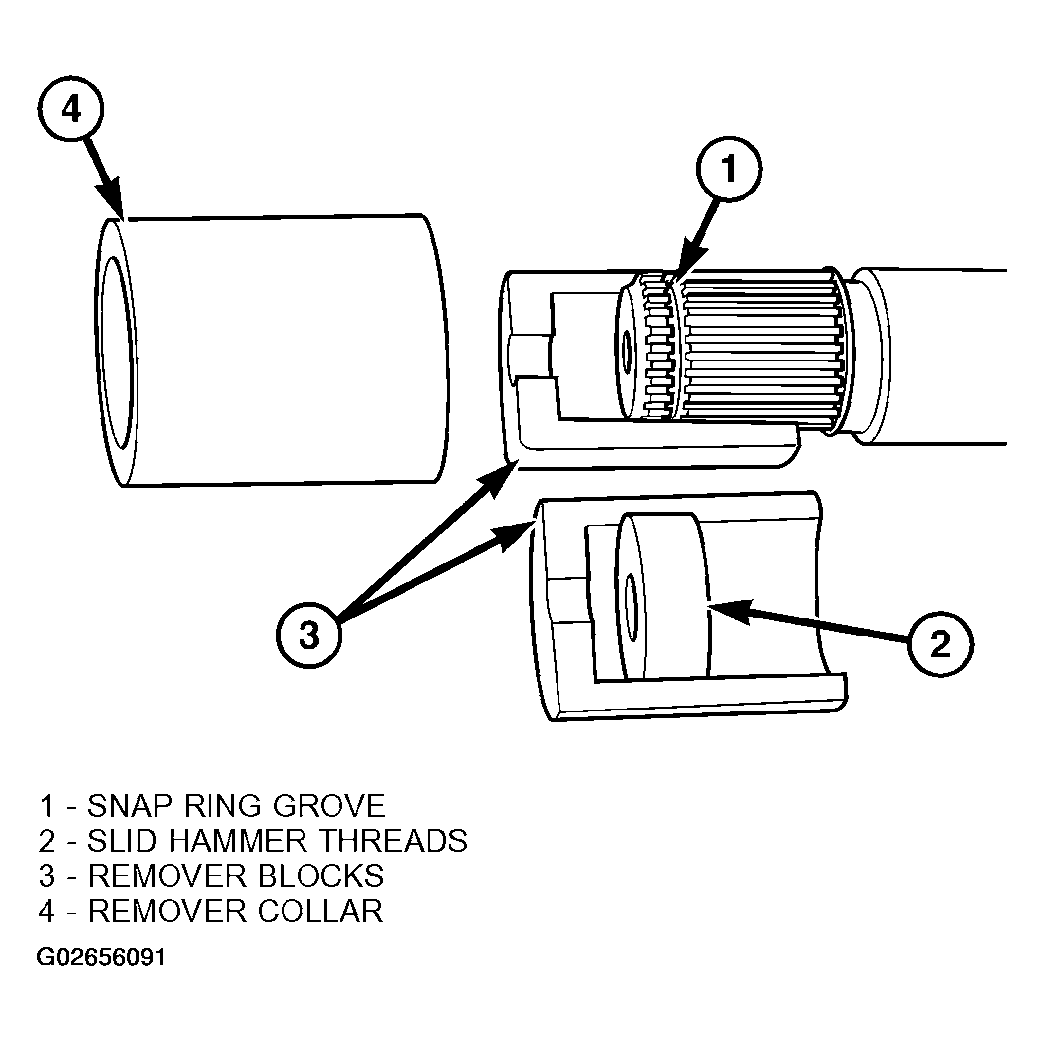

    Fig 1: Axle Shaft Puller
    G02656091Courtesy of DAIMLERCHRYSLER CORP.
