Axle Bearings/Bushing: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove half shaft from vehicle.
  2. Remove skid plate, if equipped.
  3. Clean axle seal area.
  4. Remove axle shaft O-ring.
  5. Remove axle shaft.
  6. Remove axle shaft seal.
  7. Install axle shaft bearing Remover C-4660-A in the bearing (Fig 1 ). Then tighten the nut to spread the remover in the bearing.

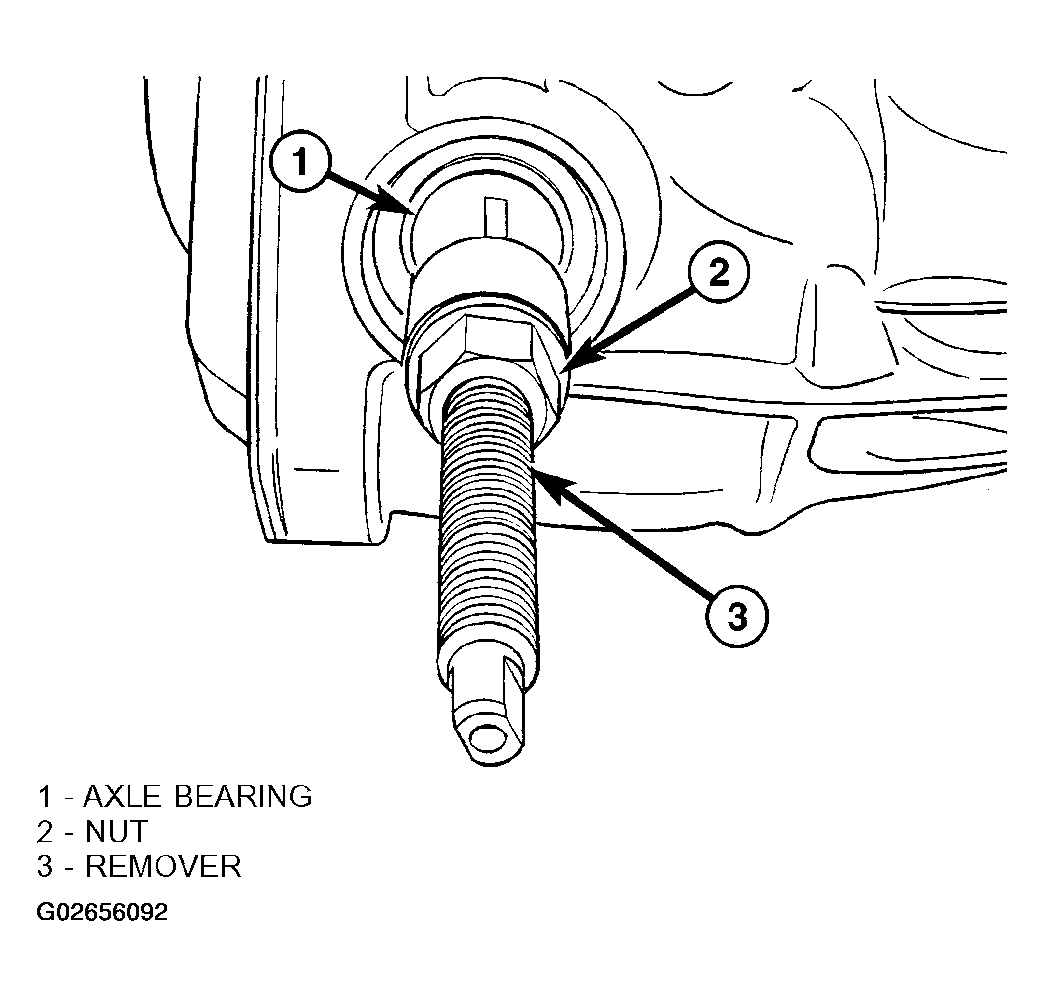

    Fig 1: Bearing Remover
    G02656092Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the bearing remove cup, bearing and nut (Fig 2 ). Then tighten the nut to draw the bearing out.

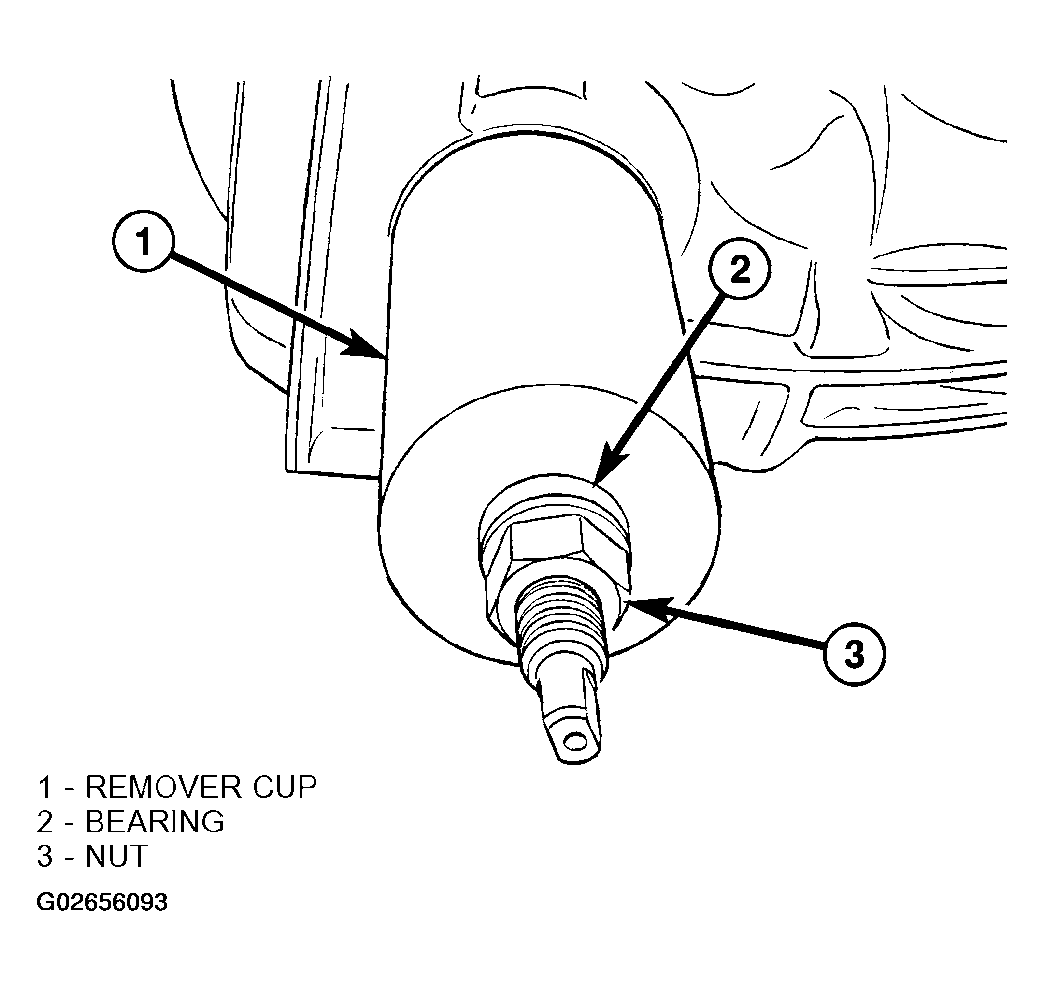

    Fig 2: Bearing Remover Cup
    G02656093Courtesy of DAIMLERCHRYSLER CORP.
  9. Inspect the axle shaft tube bore for roughness and burrs. Remove as necessary.
