Axle Bearings/Bushing: Installation

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Wipe the axle shaft tube bore clean.
  2. Install axle shaft bearing with Installer 5063 and Handle C-4171 (Fig 1 ).

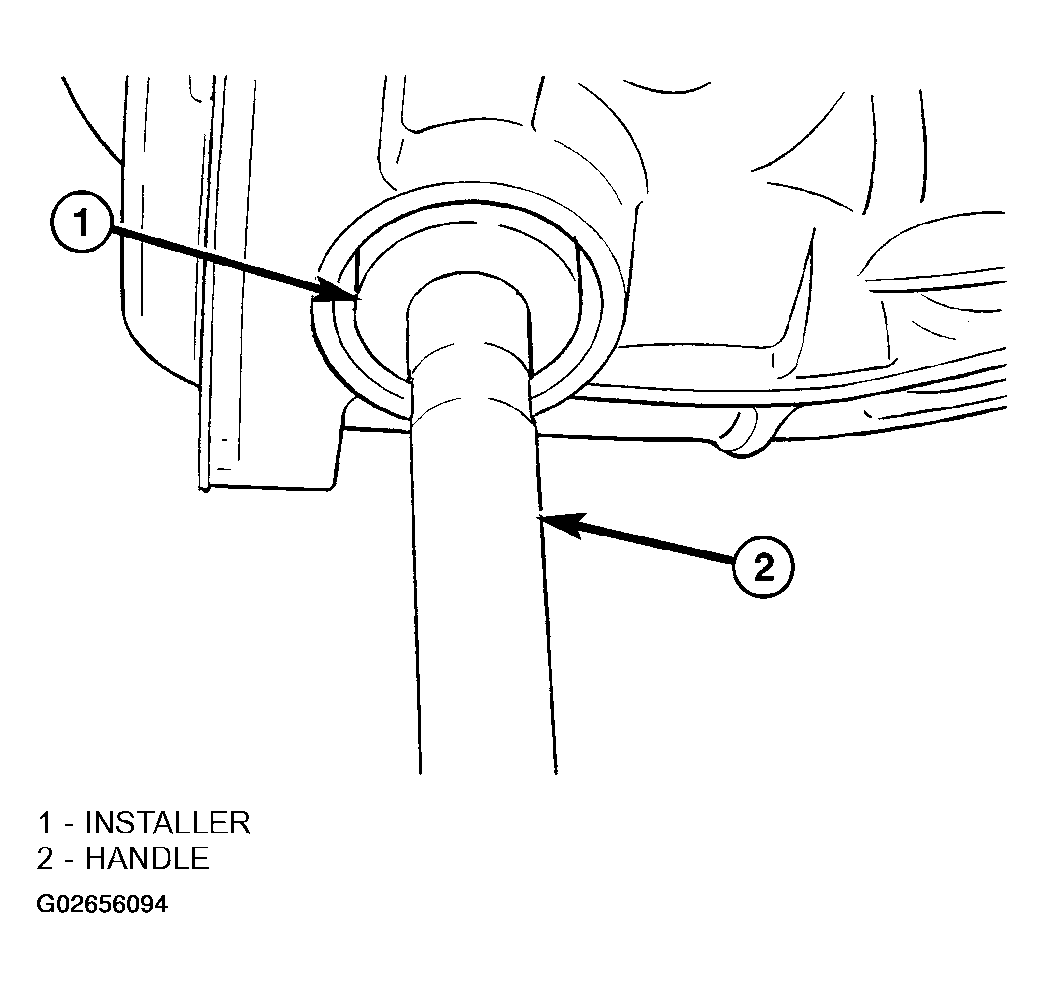

    Fig 1: Bearing Installer
    G02656094Courtesy of DAIMLERCHRYSLER CORP.
  3. Install a new  axle shaft seal with Installer 8402 and Handle C-4171.
  4. Install the axle shaft and half shaft.
