Two-Piece Propeller Shaft

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The procedure to measure the propeller shaft angles involved with a two-piece (Fig 1 ) propeller shaft is the same as those for a one-piece propeller shaft.

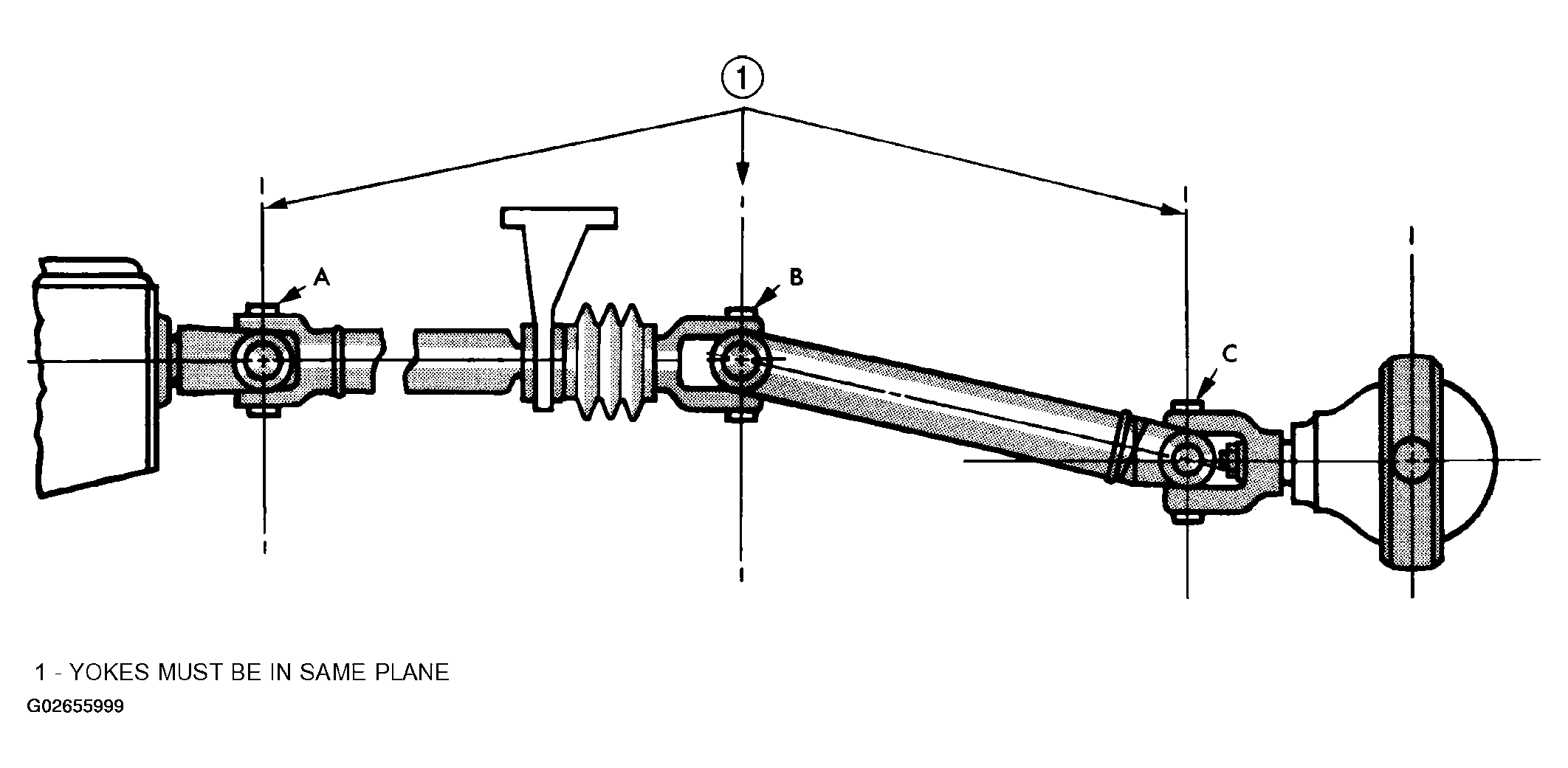

Fig 1: Universal Joint Angle Two-Piece Shaft
G02655999Courtesy of DAIMLERCHRYSLER CORP.
