Propeller Shaft-Front: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position transmission and transfer case to their neutral positions. Raise and support vehicle. Remove skid plate, if equipped.
  2. Mark a line across the transfer case flange and C/V for installation reference.
  3. Mark a line across the propeller shaft flange yoke and front axle companion flange (Fig 1 ) for installation reference.

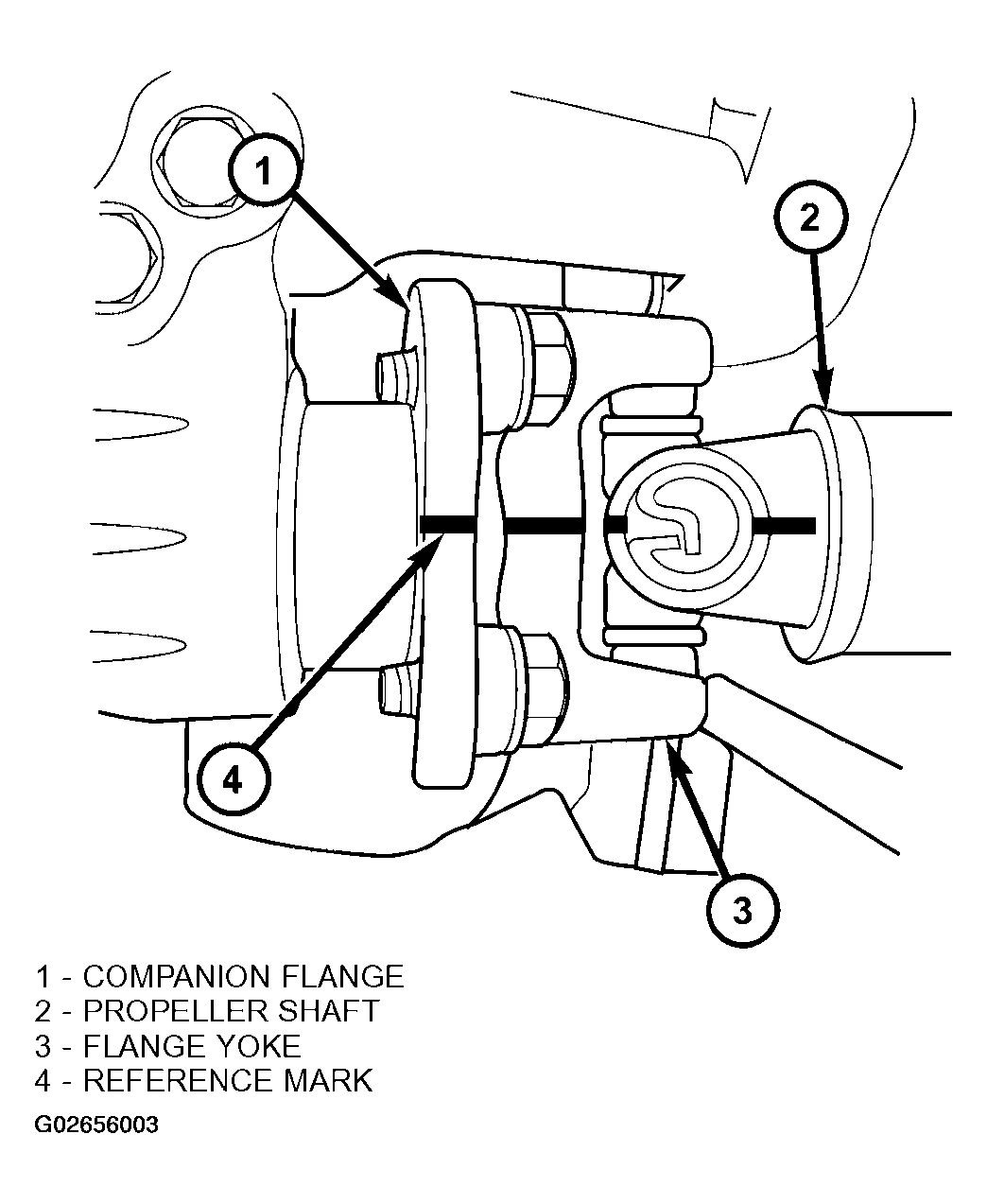

    Fig 1: Identifying Companion Flange Components (Propeller Shaft Front)
    G02656003Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove companion flange bolts Fig 2 ).

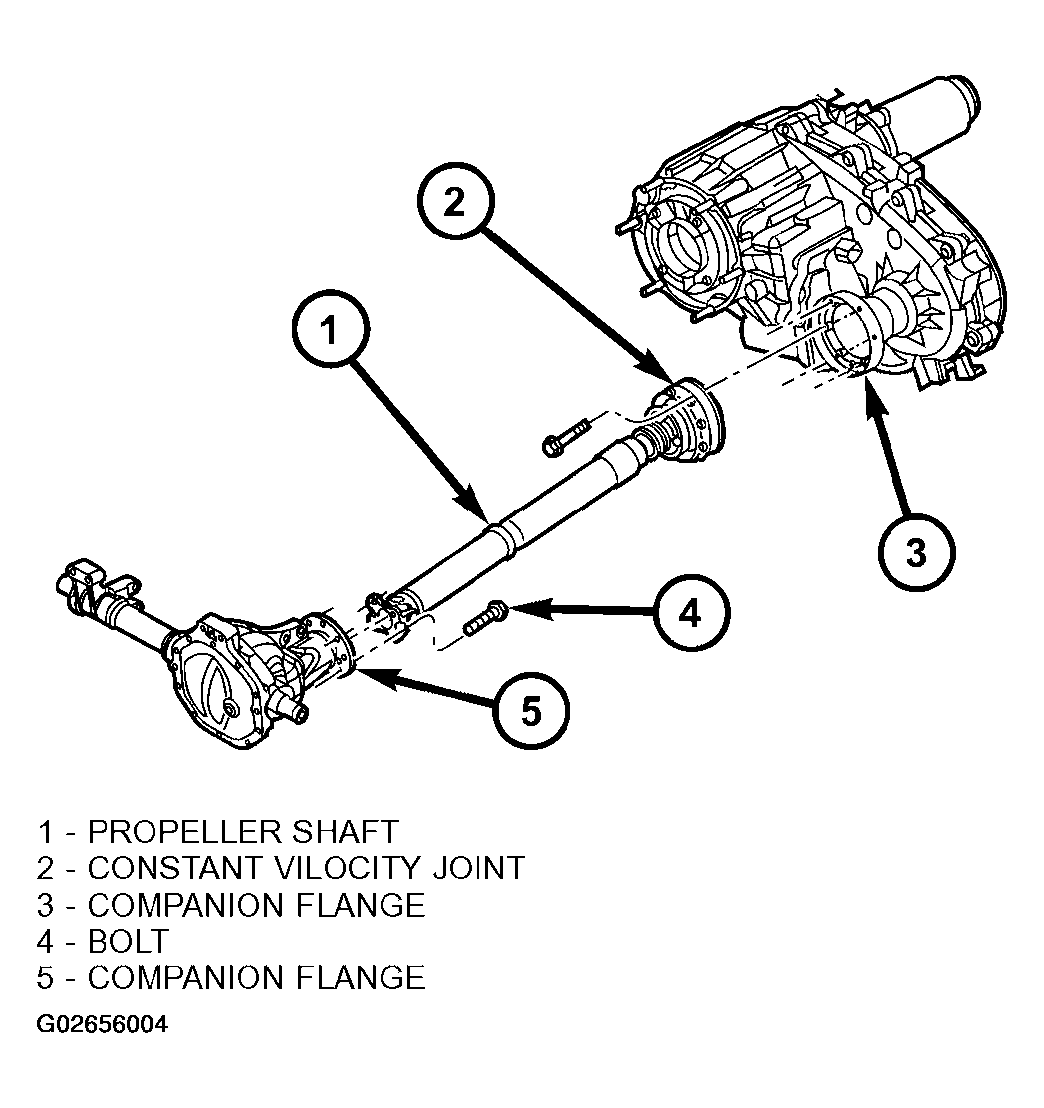

    Fig 2: Installing Front Propeller Shaft
    G02656004Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove transfer case flange bolts and remove propeller shaft.
