Component Locations

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
RESTRAINT SYSTEM COMPONENT LOCATIONS

Component (1)Location
Air bag control module Floor panel transmission tunnel, beneath instrument panel
Clockspring On steering column, behind steering wheel
Data link connector Under left side of instrument panel, near steering column
Driver-side air bag module Front face of steering wheel
Passenger-side air bag module Right side of instrument panel, above glove box
Passenger-side air bag on-off switch(2) Near center of instrument panel
Seat belt pretensioners Integral with front seat belt retractors
(1) See Fig 1, Fig 2
(2) 2 door models only.

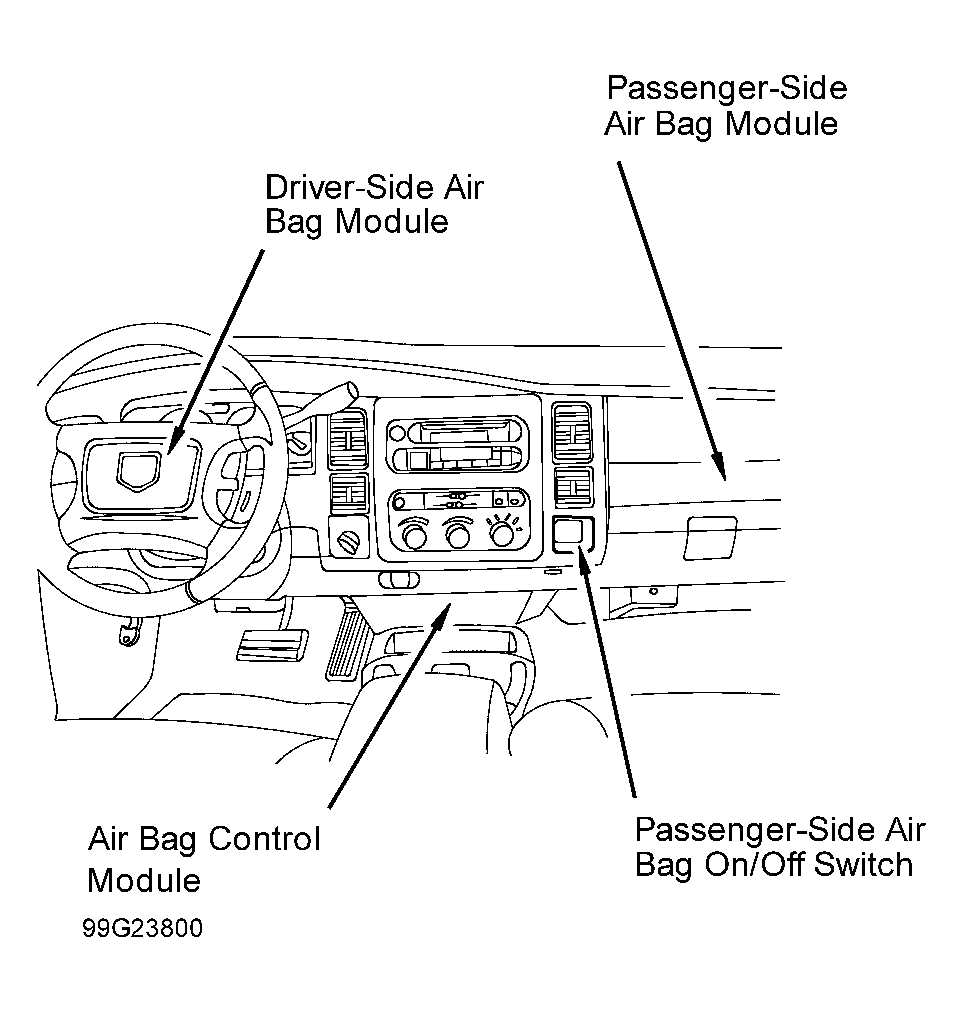

Fig 1: Locating Restraint System Components (1 Of 3)
G99G23800Courtesy of DAIMLERCHRYSLER CORP.

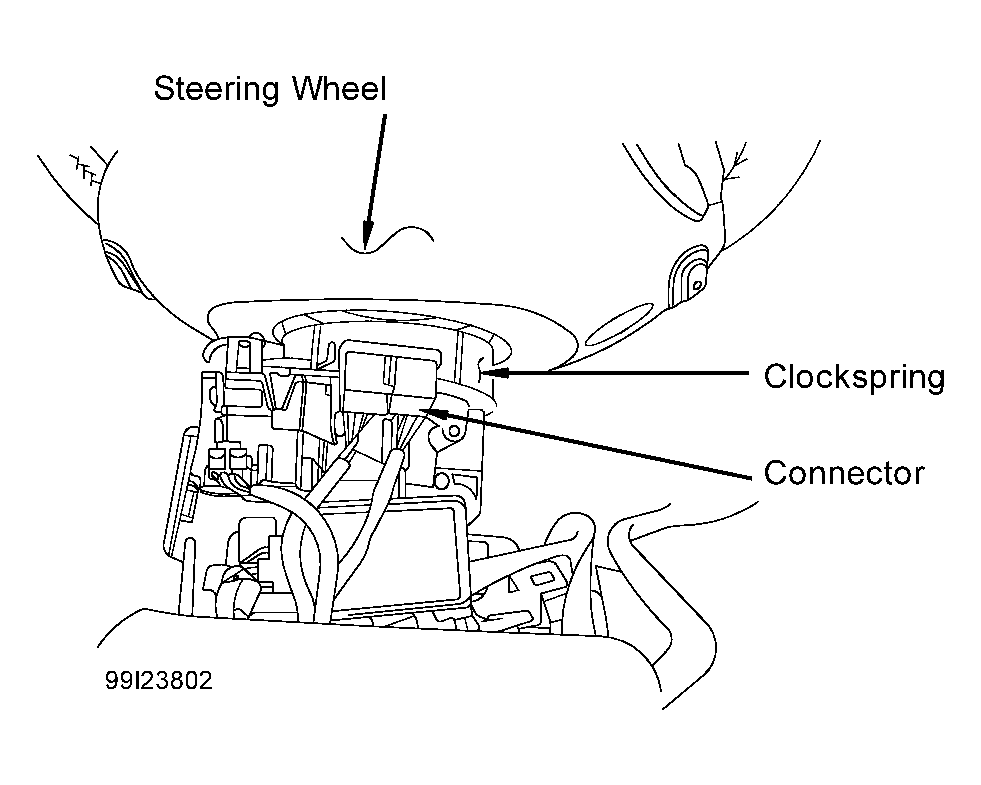

Fig 2: Locating Restraint System Components (2 Of 3)
G99I23802Courtesy of DAIMLERCHRYSLER CORP.

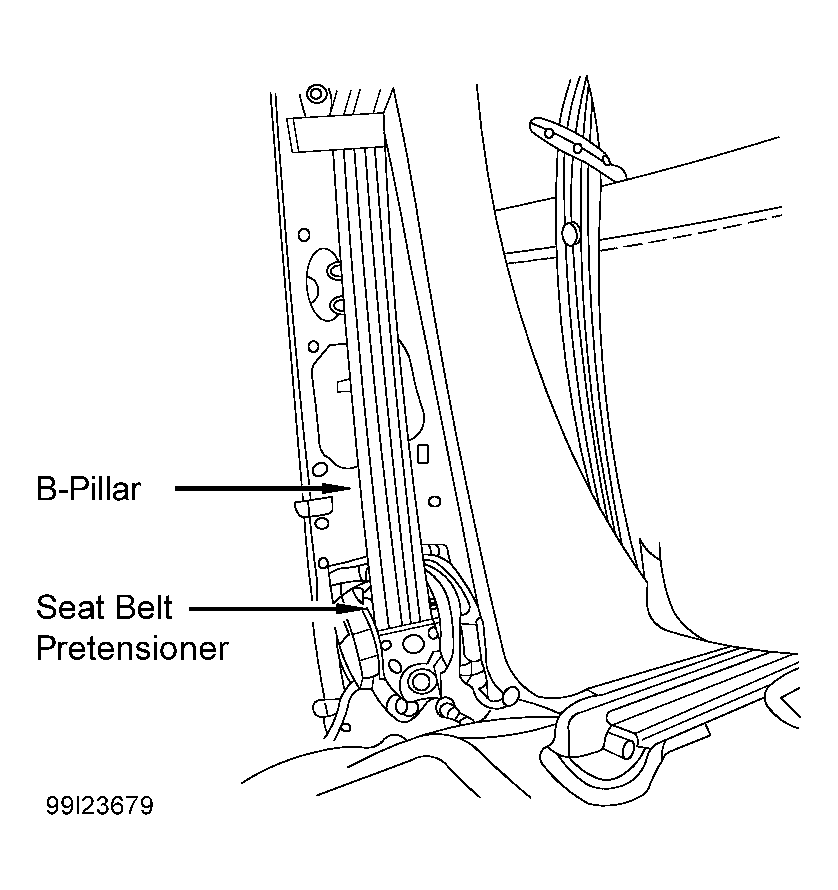

Fig 3: Locating Restraint System Components (3 Of 3)
G99I23679Courtesy of DAIMLERCHRYSLER CORP.
