Section 30 (Specifications & Procedures): Description: Toe
WARNING: This page is about a different car, the 2004 Dodge Dakota, 2003 Dodge Dakota, and 2002 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

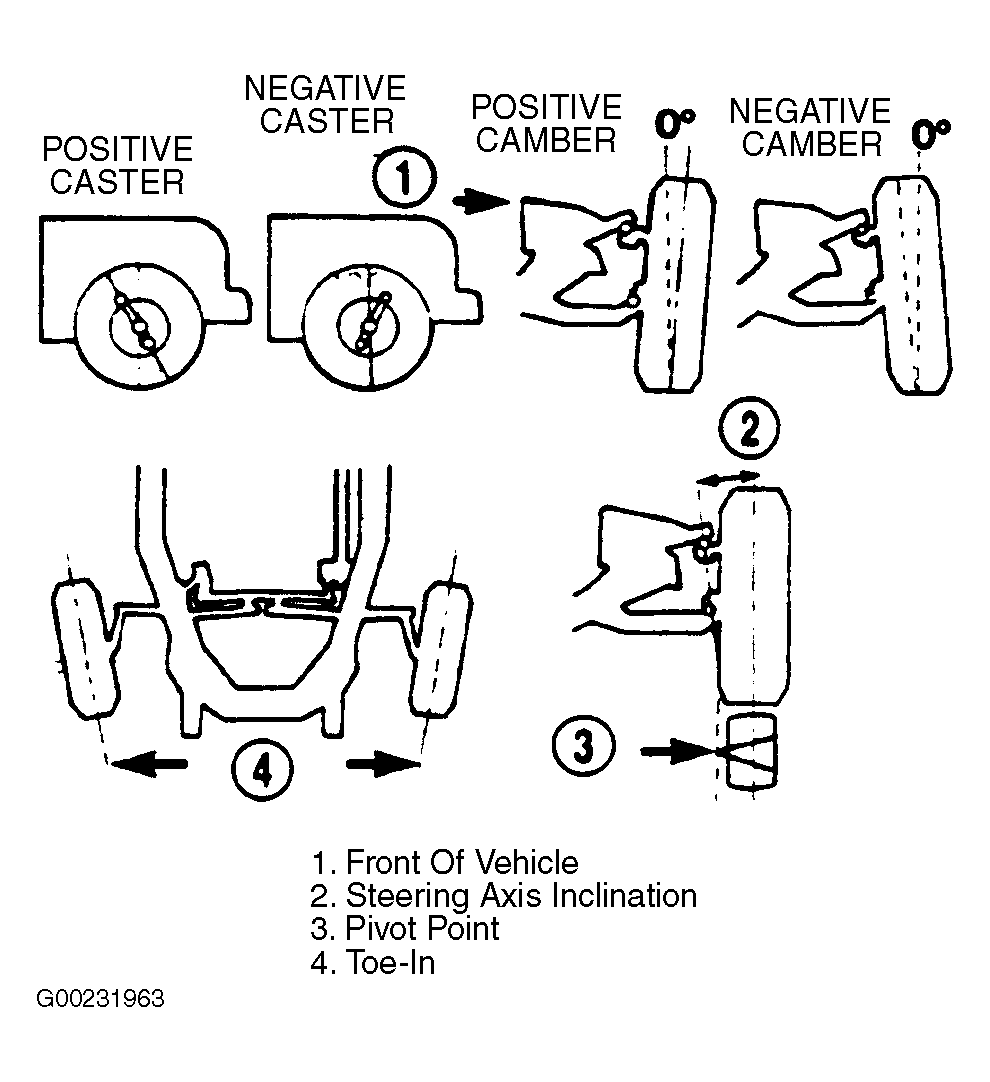

Toe is inward or outward angle of wheels as viewed from above vehicle. See Figure .
- Toe-in is produced when front edges of wheels on same axle are closer together than rear edges.
- Toe-out is produced when front edges of wheels on same axle are farther apart than rear edges.
- Toe-in and toe-out can occur at front wheels and rear wheels. Toe is measured in degrees or inches. The measurement identifies amount that front of wheels point inward (toe-in) or outward (toe-out). Toe is measured at spindle height. Zero toe means front and rear edges of wheels on same axle are equally distant.
