Starter Motor Relay: Installation
WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

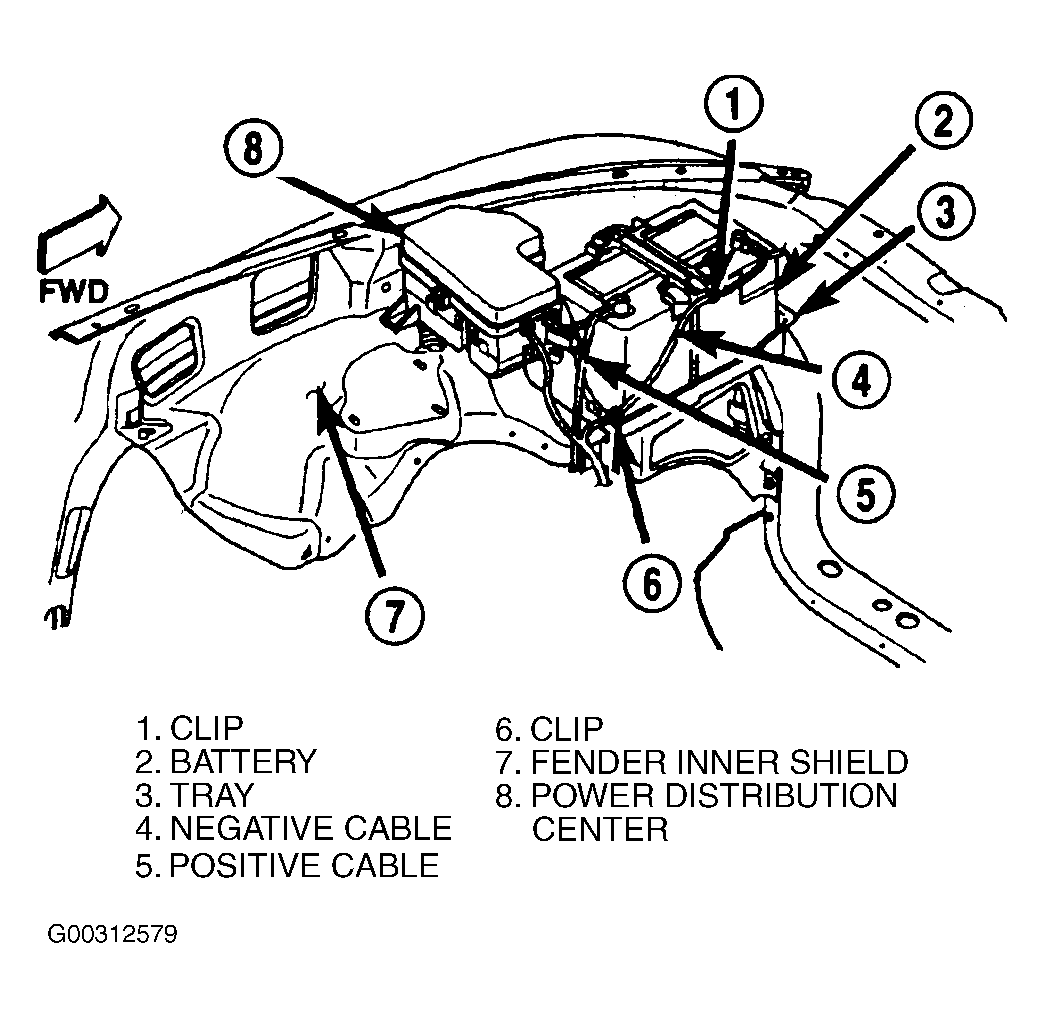

- See fuse and relay layout label affixed to underside of PDC cover for proper starter relay location.
- Position starter relay in proper receptacle in PDC.
- Align starter relay terminals with terminal cavities in PDC receptacle.
- Push down firmly on starter relay until terminals are fully seated in terminal cavities in PDC receptacle.
- Install cover onto PDC.
- Reconnect negative battery cable.
