Starter Solenoid

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

This test can only be performed with starter motor removed from vehicle.

Remove starter motor from vehicle. See STARTER under REMOVAL & INSTALLATION.
Disconnect wire from solenoid field coil terminal.
Check for continuity between solenoid terminal and solenoid field coil terminal with continuity tester. See Fig 1 and Fig 2 . There should be continuity. If OK, go to next step. If not OK, replace faulty starter motor assembly.

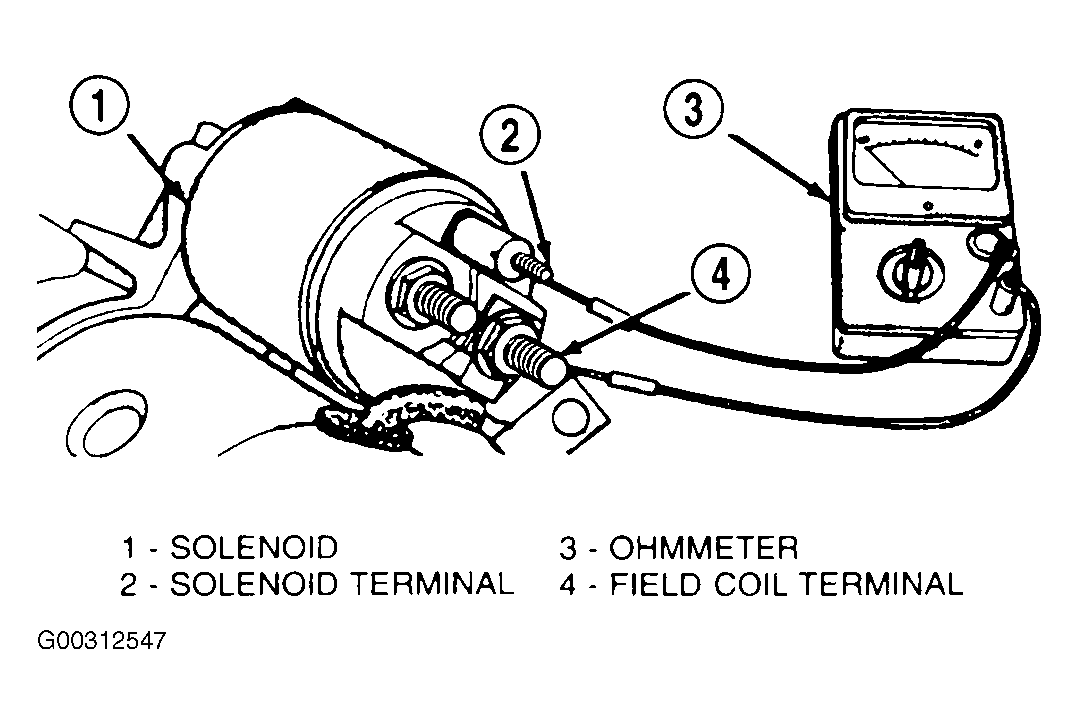

Fig 1: Solenoid Continuity Test (1 of 4)
Courtesy of CHRYSLER CORP.

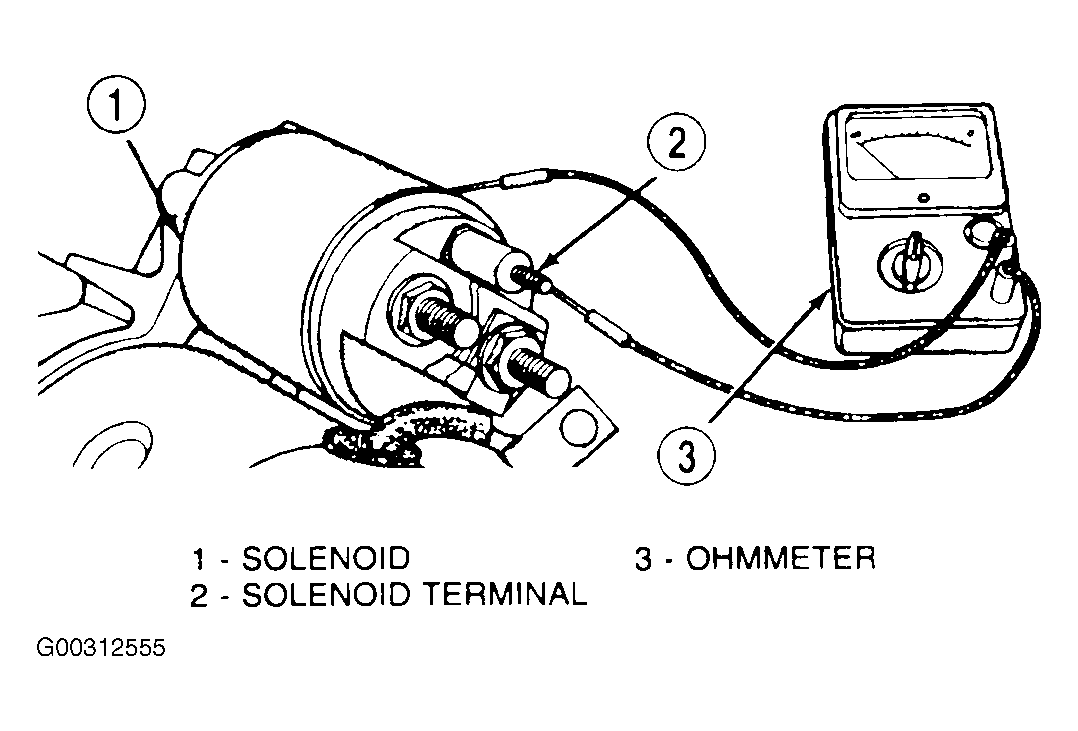

Fig 2: Solenoid Continuity Test (2 of 4)
Courtesy of CHRYSLER CORP.
Check for continuity between solenoid terminal and solenoid case. See Fig 3 and Fig 4 . There should be continuity. If not OK, replace faulty starter motor assembly.

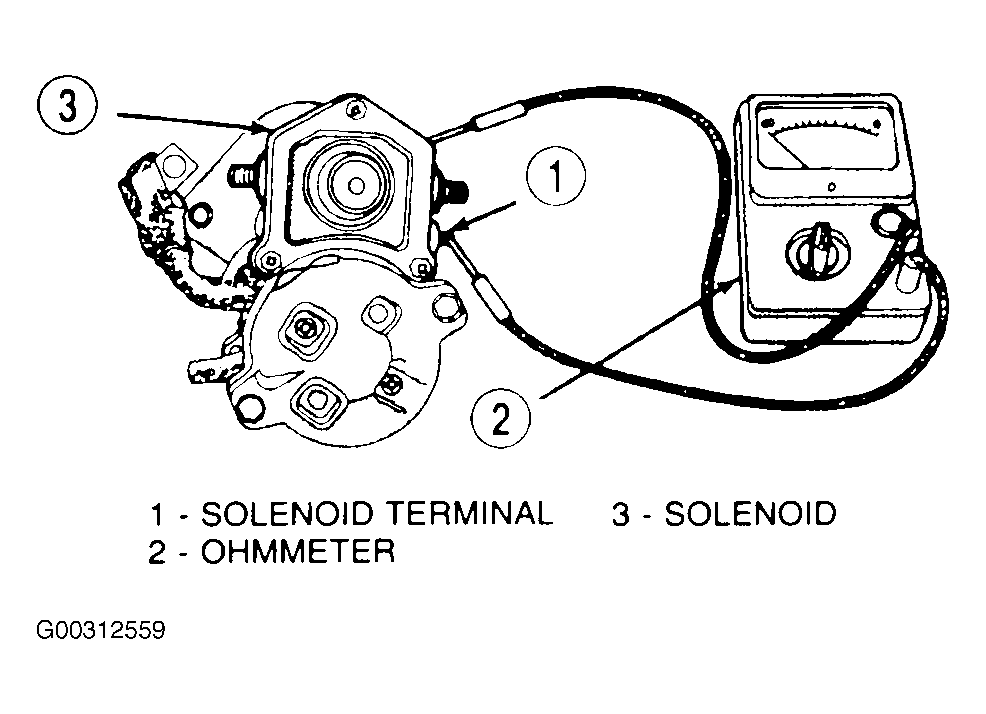

Fig 3: Solenoid Continuity Test (3 of 4)

Courtesy of CHRYSLER CORP.

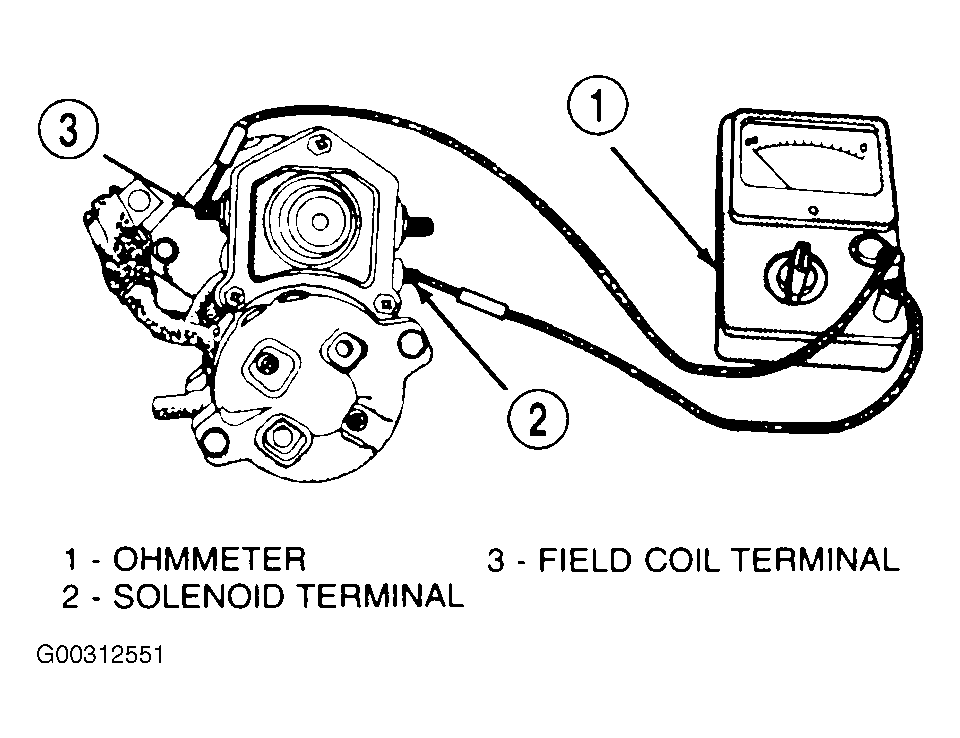

Fig 4: Solenoid Continuity Test (4 of 4)

Courtesy of CHRYSLER CORP.
