Power Brake Booster: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Remove master cylinder and reservoir. See MASTER CYLINDER .
Disconnect vacuum lines at booster.
Remove clip securing booster push rod to brake pedal. See Fig 1.
Remove nuts from booster mounting studs. See Fig 2.
Remove booster, spacer, and gaskets from front cowl panel.

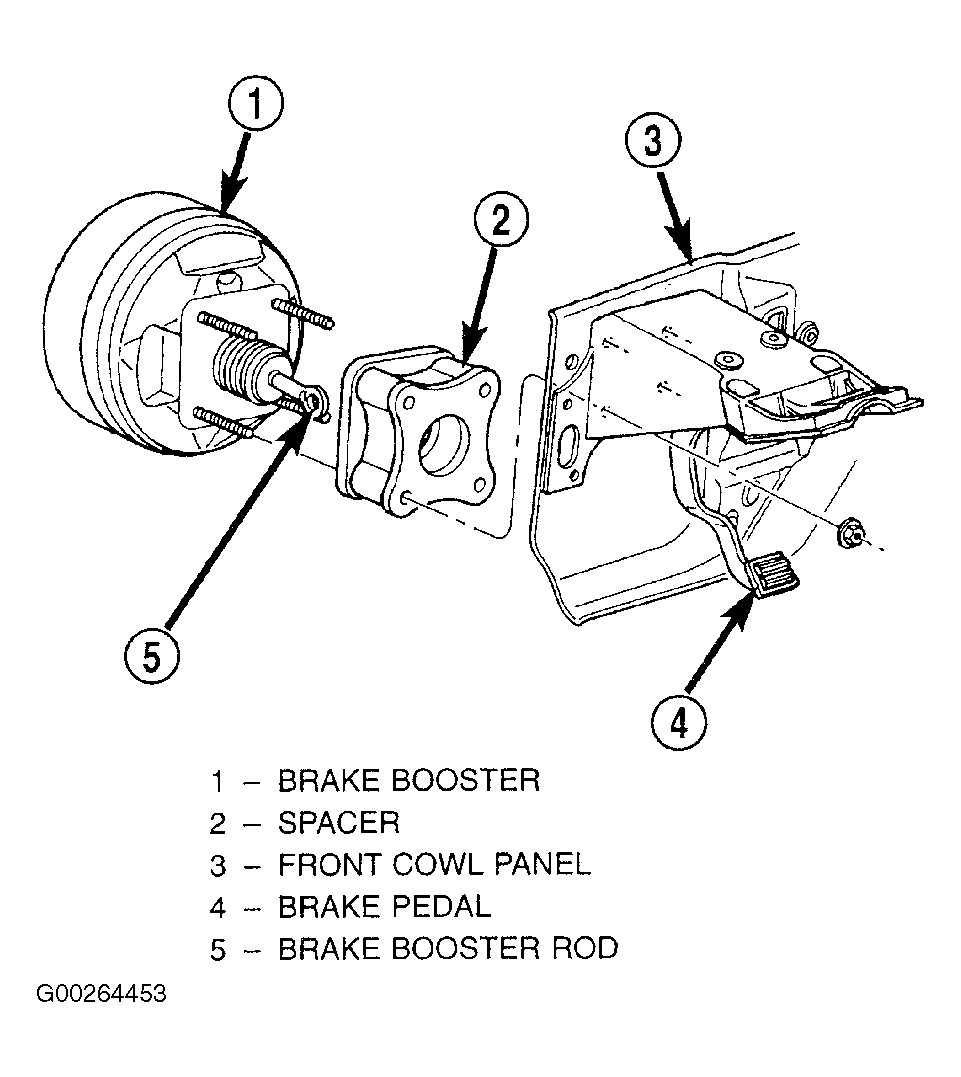

Fig 1: Removing & Installing Power Brake Booster (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Removing & Installing Power Brake Booster (2 Of 2)

Courtesy of CHRYSLER CORP.
