Parking Brake Pedal Assembly: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left side kick panel.
  2. Remove brake release rod from pedal assembly. See Fig 1.
  3. Disconnect brake warning lamp switch.
  4. Remove front parking brake cable. See PARKING BRAKE CABLES (FRONT) .
  5. Remove mounting nuts and mounting bolt.
  6. Slide assembly rearward off the mounting studs. See Fig 1.

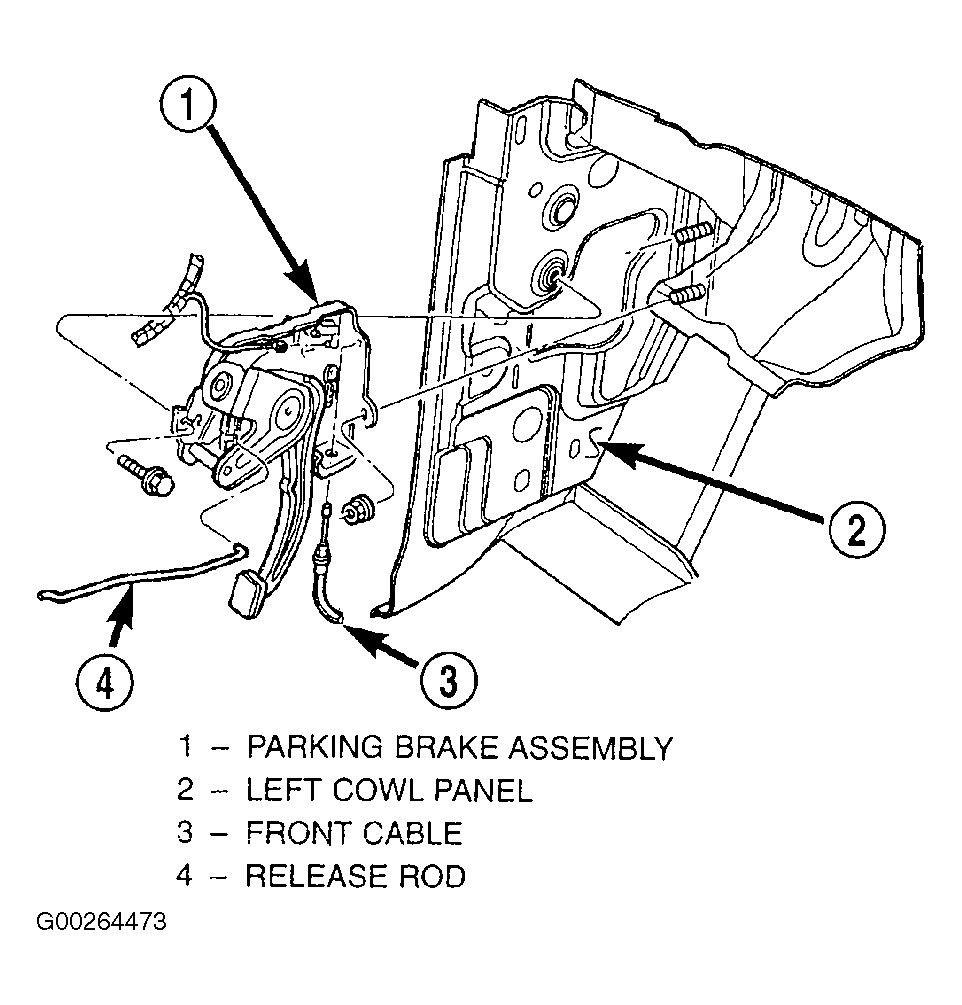

Fig 1: Removing & Installing Parking Brake Assembly
G00264473Courtesy of CHRYSLER CORP.
