Master Cylinder: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove brake lines from the master cylinder. See Fig 1.
  2. Remove mounting nuts from the master cylinder. See Fig 1.
  3. Remove master cylinder.

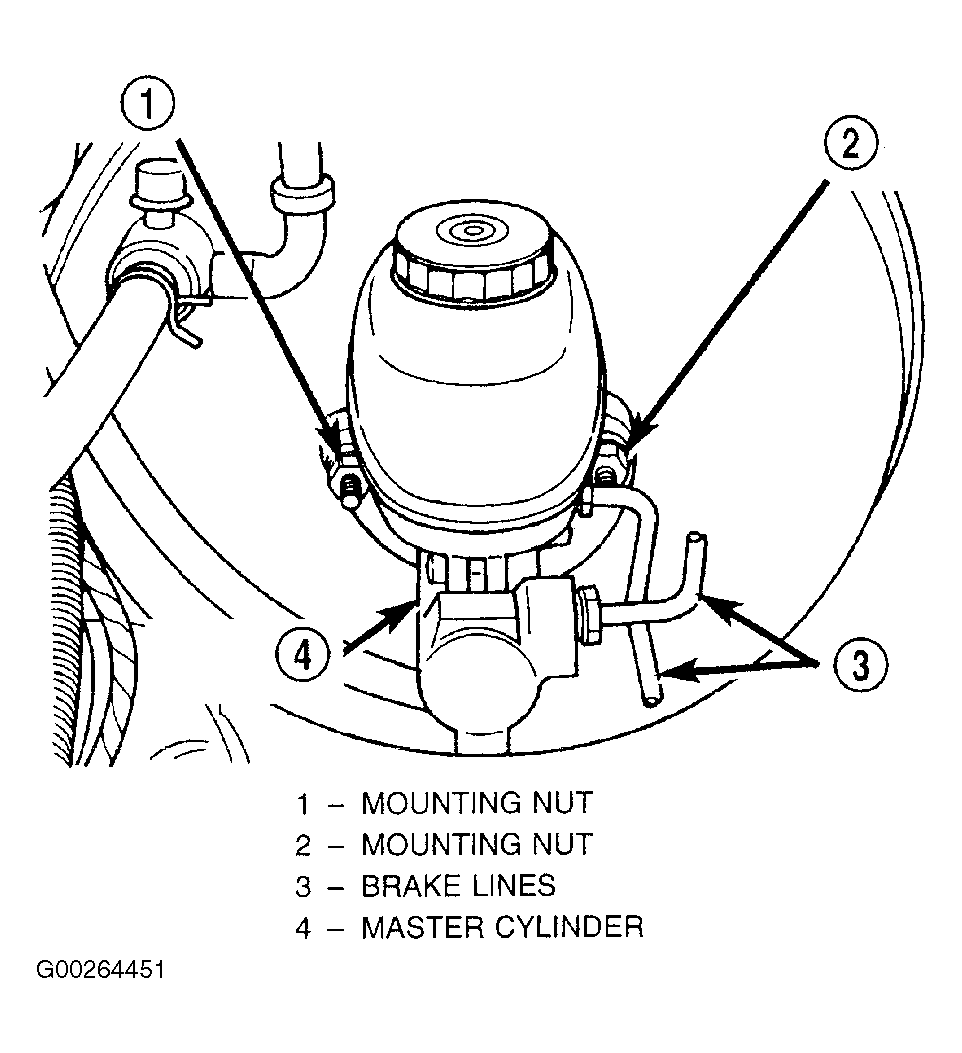

Fig 1: Removing & Installing Master Cylinder & Reservoir
G00264451Courtesy of CHRYSLER CORP.
