Removal (Front)
WARNING: This page is about a different car, the 2004 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Clean master reservoir and filler caps.
- Remove reservoir filler cap. Use clean suction gun or similar device to drain approximately 1/4 of fluid from the reservoir.
- Raise and support vehicle.
- Remove front wheel and tire assemblies.
- Bottom caliper pistons in bores with large C-clamp. Position clamp frame on rear of caliper and clamp screw on outboard brake shoe.

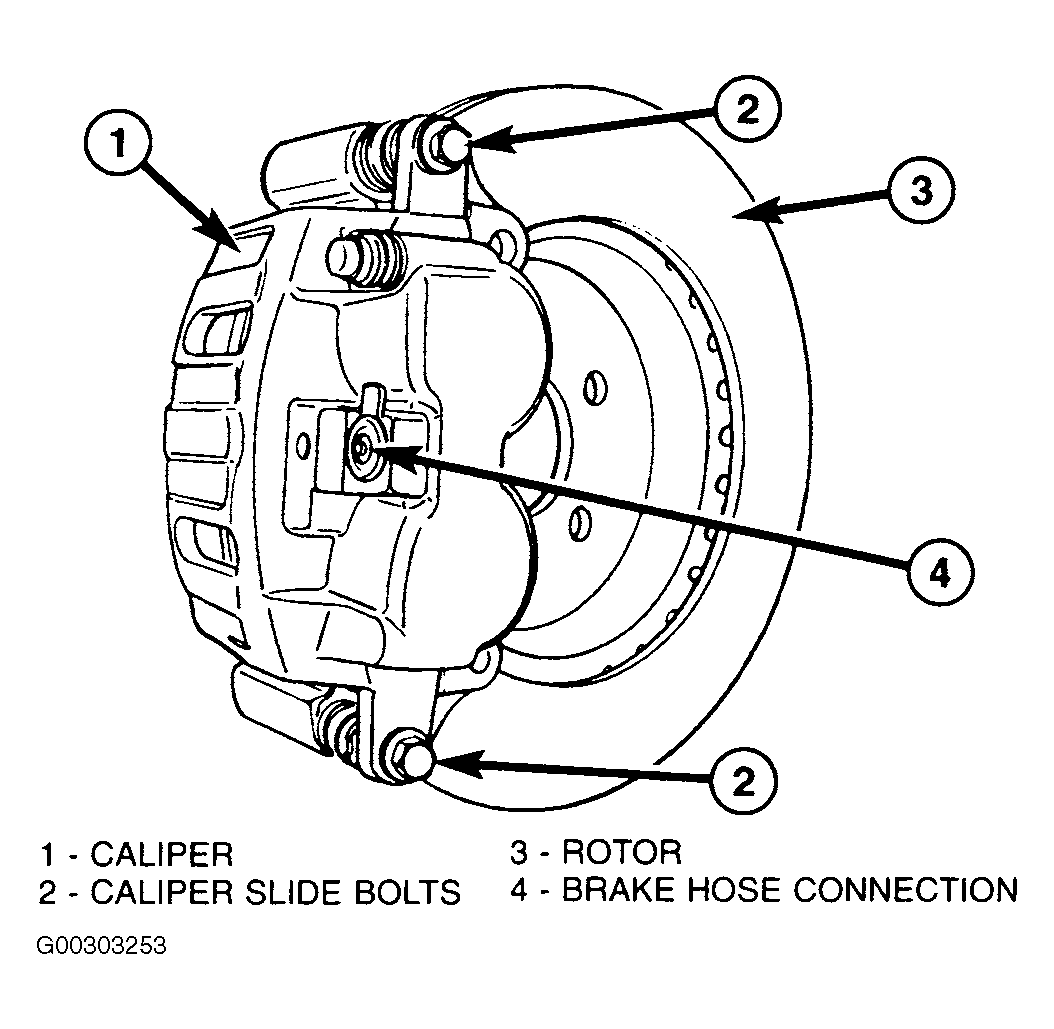

- Disconnect brake hose at caliper. Discard hose fitting washers if worn, or damaged. See Fig 1.
- Remove the caliper slide pin bolts from the caliper adapter.
- Remove caliper and brake shoes from caliper. See DISC BRAKE SHOES .
